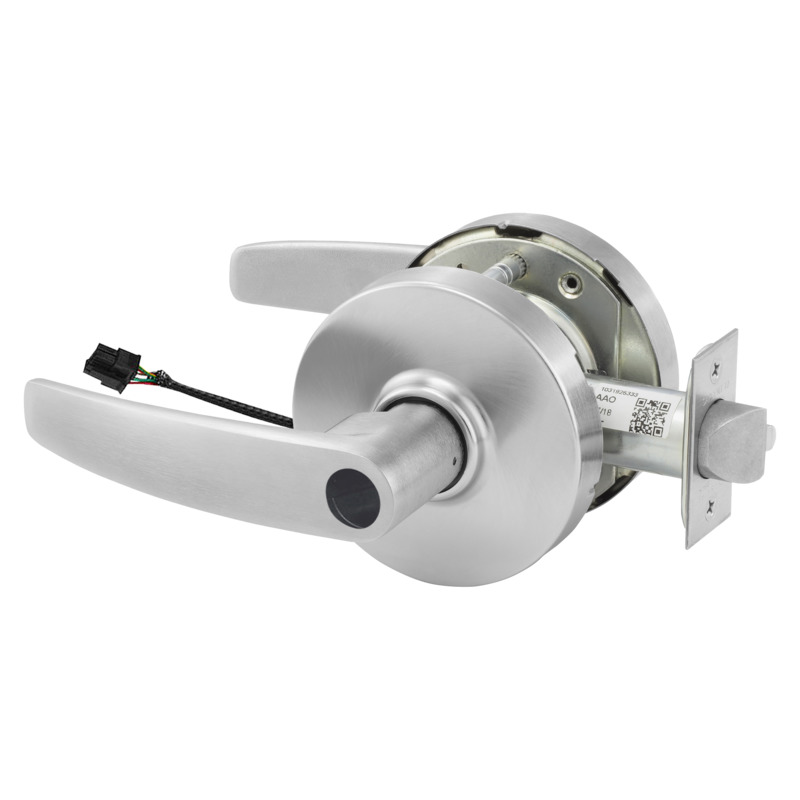

Sargent LC10XG71LB26D Electromechanical Field Selectable Fail Safe / Fail Secure 12 / 24 Volt DC Cylindrical Lever Lock is engineered for robust security and reliability in various commercial applications. This Grade 1 lockset features a sleek satin chrome finish, enhancing both aesthetics and durability. The B Lever design, along with the L Rose and ASA Strike, ensures a modern look while providing functionality. This electromechanical lock withstands an impressive 1,600 lbs offset lever pull, exceeding ANSI/BHMA A156.2 requirements. It guarantees latch retraction with a 100 lb preload, making it suitable for warped doors or those experiencing latch bind. The LC10XG71LB26D also prohibits entry after enduring over 100 vertical impacts, demonstrating exceptional resilience. Designed with a 2-3/4" backset and a crossbore size of 2-1/8", this cylindrical lockset fits door thicknesses ranging from 1-3/4" to 2". Its UL Cycle rating of 20 million cycles ensures long-lasting performance, backed by a 7-year limited warranty. The 1-1/8" x 2-1/4" latch faceplate dimension and 4-7/8" strike with a 1-1/4" lip make installation straightforward. Choose the Sargent LC10XG71LB26D for superior security solutions tailored to meet the demands of modern buildings.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Amp Draw: 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Backset: 2-3/4" Backset
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Less Cylinder
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Electromechanical Fail Secure
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: B Lever
Leverknob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Operating Voltage: 12 or 24 VAC/DC
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Number: Oct-00
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Electric Cylindrical Lock
Type: Electric Locks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
