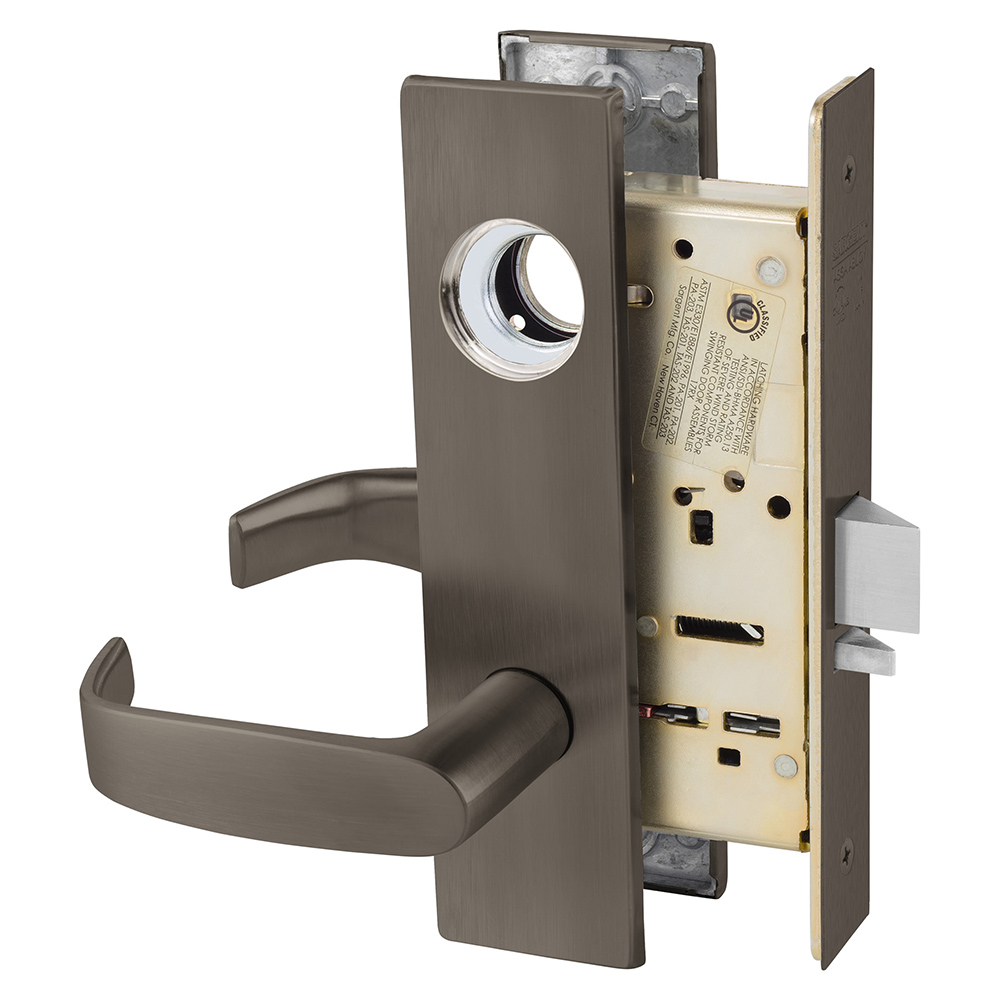

Sargent LC-8205 LW1L 10BE Manufacturing Mortise Lock

Images may not represent actual product and finish

Sargent LC-8205 LW1L 10BE Manufacturing Mortise Lock

Your Price: $823.13

Retail Price:$1,317.0000

Your Savings:$493.87(37%)

Grade 1 Office or Entry Mortise Lock, L - Lever, LW1 - Escutcheon, Field Reversible, Less Cylinder, ASA Strike, Dark Oxidized Bronze

Part Number

: SAR_LC8205LW1L10BE

Availability: 12 In stock

Quantity

Description

Sargent LC-8205 LW1L 10BE Manufacturing Mortise Lock

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability

Backset: 2-3/4" (70mm) only
Front adjustable at any angle from flat to beveled 1/8" (3mm) in 2" (51mm)
Hubs for Knobs/Levers
7800: Sintered iron copper infiltrated
8200: Cold forged steel
R8200: Investment cast steel
Auxiliary Deadlatch: - Stainless steel and non-handed
Specify hand on order; - Easily field reversible (if no hand is specified RH will be provided)
Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)
Keys: Two, nickel silver (control key or emergency key must be ordered when required)
Cylinder: Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")) size #60 for LFIC and size #70 for SFIC.
Can Be Master keyed Or Grand Master keyed:
Construction keying available. LA standard keyway.
Stile: 4-1/2" (114mm) minimum stile for 7800/8200/R8200, 4-3/4" (121mm) minimum stile for electrical function locks.
Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template.
Thumbturn: Specify LB for ADA extra large thumbturn.
Warranty: 10 year limited warranty
2 year limited warranty on electrified locks.
Warranty limited to replacement of lock body and/or components.

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: LC-8205LW1L10BE, LC8205LW1L10BE

Baa Qualified: Yes

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Country of Origin: Usa

Door Application: Cylindrical Levers

Finish: 613E/US10BE

Finish Code: 10BE

Finish Description: Dark Oxidized Bronze

Fire Rated: 2 Hours {B}

Grade: Grade 1

Handing: Right Handed

Limited Warranty: 10 Years

Series: 8200 Line Lever Mortise Locks

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
