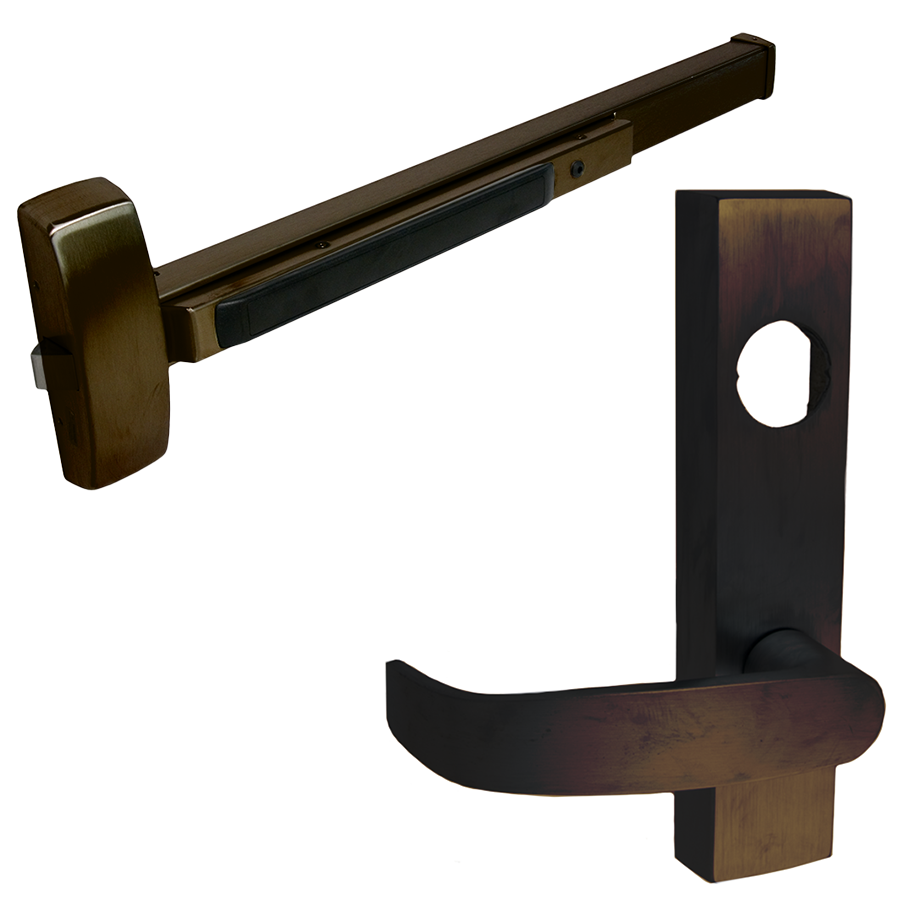

Sargent LC-8804F-ETL-10BE LHR KIT 8800 Series Rim Exit Device, Nightlatch Lever Trim, Grade 1, LHR, 613E/US10BE

Sargent LC-8804F-ETL-10BE LHR KIT is a robust exit device designed for superior security in commercial environments. Part of the 8800 Series, this rim exit device features a nightlatch lever trim which allows for key-retracted latchbolt operation, ensuring ease of access while maintaining rigorous safety standards. Crafted from high-quality materials, it exceeds ANSI/BHMA Grade 1 requirements for both cycle and strength, making it an ideal solution for high-traffic areas. This device is configured for left-hand reverse applications and comes in a stunning dark oxidized satin bronze finish (10BE/613E), enhancing both durability and aesthetics. It fits standard width stiles on metal doors with a minimum thickness of 1-3/4 inches, presenting a versatile option for various installations, including single or double door setups with mullions. The LC-8804F-ETL is designed for quiet operation, ensuring minimal disturbance in busy environments. It also supports a range of electric options, including alarmed exit and remote latch retraction, catering to unique security needs. With features like hex key dogging and stainless steel latch bolts, this exit device promises reliability and ease of maintenance, making it a trusted choice for any facility seeking top-tier security solutions.

KIT - 8800 Series Rim Exit Device, Nightlatch Lever Trim (Key Retracts Latchbolt Lever Rigid), Escutcheon with L Lever, Keyed Trim, Less Rim Cylinder, 36in, Grade 1, LHR Left Hand Reverse, 613E/US10BE Dark Oxidized Bronze

The 80 series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications – including delayed egress, alarmed exit and electric latch retraction – making this the go-to product for your building.

Features:

• Designed for standard width stile applications on wood and metal doors
• Also available as an HC8800 or WS8800 for hurricane-resistant applications
• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) Listed

Functions:

• 04: Night latch, key retracts latch #34 cylinder supplied. ANSI 03
• 06: Key unlocks trim, trim retracts latch/trim relocks when key is removed #41 cylinder supplied. ANSI 09
• 10: No outside operation (no cylinder). ANSI 01
• 10: No outside operation (no cylinder) ET control is used as pull only. ANSI 02
• 13: Key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 15: Passage only (no cylinder). ANSI 14
• 16: Key outside retracts latch; key inside unlocks/locks O/S trim, O/S #34 cylinder & I/S #44 cylinder supplied. ANSI 10
• 40: Freewheeling trim - no outside operation (no cylinder) dummy trim. ANSI 02
• 43: Freewheeling trim - key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 44: Freewheeling trim - key retracts latch, #34 cylinder supplied. ANSI 03
• 46: Freewheeling trim - Key unlocks trim, trim retracts latch/relocks when key is removed #41 cylinder supplied. ANSI 09
• 73: Electrified ET trim - fail safe power off, unlocks lever (no cylinder)
• 74: Electrified ET trim - fail secure power off, locks lever (no cylinder)
• 75: Electrified ET trim - fail safe power off, unlocks lever, key retracts latch, #34 cylinder supplied
• 76: Electrified ET trim - fail secure power off, locks lever, key retracts latch, #34 cylinder supplied

Specifications:

• Door Type: Metal doors
• Door Thickness: 1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 5" thick, specify thickness and order as 31-
• Stile: 4-1/2" (114mm) minimum stile width
• Rail sizes as determined by door width:
• E Rail for 24" to 32" door widths, no cutting required for 32" door
• F Rail for 33" to 36" door widths, no cutting required for 36" door
• J Rail for 37" to 42" door widths, no cutting required for 42" door
• G Rail for 43" to 48" door widths, no cutting required for 48" door
• Strike: 649 Standard black nylon coated
• Dogging Feature: Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options:
• AL: Alarm
• PL: SARGuide photoluminescent coated
• 53: LX Latchbolt monitor
• 54: Outside lever monitoring
• 55: Request-to-exit signal - rail monitoring
• 56: ELR Remote latch retraction
• 58: Electric dogging
• 59: Electroguard – self contained delayed egress
• Mounting Fasteners: Supplied standard with wood and machine screws. Available with through-bolts and mortise (sex) nuts
• Latch Bolt: Stainless steel, 3/4" (19mm) throw
• Device Centerline from: 41" (1041 mm) for standard applications
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Push bar neutral – 3" (76mm), push bar depressed – 2-1/8" (54mm)

Finishes:

• 03/605 - Bright brass, clear coated
• 04/606 - Satin brass, clear coated
• 09/611 - Bright bronze, clear coated
• 10/612 - Satin bronze, clear coated
• 10B/613 - Dark oxidized satin bronze, oil rubbed
• 10BE/613E - Dark oxidized satin bronze, equivalent
• 10BL/613L - Dark oxidized satin bronze clear coated
• 14/618 - Bright nickel plated, clear coated
• 15/619 - Satin nickel plated, clear coated
• 20D/624 - Dark statuary bronze lacquered
• 26/625 - Bright chrome plated
• 26D/626 - Satin chrome plated
• 32/629 - Bright stainless steel
• 32D/630 - Satin stainless steel
• BSP - Black suede powder coat
• WSP - White suede powder coat
