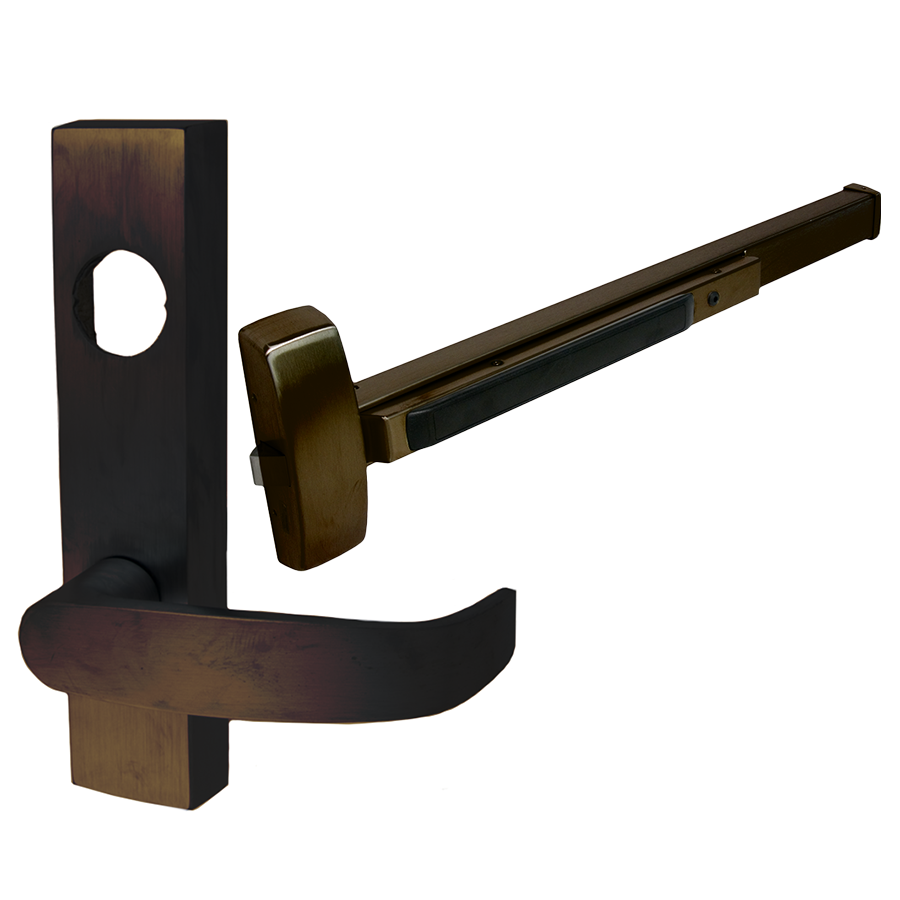

Sargent LC-8804F-ETL-10BE RHR KIT 8800 Series Rim Exit Device, Nightlatch Lever Trim, Grade 1, RHR, 613E/US10BE

KIT - 8800 Series Rim Exit Device, Nightlatch Lever Trim (Key Retracts Latchbolt Lever Rigid), Escutcheon with L Lever, Keyed Trim, Less Rim Cylinder, 36in, Grade 1, RHR Right Hand Reverse, 613E/US10BE Dark Oxidized Bronze

The 80 series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications – including delayed egress, alarmed exit and electric latch retraction – making this the go-to product for your building.

Features:

• Designed for standard width stile applications on wood and metal doors
• Also available as an HC8800 or WS8800 for hurricane-resistant applications
• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) Listed

Functions:

• 04: Night latch, key retracts latch #34 cylinder supplied. ANSI 03
• 06: Key unlocks trim, trim retracts latch/trim relocks when key is removed #41 cylinder supplied. ANSI 09
• 10: No outside operation (no cylinder). ANSI 01
• 10: No outside operation (no cylinder) ET control is used as pull only. ANSI 02
• 13: Key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 15: Passage only (no cylinder). ANSI 14
• 16: Key outside retracts latch; key inside unlocks/locks O/S trim, O/S #34 cylinder & I/S #44 cylinder supplied. ANSI 10
• 40: Freewheeling trim - no outside operation (no cylinder) dummy trim. ANSI 02
• 43: Freewheeling trim - key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 44: Freewheeling trim - key retracts latch, #34 cylinder supplied. ANSI 03
• 46: Freewheeling trim - Key unlocks trim, trim retracts latch/relocks when key is removed #41 cylinder supplied. ANSI 09
• 73: Electrified ET trim - fail safe power off, unlocks lever (no cylinder)
• 74: Electrified ET trim - fail secure power off, locks lever (no cylinder)
• 75: Electrified ET trim - fail safe power off, unlocks lever, key retracts latch, #34 cylinder supplied
• 76: Electrified ET trim - fail secure power off, locks lever, key retracts latch, #34 cylinder supplied

Specifications:

• Door Type: Metal doors
• Door Thickness: 1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 5" thick, specify thickness and order as 31-
• Stile: 4-1/2" (114mm) minimum stile width
• Rail sizes as determined by door width:
• E Rail for 24" to 32" door widths, no cutting required for 32" door
• F Rail for 33" to 36" door widths, no cutting required for 36" door
• J Rail for 37" to 42" door widths, no cutting required for 42" door
• G Rail for 43" to 48" door widths, no cutting required for 48" door
• Strike: 649 Standard black nylon coated
• Dogging Feature: Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options:
• AL: Alarm
• PL: SARGuide photoluminescent coated
• 53: LX Latchbolt monitor
• 54: Outside lever monitoring
• 55: Request-to-exit signal - rail monitoring
• 56: ELR Remote latch retraction
• 58: Electric dogging
• 59: Electroguard – self contained delayed egress
• Mounting Fasteners: Supplied standard with wood and machine screws. Available with through-bolts and mortise (sex) nuts
• Latch Bolt: Stainless steel, 3/4" (19mm) throw
• Device Centerline from: 41" (1041 mm) for standard applications
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Push bar neutral – 3" (76mm), push bar depressed – 2-1/8" (54mm)

Finishes:

• 03/605 - Bright brass, clear coated
• 04/606 - Satin brass, clear coated
• 09/611 - Bright bronze, clear coated
• 10/612 - Satin bronze, clear coated
• 10B/613 - Dark oxidized satin bronze, oil rubbed
• 10BE/613E - Dark oxidized satin bronze, equivalent
• 10BL/613L - Dark oxidized satin bronze clear coated
• 14/618 - Bright nickel plated, clear coated
• 15/619 - Satin nickel plated, clear coated
• 20D/624 - Dark statuary bronze lacquered
• 26/625 - Bright chrome plated
• 26D/626 - Satin chrome plated
• 32/629 - Bright stainless steel
• 32D/630 - Satin stainless steel
• BSP - Black suede powder coat
