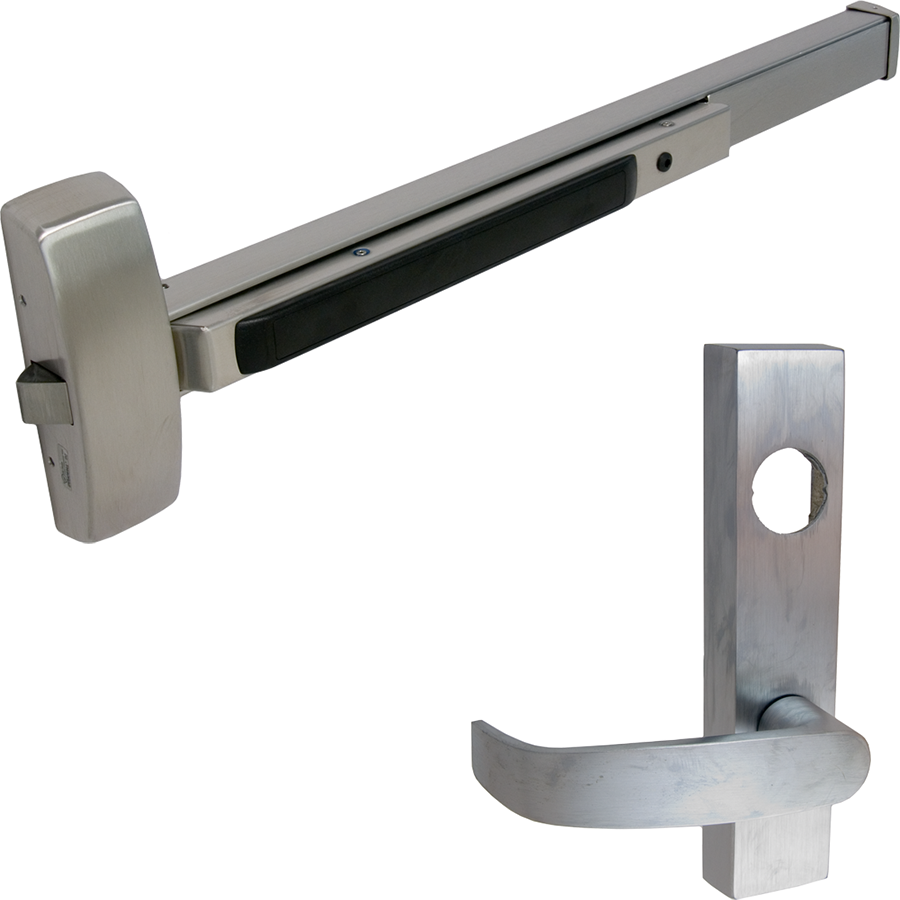

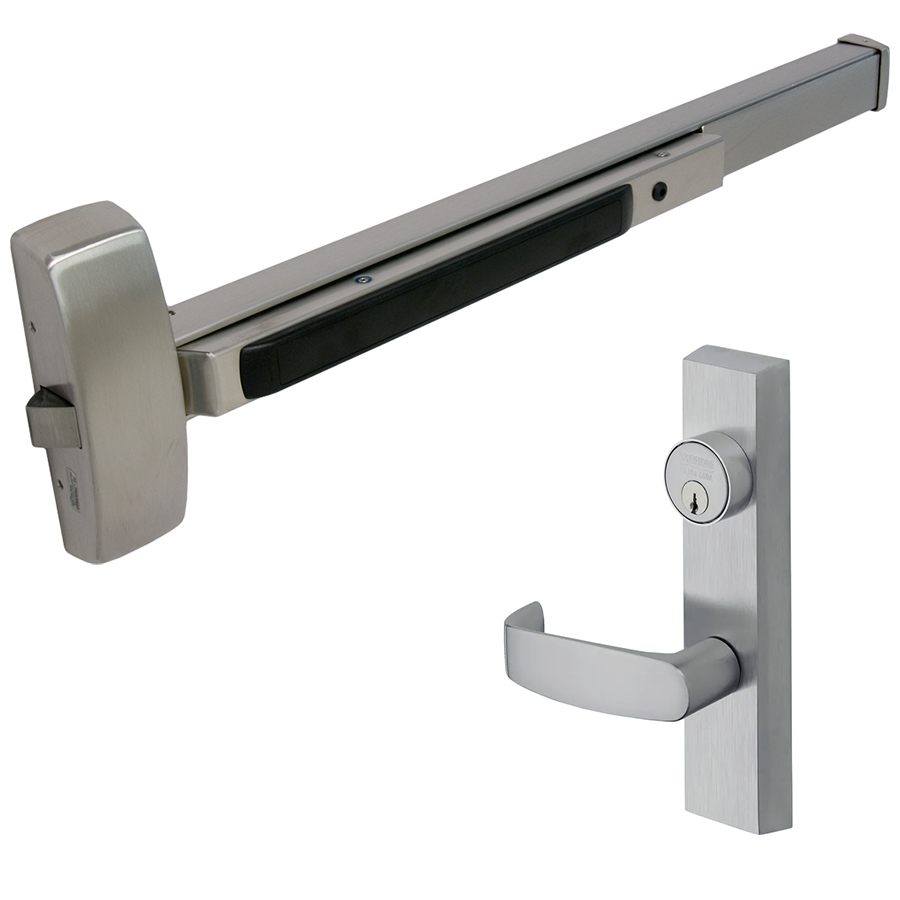

Sargent LC-8813G-ETL-32D LHR 8800 Series Rim Exit Device, Classroom Lever Trim, Keyed, Grade 1, LHR

Sargent LC-8813G-ETL-32D LHR KIT is a robust exit device from the 8800 Series, engineered for superior performance and security. This rim exit device features a classroom lever trim that allows for key locking and unlocking, making it ideal for institutional applications where controlled access is crucial. Crafted from durable stainless steel with a satin finish (32D/630), the LC-8813G-ETL is designed to withstand the rigors of daily use while maintaining an aesthetically pleasing appearance. Exceeding ANSI/BHMA Grade 1 standards, this device is suitable for standard width stile applications on both wood and metal doors, with a minimum door thickness of 1-3/4 inches. The hex dogging feature ensures reliable operation, and the single point rim latching mechanism provides solid security for both single and double door configurations. Additional options like delayed egress and electric latch retraction make the LC-8813G-ETL versatile for various building needs. The device also boasts quiet operation, ensuring minimal disruption in busy environments. With its modular design, maintenance is hassle-free, allowing for long-lasting security without the worry of frequent repairs. Choose the Sargent LC-8813G-ETL-32D LHR KIT for dependable access control and peace of mind.

KIT - 8800 Series Rim Exit Device, Classroom Lever Trim (Key Locks/Unlocks Trim), Escutcheon with L Lever, Keyed Trim, Less Mortise Cylinder 1-1/8in, 48in, Hex Dogging, Grade 1, LHR Left Hand Reverse, 630/US32D Stainless Steel

The 80 series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications – including delayed egress, alarmed exit and electric latch retraction – making this the go-to product for your building.

Features:

• Designed for standard width stile applications on wood and metal doors
• Also available as an HC8800 or WS8800 for hurricane-resistant applications
• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) Listed

Functions:

• 04: Night latch, key retracts latch #34 cylinder supplied. ANSI 03
• 06: Key unlocks trim, trim retracts latch/trim relocks when key is removed #41 cylinder supplied. ANSI 09
• 10: No outside operation (no cylinder). ANSI 01
• 10: No outside operation (no cylinder) ET control is used as pull only. ANSI 02
• 13: Key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 15: Passage only (no cylinder). ANSI 14
• 16: Key outside retracts latch; key inside unlocks/locks O/S trim, O/S #34 cylinder & I/S #44 cylinder supplied. ANSI 10
• 40: Freewheeling trim - no outside operation (no cylinder) dummy trim. ANSI 02
• 43: Freewheeling trim - key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 44: Freewheeling trim - key retracts latch, #34 cylinder supplied. ANSI 03
• 46: Freewheeling trim - Key unlocks trim, trim retracts latch/relocks when key is removed #41 cylinder supplied. ANSI 09
• 73: Electrified ET trim - fail safe power off, unlocks lever (no cylinder)
• 74: Electrified ET trim - fail secure power off, locks lever (no cylinder)
• 75: Electrified ET trim - fail safe power off, unlocks lever, key retracts latch, #34 cylinder supplied
• 76: Electrified ET trim - fail secure power off, locks lever, key retracts latch, #34 cylinder supplied

Specifications:

• Door Type: Metal doors
• Door Thickness: 1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 5" thick, specify thickness and order as 31-
• Stile: 4-1/2" (114mm) minimum stile width
• Rail sizes as determined by door width:
• E Rail for 24" to 32" door widths, no cutting required for 32" door
• F Rail for 33" to 36" door widths, no cutting required for 36" door
• J Rail for 37" to 42" door widths, no cutting required for 42" door
• G Rail for 43" to 48" door widths, no cutting required for 48" door
• Strike: 649 Standard black nylon coated
• Dogging Feature: Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options:
• AL: Alarm
• PL: SARGuide photoluminescent coated
• 53: LX Latchbolt monitor
• 54: Outside lever monitoring
• 55: Request-to-exit signal - rail monitoring
• 56: ELR Remote latch retraction
• 58: Electric dogging
• 59: Electroguard – self contained delayed egress
• Mounting Fasteners: Supplied standard with wood and machine screws. Available with through-bolts and mortise (sex) nuts
• Latch Bolt: Stainless steel, 3/4" (19mm) throw
• Device Centerline from: 41" (1041 mm) for standard applications
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Push bar neutral – 3" (76mm), push bar depressed – 2-1/8" (54mm)

Finishes:

• 03/605 - Bright brass, clear coated
• 04/606 - Satin brass, clear coated
• 09/611 - Bright bronze, clear coated
• 10/612 - Satin bronze, clear coated
• 10B/613 - Dark oxidized satin bronze, oil rubbed
• 10BE/613E - Dark oxidized satin bronze, equivalent
• 10BL/613L - Dark oxidized satin bronze clear coated
• 14/618 - Bright nickel plated, clear coated
• 15/619 - Satin nickel plated, clear coated
• 20D/624 - Dark statuary bronze lacquered
• 26/625 - Bright chrome plated
• 26D/626 - Satin chrome plated
• 32/629 - Bright stainless steel
• 32D/630 - Satin stainless steel
• BSP - Black suede powder coat
• WSP - White suede powder coat
