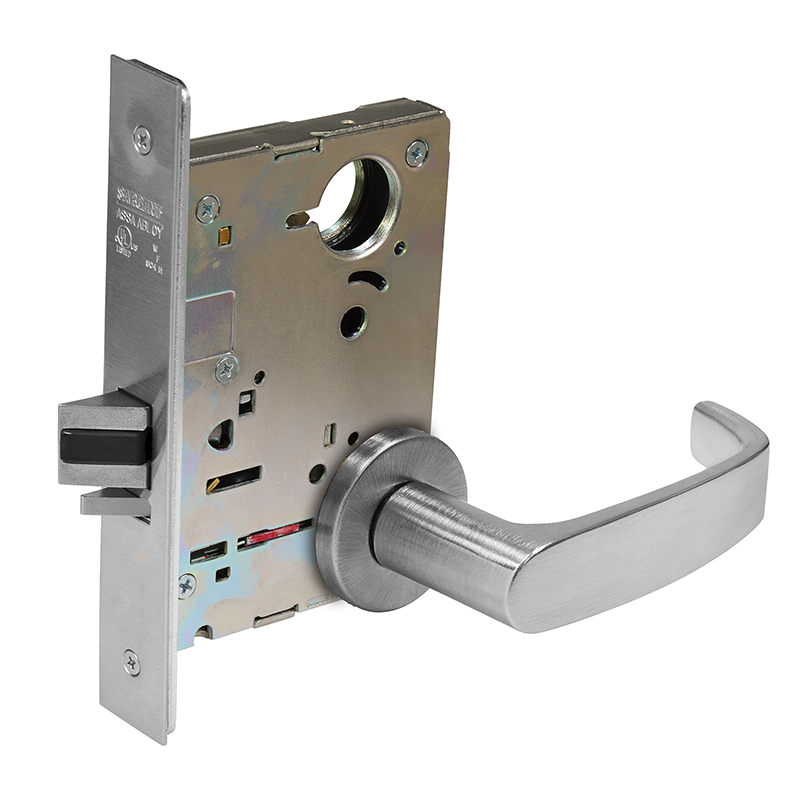

Sargent LC8204LNL26D Storeroom Closet Mortise Lock with L Lever and LN Rose Less Cylinder offers robust security and functionality for various commercial applications. Engineered with a heavy-duty lever-style design, this mortise lock features a satin chrome finish that not only enhances aesthetics but also ensures durability. Utilizing EcoFlex technology, this lockset delivers impressive energy savings of up to 89% on all electromechanical functions, making it an eco-friendly choice. With a UL Cycle rating that surpasses 16 million cycles, it stands up to rigorous use, ensuring longevity and reliability. This lock integrates seamlessly with all SARGENT key systems, including Degree, Signature, KESO, and XC, providing versatile access control options. The LC8204LNL26D is designed for doors with a thickness of 1-3/4 inches and features a reversible handing to accommodate various installation needs. Its 2-3/4" backset and 1-1/4" x 8" latch faceplate ensure compatibility with standard door preparations. Additionally, this model comes with a 10-year limited warranty, underscoring SARGENT's commitment to quality. Ideal for storerooms and closets, the Sargent LC8204LNL26D is a reliable choice for building professionals seeking a combination of security, efficiency, and style.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: LC-8204LNL26D, LC8204LNL26D
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4 In. Latch
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder

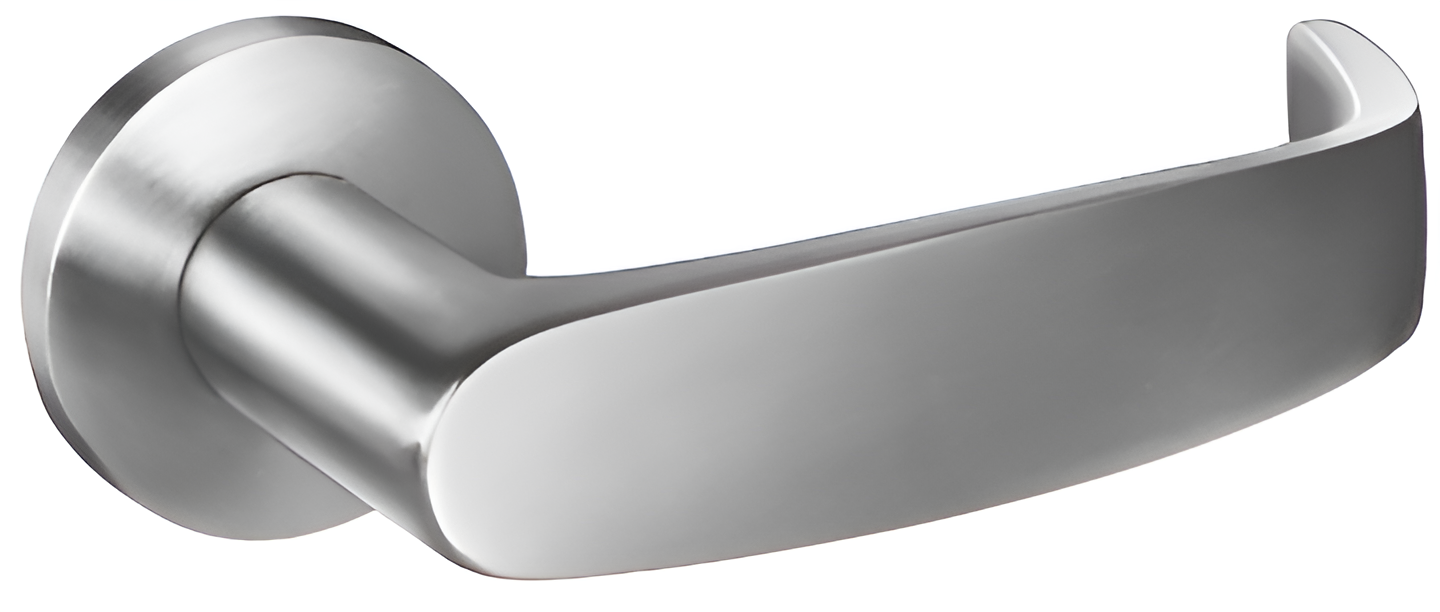

Design: L Lever and LN Rose
Dimension: 5" Lever with 2-3/8" Projection, and 2-1/8" Rose
Door Application: Cylindrical Levers
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 04-Storeroom or Closet
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: L - Lever
Leverknob Design: L - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Brass
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 4.38"
Pack Length: 9.25"
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63"
Rose Escutcheon Design: LN - Rose
Roseescutcheon Design: LN - Rose
Screws: Combination
Series: 8200 Series
Ship Weight: 6.1 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
