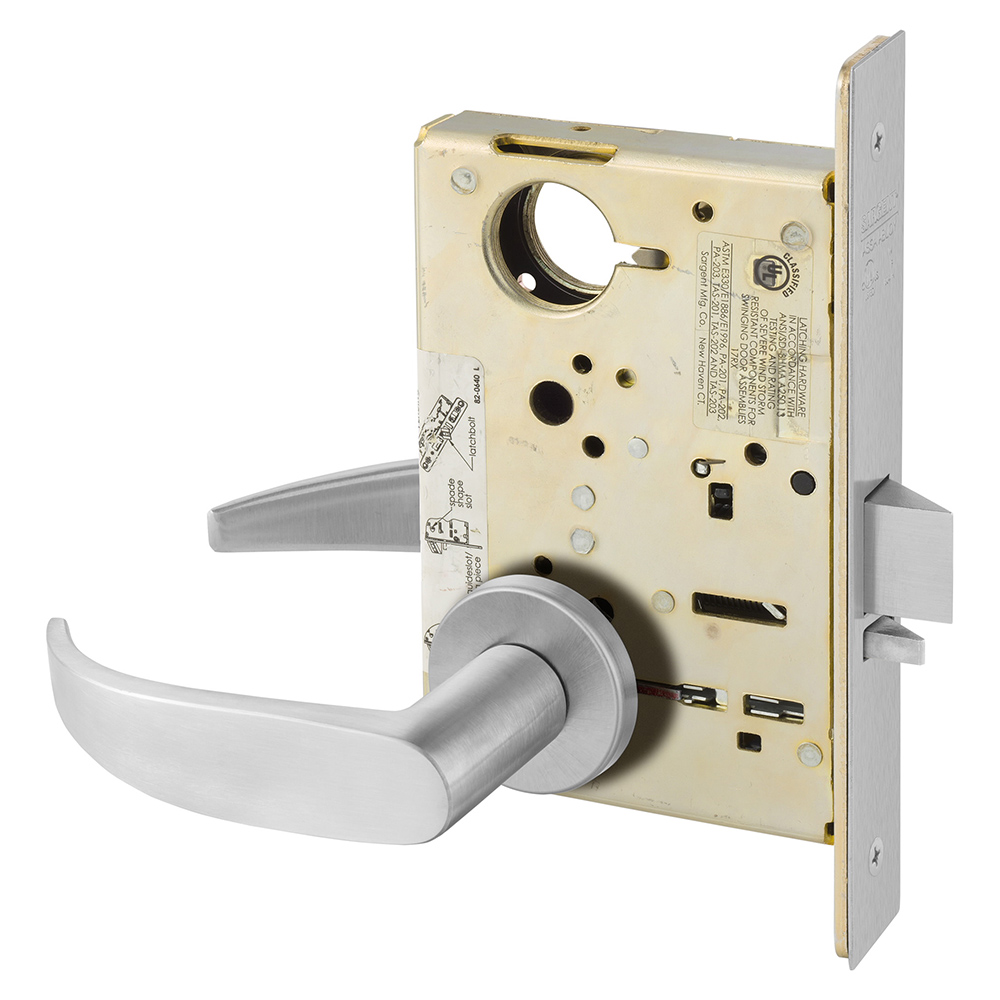

Sargent LC8204LNP26D Storeroom Closet Mortise Lock with P Lever and LN Rose Less Cylinder Satin Chrome Finish delivers a combination of security and style ideal for commercial applications. Designed for storeroom closets, this mechanical lockset features a convenient reversible handing, allowing for flexible installation options to suit various door configurations. With a durable satin chrome finish (26D), the LC8204 not only offers a sleek aesthetic but also enhances resistance to wear and corrosion. The 2-3/4" backset and a 1-1/4" x 8" latch faceplate ensure a precise fit for standard door thicknesses of 1-3/4". The lockset includes a robust ASA strike measuring 1-1/4" x 4-7/8", promoting secure closure. The P lever design, combined with a 5-1/2" lever length and a 2-1/2" projection, provides ergonomic ease of use while the LN rose adds a refined touch to any door. UL and cUL certified for three-hour fire rating, this lockset meets high safety standards, making it a reliable choice for any building professional. Elevate your door hardware with the Sargent LC8204LNP26D, where functionality meets contemporary design.
Attributes
Alternate Codes: LC-8204LNP26D, LC8204LNP26D
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4 In. Latch
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Design: P Lever and LN Rose
Dimension: 5-1/2" Lever with 2-1/2" Projection, and 2-1/8" Rose
Door Application: Cylindrical Levers
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 04-Storeroom or Closet
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: P - Lever
Leverknob Design: P - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 4.38"
Pack Length: 9.25"
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63"
Rose Escutcheon Design: LN - Rose
Roseescutcheon Design: LN - Rose
Screws: Combination
Series: 8200 Series
Ship Weight: 6.1 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rated
Unit of Measure: Each
