Sargent LCRX-10XG70 LB 26 Grade 1 Electric Fail-Safe Lock

Sargent LCRX-10XG70 LB 26 Grade 1 Elec, Fail Safe is a top-tier Grade 1 electrified cylindrical lock designed for high-traffic environments. Engineered to exceed ANSI/BHMA Grade 1 performance standards by an impressive margin, this lock ensures superior durability, strength, and reliability. With its fail-safe functionality, occupants can trust that safety is prioritized without compromising access. This lock features a B lever design with an L rose in a polished chrome finish, enhancing both aesthetic appeal and security. It operates effectively on doors with a thickness of 1-3/4" to 2" and has a 1/2" bolt projection. The Sargent LCRX-10XG70 is equipped with a deadlatch and a request-to-exit mechanism, catering to commercial installation needs. With an operating voltage of either 12 or 24 VAC/DC, the lock draws 250 mA at 12V and 150 mA at 24V, making it efficient for various access control systems. Additionally, it is UL Listed and fire-rated for up to 3 hours, ensuring compliance with safety regulations. Backed by a 10-year limited warranty, the Sargent LCRX-10XG70 LB 26 is a reliable choice for those seeking robust security solutions.

Grade 1 Elec, Fail Safe

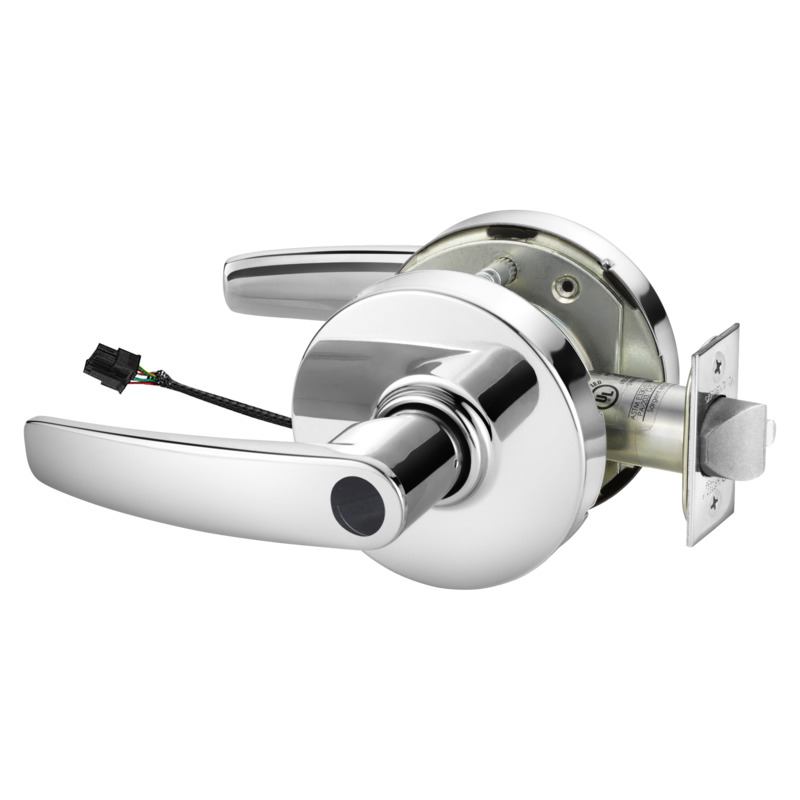

Grade 1 Electrified Cylindrical Lock, Fail Safe, B Lever, L Rose, Less Cylinder, Deadlatch, Request to Exit, Bright Chrome Finish, Non-Handed

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Grade 1 electrified locksets that exceed standards for durability, strength and performance by as much as 20 times.

Resources

• 10X Line Announcement
• 10X Line Bored Lock Installation Instructions
• 10X Line Bored Lock Sell Sheet
• 10X Line Cylindrical Lever Lock Parts Manual
• 10X Line FAQ
