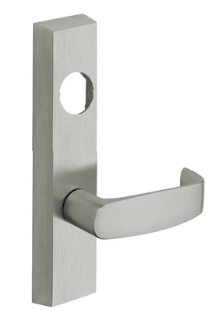

Sargent P713-8-NEL-26D LHR LA-1BIT Exit Trim L Lever Next Generation offers an innovative solution for secure access control. Designed specifically for the PE8888 exit device, this trim features a classroom function that allows for key locking and unlocking of the lever, ensuring only authorized personnel can gain entry. With its left-hand reverse (LHR) configuration, the trim is field-reversible, providing flexibility for various installation needs. The P713-8-NEL-26D is constructed with durability in mind, as it is through-bolted to the chassis for enhanced security. The easy-operating lever handle allows for convenient one-handed operation, making it ideal for high-traffic environments. This model is compatible with the 8513, 8713, 8813, and 8888 series, and comes equipped with a 34 rim cylinder, featuring an LA keyway with a single bitted design. Available in a sleek satin chrome finish (626/US26D), the trim also accommodates various other finishes to match your aesthetic requirements. With multiple functions, including options for night latch operation and electrified configurations, the Sargent P713-8-NEL-26D is a versatile choice for effective exit security in both commercial and institutional settings.

Exit Trim L Lever Next Generation for PE8888, Classroom Function, Key Locks and Unlocks Lever, LHR Left Hand Reverse, Handing Field Reversible, 34 Rim Cylinder Supplied, LA Keyway 1-Bitted, 626/US26D Satin Chrome (Works with (12)851-3/8713/881-3/8888 Series)

The 700 series ET control is sold separately from the exit device and can be used with 8888 & 8810 exit device. The trim is non handed and is through bolted to the chassis for greater security and durability. Available in 7 functions and Sargent studio, coastal and standard lever designs to accommodate most requirements.

Features:

• ANSI/BHMA Finishes
• Easy operating lever handle allows convenient one hand operation
• ET trim is not available in 32 or 32D
• Stainless steel levers are available

Functions:

• 04: Night latch key retracts latch #34 cylinder supplied. ANSI 03
• 10: No O/S operation or cylinder (pull only). ANSI 02
• 13: Key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 15: Passage only (no cylinder). ANSI 14
• 63: Key outside unlocks/locks thumbpiece #34 cylinder supplied. ANSI 05
• 66: Key outside retracts latch; key inside unlocks/locks O/S trim O/S #34 & I/S #44. ANSI 07
• 73: Electrified ET trim - fail safe power off, unlocks lever (no cylinder)
• 74: Electrified ET trim - fail secure power off, locks lever (no cylinder)
• 75: Electrified ET trim - fail safe power off, unlocks lever, key retracts latch #34 cylinder supplied
• 76: Electrified ET trim - fail secure power off, locks lever, key retracts latch #34 cylinder supplied

Finishes:

• 0-3/605 - Bright brass, clear coated
• 0-4/606 - Satin brass, clear coated
• 0-9/611 - Bright bronze, clear coated
• 1-0/612 - Satin bronze, clear coated
• 10B/613 - Dark oxidized satin bronze, oil rubbed
• 10BE/613E - Dark oxidized satin bronze, equivalent
• 10BL/613L - Dark oxidized satin bronze clear coated
• 20D/624 - Dark statuary bronze lacquered
• 2-6/625 - Bright chrome plated
• 26D/626 - Satin chrome plated
• 3-2/629 - Bright stainless steel
• 32D/630 - Satin stainless steel
• BSP - Black suede powder coat
• WSP - White suede powder coat
