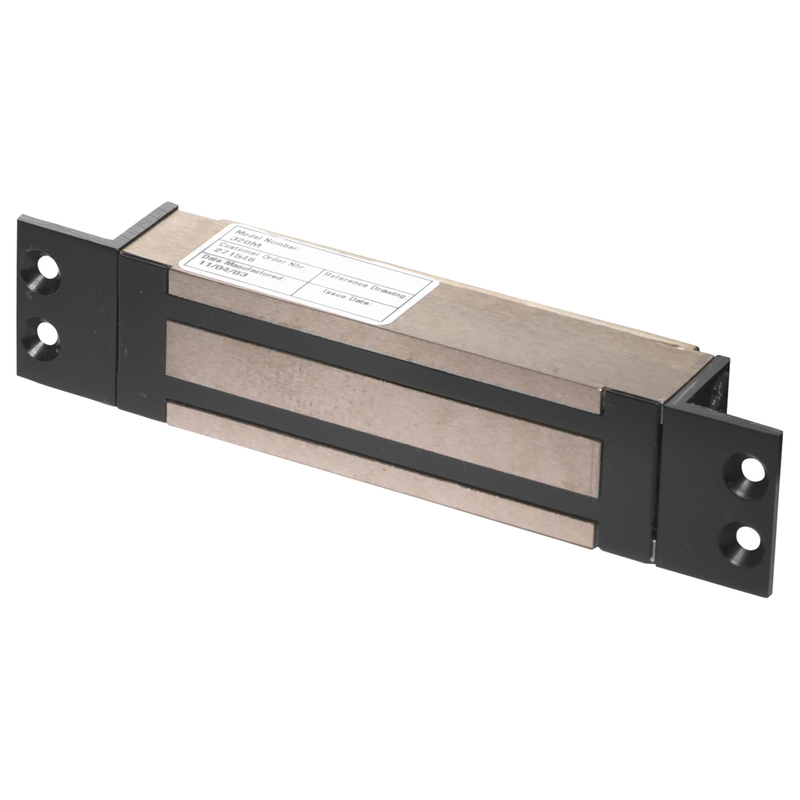

Schlage Electronics 320M 628 Mini Maglock is a compact mortise sliding door electromagnetic lock that combines security with life safety features. This UL listed lock meets ANSI/BHMA standards and is designed for seamless integration with electronic access control systems and automatic door operators. The 320M MiniLine is particularly suitable for sliding doors, ensuring reliable egress during emergencies when connected to fire or hazard sensing systems. Featuring a robust holding force of 500 lbs., this maglock offers exceptional security while maintaining a fail-safe design. The adjustable time delay allows for customized locking behavior, enhancing usability in various applications. Constructed from aluminum with a sleek matte silver finish, it not only provides durability but also complements modern architectural aesthetics. The 320M Mini Maglock operates at 12/24 VDC, drawing 450/230mA, making it efficient for commercial use. Its compact dimensions (7" L x 1.88" W x 1.38" H) and armature size of 4-1/4" x 1-1/2" x 5/8" ensure easy installation. With a limited warranty and the backing of Allegion's extensive portfolio of electromagnetic locks, this product is a reliable choice for traffic control applications in commercial settings.
Mini Maglock
Compact Mortise SlidIng Door Electromagnetic Lock, Door Status Monitor, Magnetic Bond Sensor, Adjustable Time Delay, SatIn AlumInum Clear Anodized
Schlage provides the industry's most complete selection of electromagnetic locks. The 320M MiniLine is UL listed and engineered to meet the ANSI/BHMA standards for electromagnetic locks. As a mortise mounted electromagnetic lock, it is designed for use on sliding doors and interfaces with electronic access control systems, automatic door operators, and fire or hazard sensing systems to provide egress upon detectable emergency. With a fail-safe design, it offers an excellent solution for both security and life safety requirements when connected to the fire alarm circuit.
The broad portfolio of Allegion’s electromagnetic locks offers a solution for most every application.
Manufacturer surcharge: $ 0.0
Amp Draw: 450/230mA @ 12/24 VDC Current
Armature Size: 4-1/4" x 1-1/2" x 5/8"
Base Material: Aluminum
Base Series: 320M Series
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
For Use With: Traffic Control
Holding Force: 500 lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 7" x 1-3/8" x 1-7/8"
Operating Voltage: 12/24 VDC
Pack Qty: 1
Product Height: 1.38"
Product Length: 7"
Product Width: 1.88"
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 6 lbs.
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C/cUL CSFM ANSI/BHMA 156.23
Unit of Measure: Each
