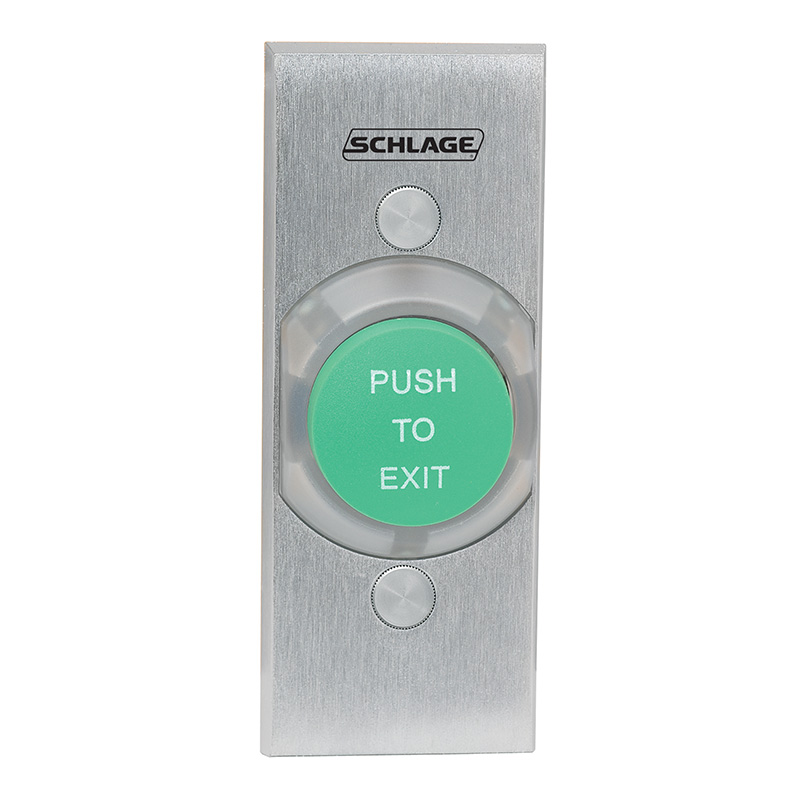

Schlage 623GR EX DA NS Narrow Stile Pushbutton

Schlage Electronics 623GR EX DA NS Narrow Stile Pushbutton is designed to enhance door accessibility and safety with its user-friendly features. This pushbutton boasts a 1-5/8" mushroom button, ensuring easy operation with the clear "PUSH TO EXIT" labeling. Its delayed action functionality, adjustable between 0 to 60 seconds, provides a crucial buffer for safe egress in commercial environments. Tailored for narrow stile installations, this pushbutton is perfect for applications where space is limited. The commercial-grade construction guarantees durability while maintaining an appealing architectural finish, making it suitable for various settings. With an operating voltage of 12/24 VDC, this model is adaptable to different electrical systems. The Schlage 623GR is part of the innovative 620 and 631 Series, which feature screw terminal connections for ease of installation. Enhanced with optional backlit illumination, the button utilizes green and red LEDs for clear monitoring. Additionally, it offers a heavy-duty plate and multiple button configurations. Designed for commercial use, this pushbutton not only meets functional demands but also elevates the design aesthetic of any door hardware system. Elevate your access control solutions with the reliability and quality that Schlage Electronics delivers.

Narrow Stile Pushbutton

1-5/8" Mushroom Button, Single Gang, Green, "PUSH TO EXIT", Delayed Action (0-60 Seconds), Narrow Stile

Schlage pushbuttons are used to control the ingress and/or egress of a door. The 620 and 631 Series pushbuttons are easy to install and operate. Their standard and narrow stile plates offer ultimate flexibility. The 620 to 631 Series have multiple button configuration and finish options provide enhanced architectural appeal. Schlage 620 and 631 Series pushbuttons also offer significant installer-friendly innovations such as screw terminal connections for the momentary action models and easy-to-install L2/ILL optional PC board, offering backlit illumination for the cone with green and red LEDs for monitoring purposes. Additional options include delayed action, double pole double throw a heavy-duty plate with several architectural finishes and extreme-duty pushbuttons.

Resources

• 2021 Electronic Access Control Catalog
• Schlage Electronics System Accessories Cut Sheet
• Von Duprin Finishes Chart
