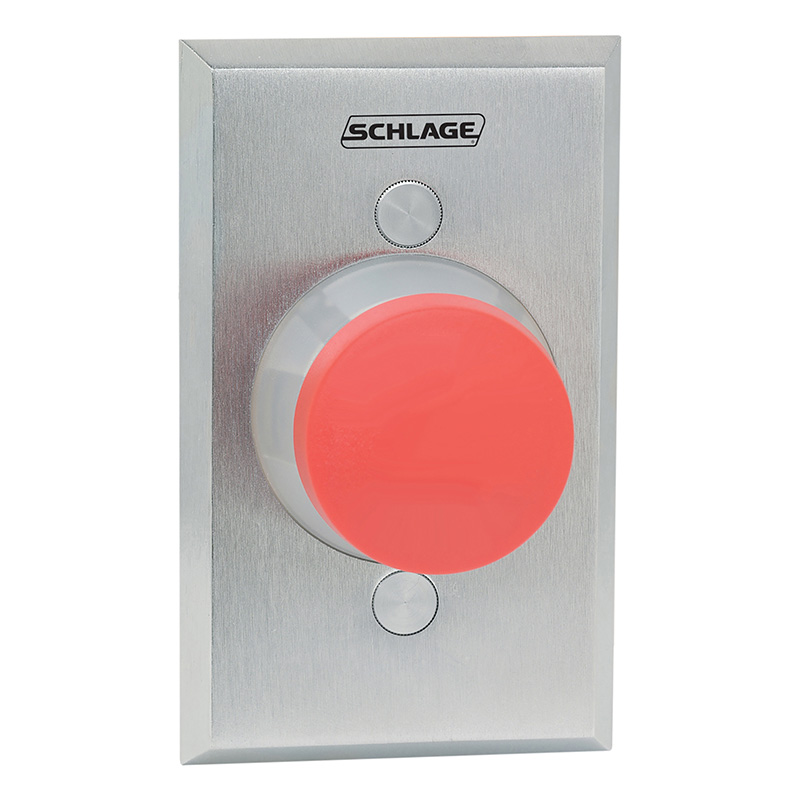

Schlage 623RD DP SF-626 Single Gang Pushbutton Switch

Schlage Electronics 623RD DP SF-626 Single Gang Pushbutton is designed to efficiently control door access with its user-friendly features. This robust pushbutton includes a 1-5/8" mushroom button in a vibrant red finish, ensuring visibility and ease of use in any commercial setting. The double pole double throw (DPDT) configuration allows for versatile operational capabilities, making it ideal for both ingress and egress control. Constructed with a durable satin chrome finish (626/US26D), this unit not only meets aesthetic demands but is also vandal-resistant, ensuring longevity in high-traffic areas. The installation process is straightforward, with a single gang mounting plate and screw terminal connections that facilitate quick setup for momentary action. The 623RD model is compatible with 12/24 VDC operating voltage and includes options for backlit illumination, featuring green and red LEDs for effective monitoring. Additionally, the pushbutton’s heavy-duty design and various architectural finishes provide both functionality and enhanced architectural appeal, making it a reliable choice for commercial applications. Trust Schlage Electronics for quality and innovation in door hardware solutions.

Single Gang Pushbutton

1-5/8" Mushroom Button, Single Gang, Red, Double Pole Double Throw, Satin Chrome

Schlage pushbuttons are used to control the ingress and/or egress of a door. The 620 and 631 Series pushbuttons are easy to install and operate. Their standard and narrow stile plates offer ultimate flexibility. The 620 to 631 Series have multiple button configuration and finish options provide enhanced architectural appeal. Schlage 620 and 631 Series pushbuttons also offer significant installer-friendly innovations such as screw terminal connections for the momentary action models and easy-to-install L2/ILL optional PC board, offering backlit illumination for the cone with green and red LEDs for monitoring purposes. Additional options include delayed action, double pole double throw a heavy-duty plate with several architectural finishes and extreme-duty pushbuttons.

Resources

• 2021 Electronic Access Control Catalog
• Schlage Electronics System Accessories Cut Sheet
• Von Duprin Finishes Chart
