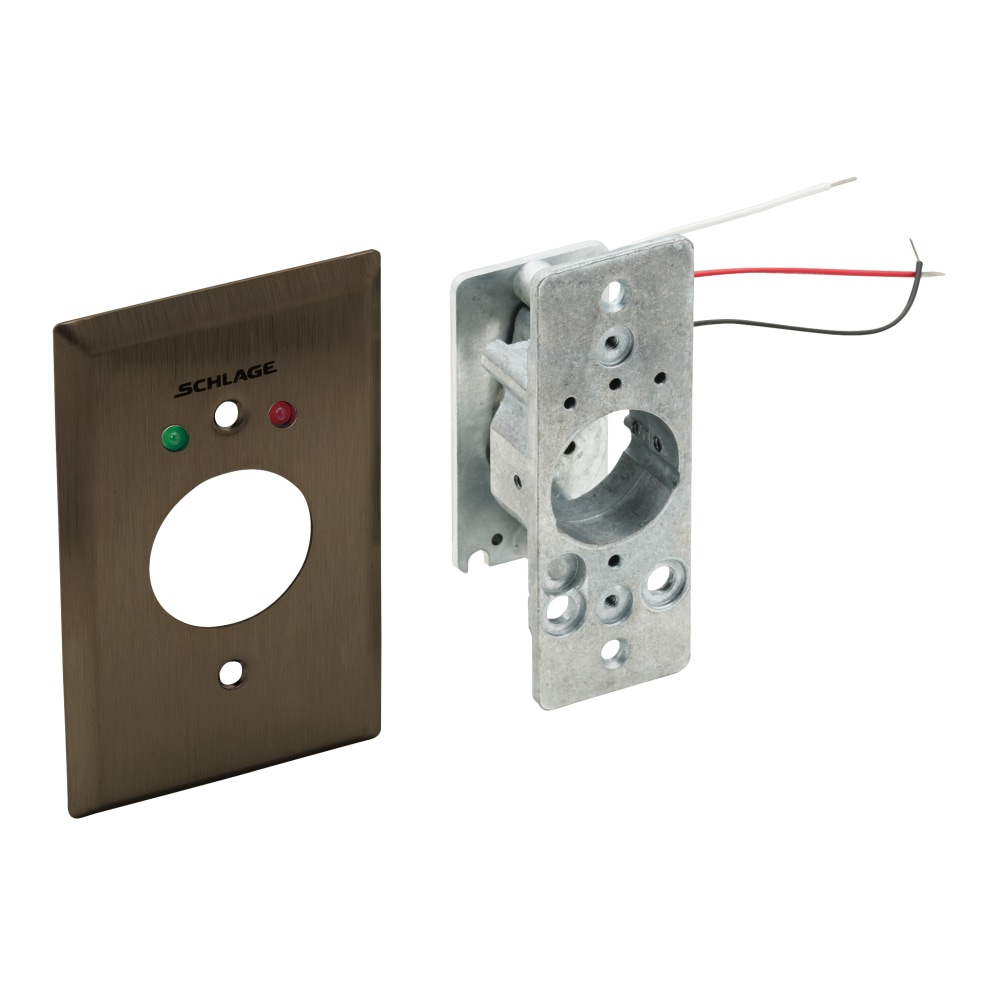

Schlage Electronics 653-04 HDP L2 SF-613 Single Gang Keyswitch offers a robust solution for commercial environments requiring reliable access control. This heavy-duty keyswitch features a SPDT (Single Pole Double Throw) relay action that is maintained, allowing for consistent and secure operation. Designed with a dark oxidized satin bronze oil-rubbed finish, it seamlessly integrates into various architectural styles while providing a vandal-resistant solution. The innovative magnetic spring design enables easy configuration for both clockwise and counterclockwise key turn directions, as well as momentary or maintained actions, making installation straightforward. The keyswitch is equipped with two LED indicators-red and green-providing clear visual feedback for users. Note that the cylinder is purchased separately, allowing for customization with Schlage Everest cylinders for enhanced security. Rated for 12/24 VDC operating voltage, this commercial-grade keyswitch is suitable for a wide range of applications. Its single gang mounting plate size ensures compatibility with standard installations. With a manufacturer surcharge of 2.0% and the ability to ship via UPS, the Schlage 653-04 is a top choice for those seeking both functionality and durability in their door hardware solutions.
Single Gang Keyswitch
653 Keyswitch, SPDT-Clockwise Maintained, Less Cylinder, 2 LEDs, Red and Green, Heavy Duty Plate, Dark Oxidized Satin Bronze Oil-Rubbed Finish
Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counter clockwise key turn direction as well as momentary or maintained action in seconds. Single gang and narrow stiles are available with numerous options which include heavy-duty plate, weather resistant cover (single gang size only), 2 LED lights - green/red, anti-tamper switch and Schlage Everest cylinder. In addition to the standard (630) satin stainless steel finish, there are five additional architectural finishes to choose from.
Application: Cylinder Purchased Separately
Commercial Residential: Commercial
Environment: Vandal Resistant
Finish: 613/US10B
Finish Family: Dark Bronze
Installation: Commercial
Mounting Plate Size: 1 Gang
Operating Voltage: 12/24 VDC
Pack Qty: 1
Pbs Options: 6083463
Relay Action: Maintained (AA)
Relay Type: SPDT
Series: Schlage Electronics System Accessories
Subtype: Keyswitches
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
