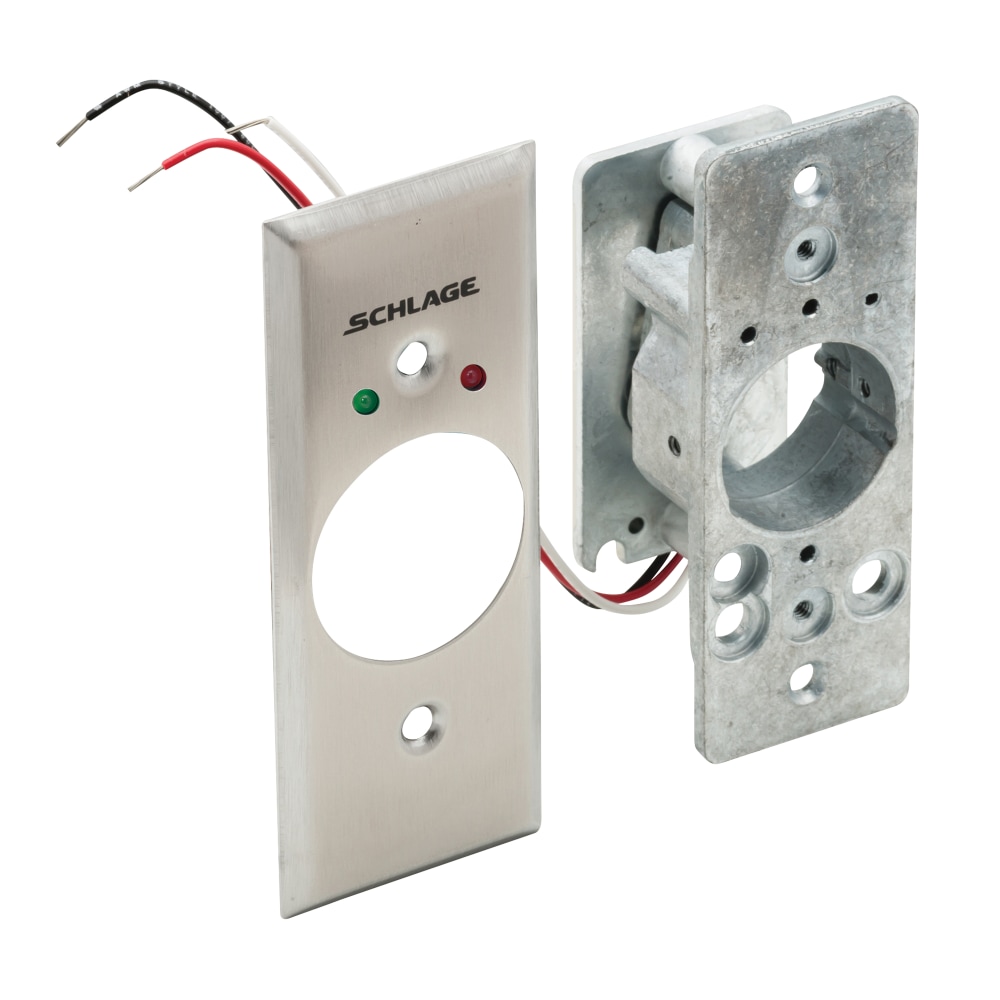

Schlage 653-05 NS L2 Narrow Stile Keyswitch

Schlage Electronics 653-05 NS L2 Narrow Stile Keyswitch offers a versatile solution for commercial door access control. Featuring a Single Pole Double Throw (SPDT) configuration, this keyswitch allows for momentary action with a clockwise turning direction, making it an ideal choice for various applications. Designed with installer convenience in mind, the innovative magnetic spring mechanism enables quick configuration for both clockwise and counter-clockwise operation in mere seconds. This keyswitch is equipped with two LED indicators, glowing red and green, providing clear visual status for users. Its narrow jamb mounting plate ensures compatibility with a range of narrow stile door applications. The Schlage 650 Series keyswitches are not only practical but also customizable, with options for a heavy-duty plate, weather-resistant cover, anti-tamper switch, and the choice of multiple architectural finishes in addition to the standard satin stainless steel (630). Operating on 12/24 VDC, this device excels in commercial environments and is designed for easy installation. Please note that the cylinder is purchased separately. With its robust design and user-friendly features, the Schlage Electronics 653-05 NS L2 Narrow Stile Keyswitch is a reliable choice for enhancing door security and access management.

Narrow Stile Keyswitch

653 Keyswitch, SPDT- Clockwise Momentary, Less Cylinder, 2 LEDs, Red and Green, Narrow Stile

Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counter clockwise key turn direction as well as momentary or maintained action in seconds. Single gang and narrow stiles are available with numerous options which include heavy-duty plate, weather resistant cover (single gang size only), 2 LED lights - green/red, anti-tamper switch and Schlage Everest cylinder. In addition to the standard (630) satin stainless steel finish, there are five additional architectural finishes to choose from.
