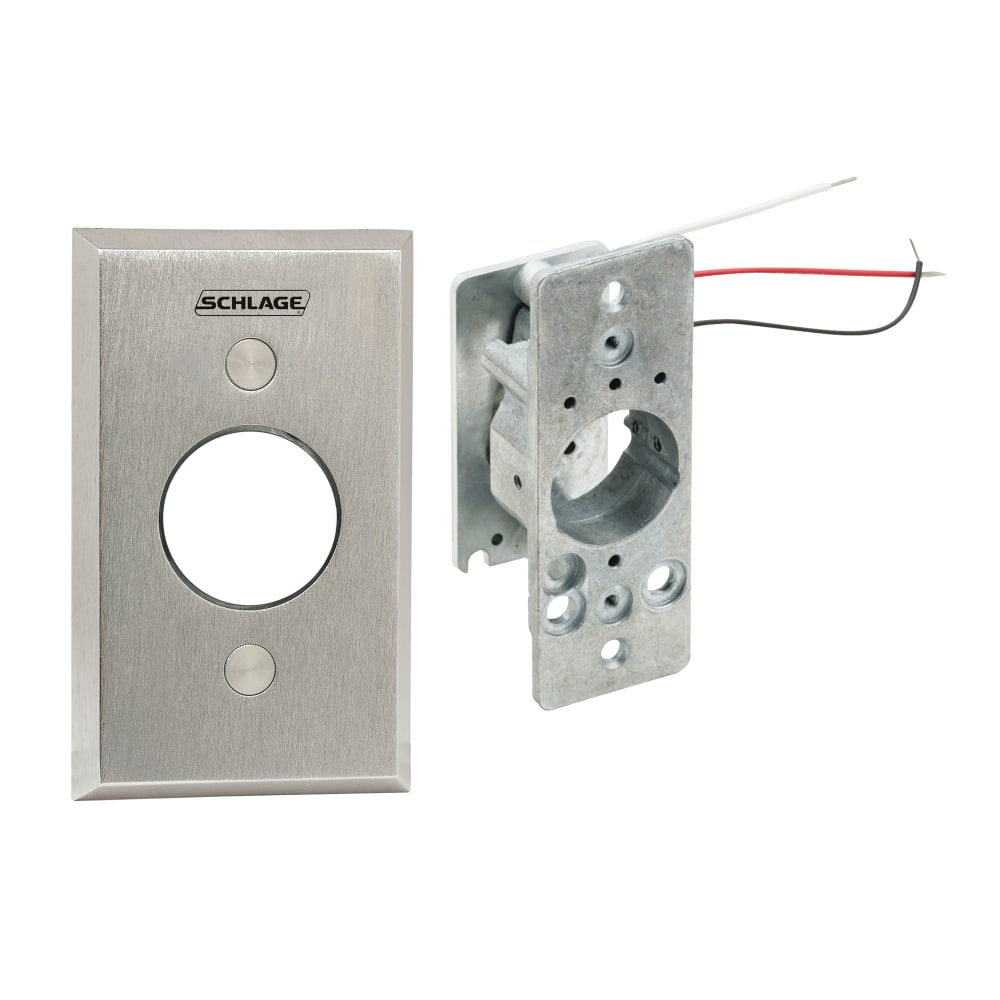

Schlage 653-14 ATS Keyswitch, Clockwise Maintained, Anti-Tamper, DPDT, Less Cylinder

Schlage Electronics 653-14 ATS Keyswitch offers an advanced solution for access control authorization and override in commercial settings. This durable keyswitch features a clockwise maintained relay action and a double-pole double-throw (DPDT) configuration, making it an effective choice for various security applications. Designed with an innovative magnetic spring mechanism, it allows for quick adjustments between clockwise and counterclockwise key turn directions, as well as momentary or maintained actions-enabling seamless installation. The keyswitch is housed in a robust single gang mounting plate, with a faceplate size of 4-1/2" x 2-3/4". It is available in a standard satin stainless steel finish (630) and five additional architectural finishes to suit different design aesthetics. Optional features include a heavy-duty plate, a weather-resistant cover, and two LED indicators (green/red), providing visual cues for operation and enhancing user experience. Certified under UL 294, the Schlage 653-14 keyswitch stands out for its anti-tamper switch, ensuring added security. Whether outfitting commercial properties or enhancing existing access control systems, this keyswitch is an essential component for reliable and efficient functionality.

Keyswitch, Clockwise Maintained, Less Cylinder, Anti-Tamper Switch, DPDT

Keyswitch, Clockwise Maintained, Less Cylinder, Anti-Tamper Switch, DPDT

Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counter clockwise key turn direction as well as momentary or maintained action in seconds. Single gang and narrow stiles are available with numerous options which include heavy-duty plate, weather resistant cover (single gang size only), 2 LED lights - green/red, anti-tamper switch and Schlage Everest cylinder. In addition to the standard (630) satin stainless steel finish, there are five additional architectural finishes to choose from.
