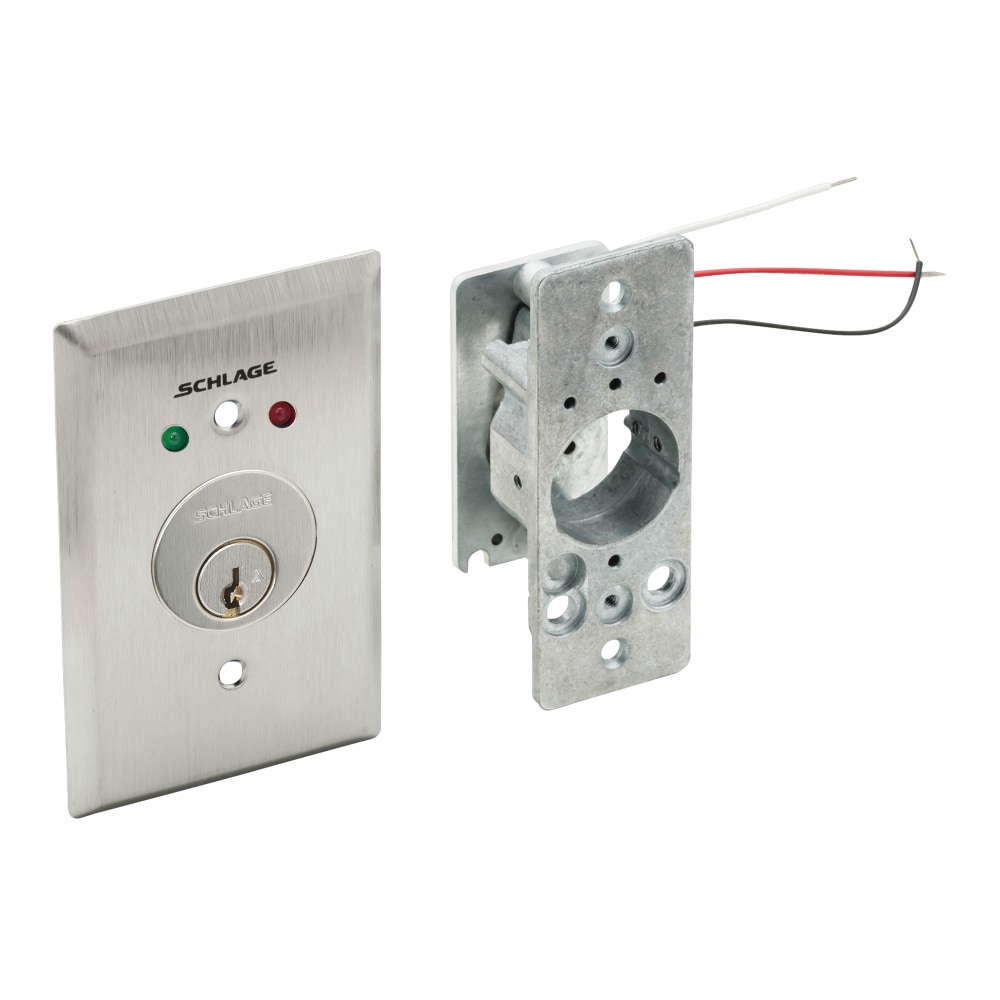

Schlage 653-14 L2 CYL Single Gang Keyswitch

Schlage Electronics 653-14 L2 CYL Single Gang Keyswitch offers an efficient and reliable solution for commercial access control needs. This DPDT keyswitch features a clockwise maintained action, allowing users to easily configure both clockwise and counterclockwise key turn directions in just seconds. The design includes a durable Schlage Everest cylinder, ensuring high security and longevity. Equipped with two LED indicators-red and green-this keyswitch provides visual confirmation of the system's status, enhancing usability in various environments. The single gang mounting plate size makes it ideal for narrow stile applications, while options such as a heavy-duty plate and weather-resistant cover ensure versatility and adaptability to different installation requirements. Operating at 12/24 VDC, the 653-14 L2 is suitable for a range of commercial applications. The maintained relay action ensures consistent performance, while the variety of architectural finishes, beyond the standard satin stainless steel, allows for seamless integration into any design aesthetic. With a 2% manufacturer surcharge and easy UPS shipping, this keyswitch is a practical choice for professionals seeking reliability and functionality in their access control systems.

Single Gang Keyswitch

653 Keyswitch, DPDT- Clockwise Maintained, With Cylinder, 2 LEDs, Red and Green

Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counter clockwise key turn direction as well as momentary or maintained action in seconds. Single gang and narrow stiles are available with numerous options which include heavy-duty plate, weather resistant cover (single gang size only), 2 LED lights - green/red, anti-tamper switch and Schlage Everest cylinder. In addition to the standard (630) satin stainless steel finish, there are five additional architectural finishes to choose from.

Resources

• 2021 Electronic Access Control Catalog
• Schlage Electronics System Accessories Cut Sheet
• Von Duprin Finishes Chart
