Schlage Electronic Security AD200-993R70MSK-ATH626-LD-8B KIT offers a robust security solution for classrooms and storerooms with its advanced magnetic stripe and keypad access. Engineered for versatility, this standalone electronic lock is designed to fit rim or concealed vertical rod exit devices, ensuring seamless integration into various door types. The Athens lever adds a touch of elegance, while the satin chrome finish enhances durability. This Grade 1 lock supports up to 5,000 users and can store up to 5,000 audit events, allowing for precise tracking of access and usage. The credential verification time is impressively quick at under one second, ensuring efficient entry without compromising security. Powering the lock is straightforward with options for 4AA, 8AA, or dual voltage supply, providing flexibility for different applications. Field-reversible handing and multiple locking functions enhance adaptability, while features like request-to-exit sensors and tamper guard streamline the transition to a networked system if needed in the future. The AD200 lock meets stringent certifications, including ANSI/BHMA Grade 1 and UL, ensuring it stands up to the highest security standards. With Schlage's commitment to innovation, this lock is an ideal choice for modern security needs.

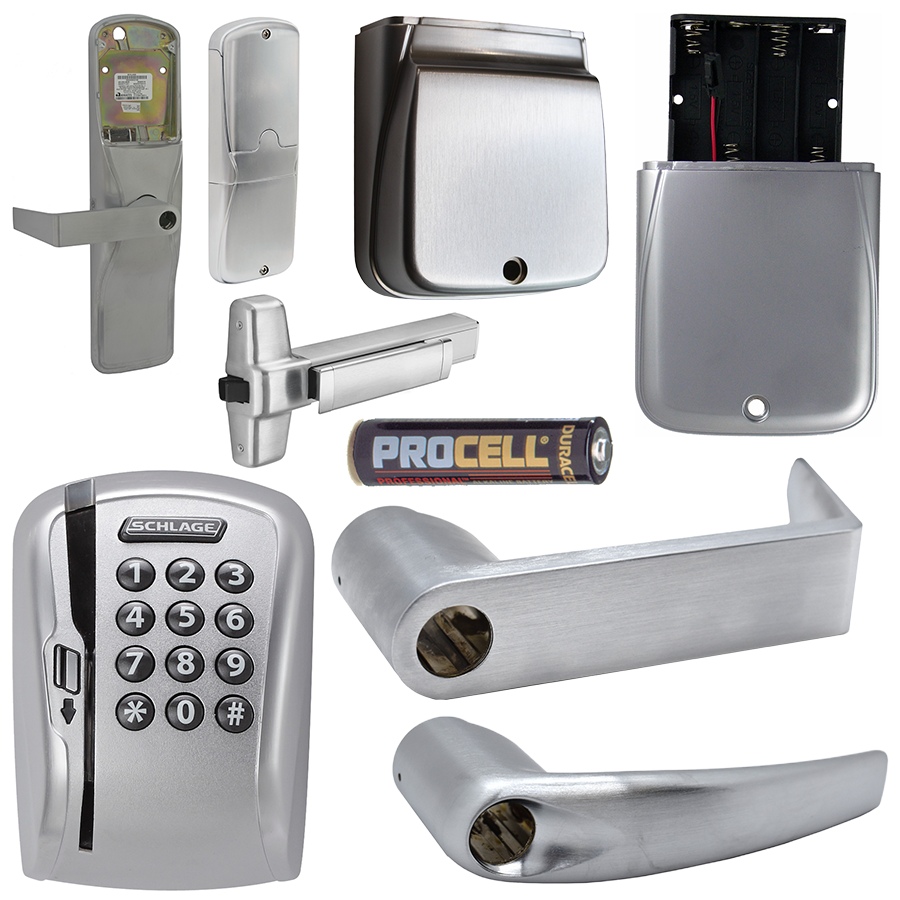

KIT - Magnetic Stripe (Swipe Card) and Keypad Stand Alone Classroom/Storeroom, Exit Trim for Rim or CVR (Concealed Vertical Rod/Cable) Exit Devices, Athens Lever, Key-in-Lever, Less Cylinder, 8AA Battery Kit, UL, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features:

• Security that's more intelligent and convenient than traditional mechanical locking devices
• Audit trail reports that allow you to track usage and events
• Update users and access rights at the lock using the keypad or handheld device
• The ability to upgrade to a networked solution without removing the lock from the door
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems and exit devices
• Hardwired remote push button release capability
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 Electronic Lock Specifications:

• Users: Up to 5000
• Audits: Up to 5000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
• System interface: Handheld device (HHD)
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior -31° to 151°F (-35° to 66°C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
• Accessories: Handheld device (HHD)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8".
• Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 626 - Satin chrome
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial
