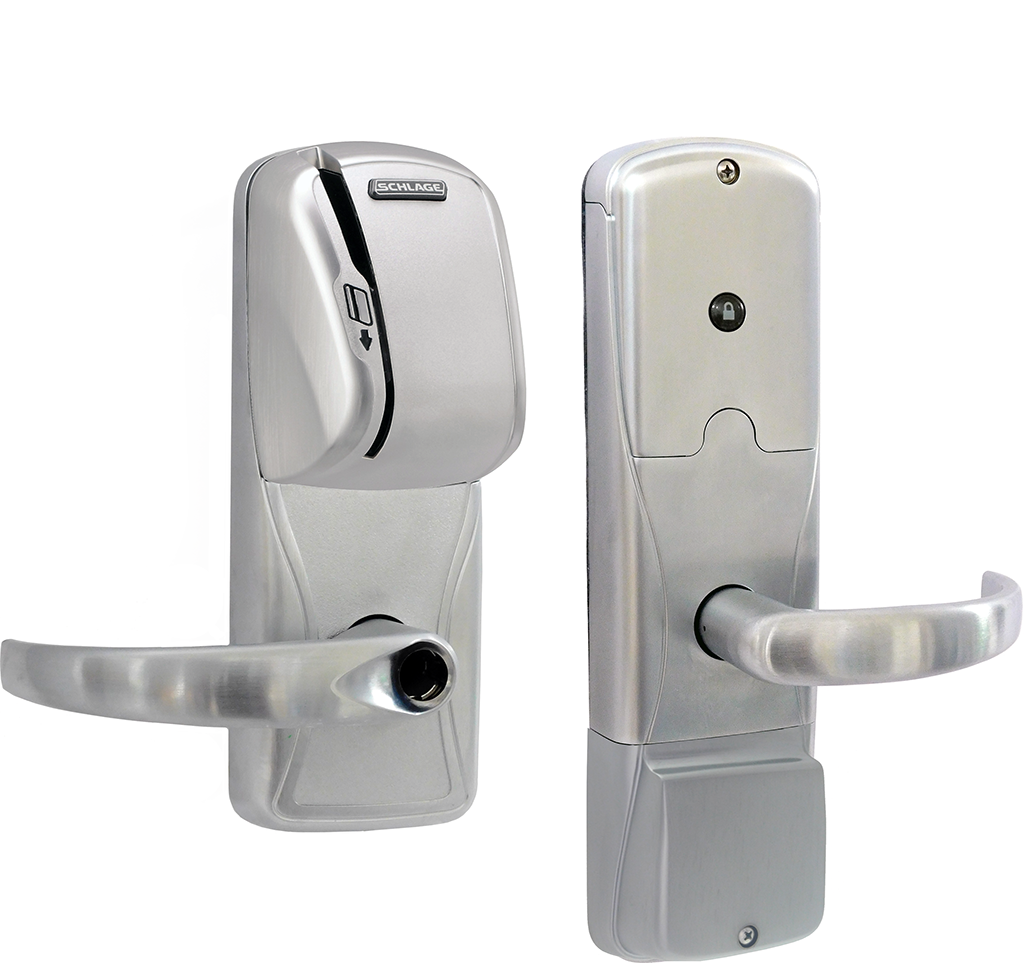

Schlage Electronic Security AD200-CY50MS-SPA626-LD-8B KIT is a sophisticated standalone cylindrical lock designed for office applications. This model features a magnetic stripe reader, making access both modern and efficient. The Sparta lever adds a touch of style, while the key-in-lever functionality ensures versatility for various environments. With a robust Grade 1 rating, this lock provides superior security, certified to meet ANSI/BHMA A156.25 standards. The lock supports up to 5,000 users and stores an audit trail of up to 5,000 events, allowing for comprehensive tracking of access. Its modular design facilitates easy upgrades to a networked solution without the need for removal from the door, making it a future-proof investment. Powering the AD200 is simple, with options for 8AA batteries that can last up to two years. Installation is straightforward, fitting standard door thicknesses of 1-3/4" and featuring a 2-3/4" backset. The satin chrome finish not only enhances durability but also fits seamlessly into various decors. Ideal for commercial settings, the Schlage AD200 offers intelligent security and convenience, ensuring your premises are both accessible and secure.

KIT - Magnetic Stripe (Swipe Card) Stand Alone Office, Cylindrical Lock, Sparta Lever, Key-in-Lever, Less Cylinder, 8AA Battery Kit, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

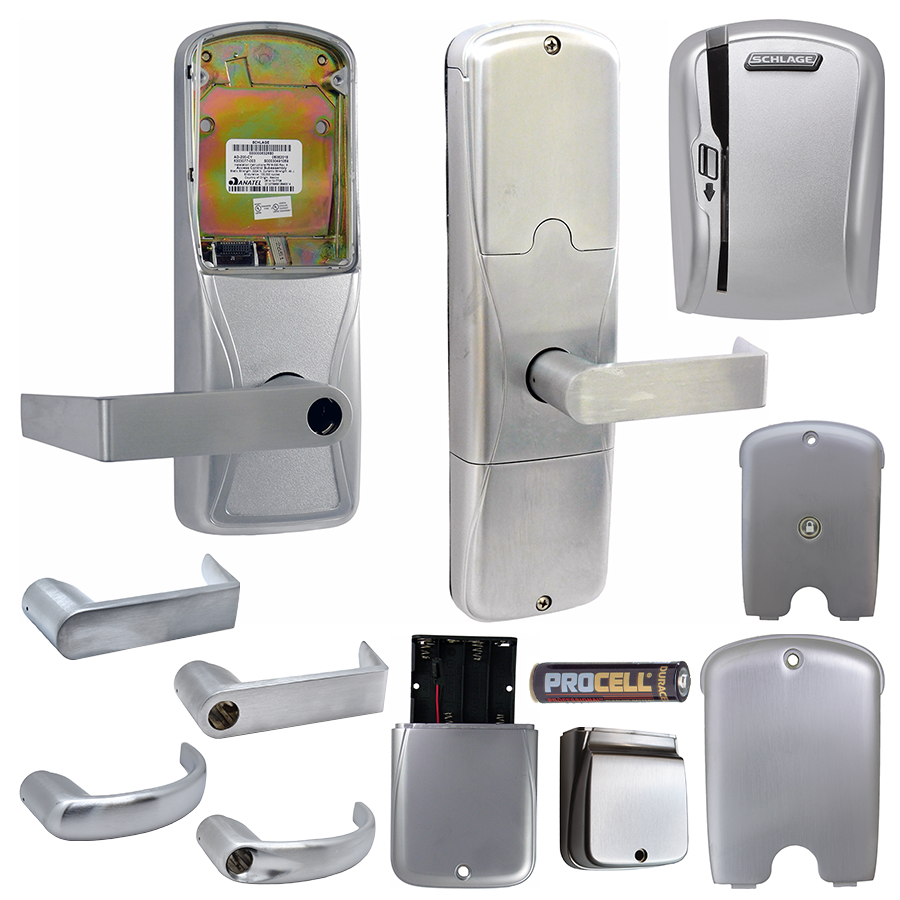

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features:

• Security that's more intelligent and convenient than traditional mechanical locking devices
• Audit trail reports that allow you to track usage and events
• Update users and access rights at the lock using the keypad or handheld device
• The ability to upgrade to a networked solution without removing the lock from the door
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems and exit devices
• Hardwired remote push button release capability
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 Electronic Lock Specifications:

• Users: Up to 5000
• Audits: Up to 5000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
• System interface: Handheld device (HHD)
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior -31° to 151°F (-35° to 66°C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
• Accessories: Handheld device (HHD)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8".
• Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 626 - Satin chrome
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial
