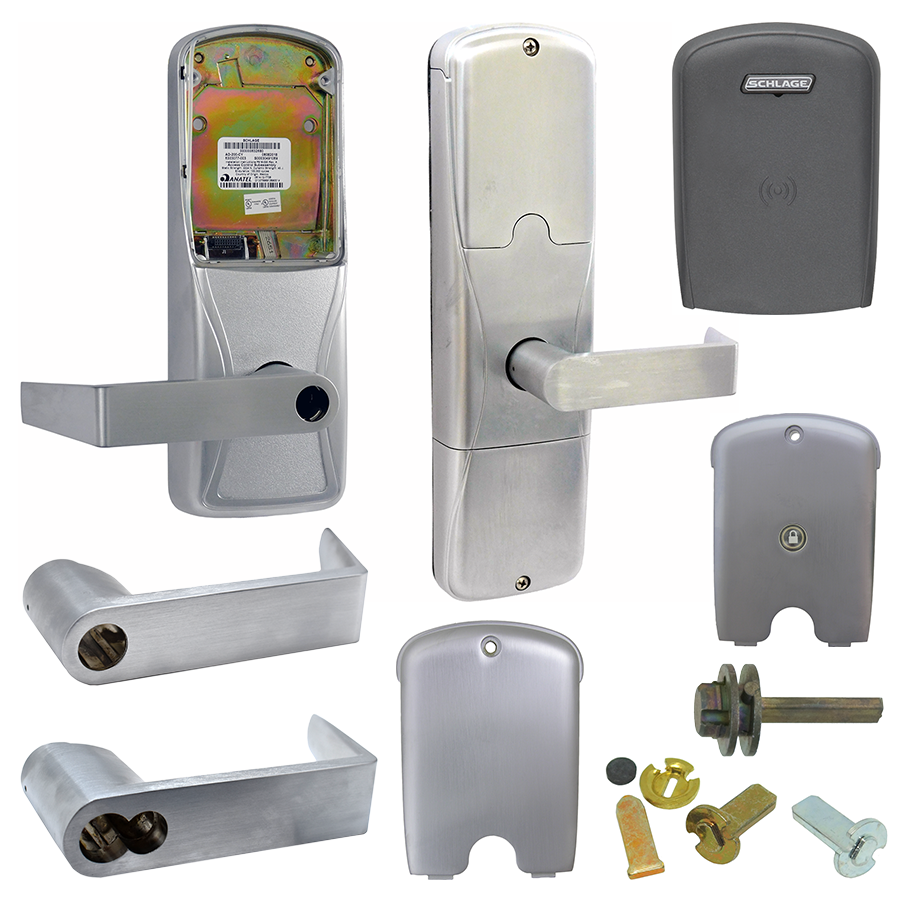

Schlage AD200-CY50MT-RHO626-JD KIT - Multi-Tech Reader, Cylindrical Lock, Rhodes Lever, Grade 1, Satin ChromeSchlage Electronic Security AD200-CY50MT-RHO626-JD KIT offers a sophisticated solution for access control in a standalone format. Designed for office environments, this cylindrical lock features the elegant Rhodes lever and utilizes Schlage's Full Size IC (FSIC) without the core, allowing for flexibility and future upgrades. The 2-3/4 inch backset and UL certification ensure compliance with high security standards, making it a Grade 1 choice for commercial applications. This multi-technology reader supports various credential types, including keypad, magnetic stripe, and NFC options, enabling up to 5,000 users and audits. With a credential verification time of less than one second, it enhances accessibility while maintaining security. The lock is equipped with tri-colored LEDs and audible indicators for intuitive usage feedback. Field reversible handing and the ability to upgrade to a networked solution without removing the lock add to its versatility. Additionally, the AD200 integrates essential features such as request-to-exit sensors and a door position switch, making it prepared for future networking needs. Operating in extreme temperatures, from -31°F to 151°F, this lock is built to last and perform in diverse environments. Finished in satin chrome, it combines durability with a modern aesthetic, making it an excellent choice for any professional setting.
KIT - Multi-Technology Reader Stand Alone Office, Cylindrical Lock, Rhodes Lever, FSIC (Schlage Full Size IC), Less Core, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.
Features:
- Security that's more intelligent and convenient than traditional mechanical locking devices
- Audit trail reports that allow you to track usage and events
- Update users and access rights at the lock using the keypad or handheld device
- The ability to upgrade to a networked solution without removing the lock from the door
- Available in cylindrical, mortise, mortise deadbolt and exit trim
- Compatible with major brands of master key systems and exit devices
- Hardwired remote push button release capability
- Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.
AD-200 Electronic Lock Specifications:
- Users: Up to 5000
- Audits: Up to 5000
- Credential verification time: ≤ 1 second
- Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
- System interface: Handheld device (HHD)
- Power supply: 4AA, 8AA, 12 VDC or 24 VDC
- Voltage range: 4 VDC to 26 VDC
- Max current requirement: Up to 250 mA
- Battery life: Up to 2 yrs with 4AA
- Operating temperature: exterior -31° to 151°F (-35° to 66°C)
- Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
- Operating humidity: 0 - 100 non-condensing
- Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
- Accessories: Handheld device (HHD)
Mechanical Specifications:
- Handing: Handed to order, field reversible
- ANSI standard (meets or exceeds):
- Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
- Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
- Exit Trim: A156.25 locked outdoor A156.3 grade 1
- Door thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
- Backset:
- Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
- Mortise: 2-3⁄4" only
- Exit Trim: Defined by exit device
- Latch bolt:
- Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
- Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
- Exit Trim: Provided by exit device
- Levers: Pressure cast zinc, plated
- Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8".
- Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.
Functions:
- 40: Privacy
- 50: Office/classroom
- 60: Apartment
- 70: Storeroom
Reader:
- KP: Keypad
- MG: Magnetic stripe (insertion)
- MGK: Magnetic stripe + keypad (insertion)
- MS: Magnetic stripe (swipe)
- MSK: Magnetic stripe + keypad (swipe)
- MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
- MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
- Si: HID support
- SiK: HID support + keypad
- DT: Dummy trim
Chassis:
- CY: Cylindrical
- MS: Mortise
- MD: Mortise deadbolt
- 993R: Exit trim – Rim/CVC/CVR
- 993S: Exit trim – SVR
- 993M: Exit trim – mortise
- 993DT: Non-functioning dummy trim for exit
Levers:
- ATH: Athens
- BRK: Boardwalk
- BRW: Broadway
- LAT: Latitude
- LON: Longitude
- RHO: Rhodes
- SPA: Sparta
- TLR: Tubular
Finishes:
- 626 - Satin chrome
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 619 - Satin nickel
- 625 - Bright chrome
- 643e - Aged bronze
- 626AM - Satin chrome antimicrobial
Attributes
Access Type: Hardwired, Multi-Technology, Rights On Lock, Standalone
Alternate Codes: AD200-CY50MT-RHO626-JD, AD200CY50MTRHO626JD
Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks
Cylinder Type: 6-Pin, FSIC - Schlage, Less Core
Door Application: Commercial Electric Locks
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Door Thickness: 1-3/4"
Finish Code: 626
Finish Color: Satin Chrome
Function: Classroom, Office
Grade: Grade 1
Keyway: Schlage S123
Lever Design: Rhodes
Lock Category: Cylindrical Lockset - Lever
Manufacturer: Schlage Electronic Security
Power Supply Type: Battery, Dual Voltage
Series: AD Networked
Voltage: 12, 24
Voltage Type: VDC - Direct
