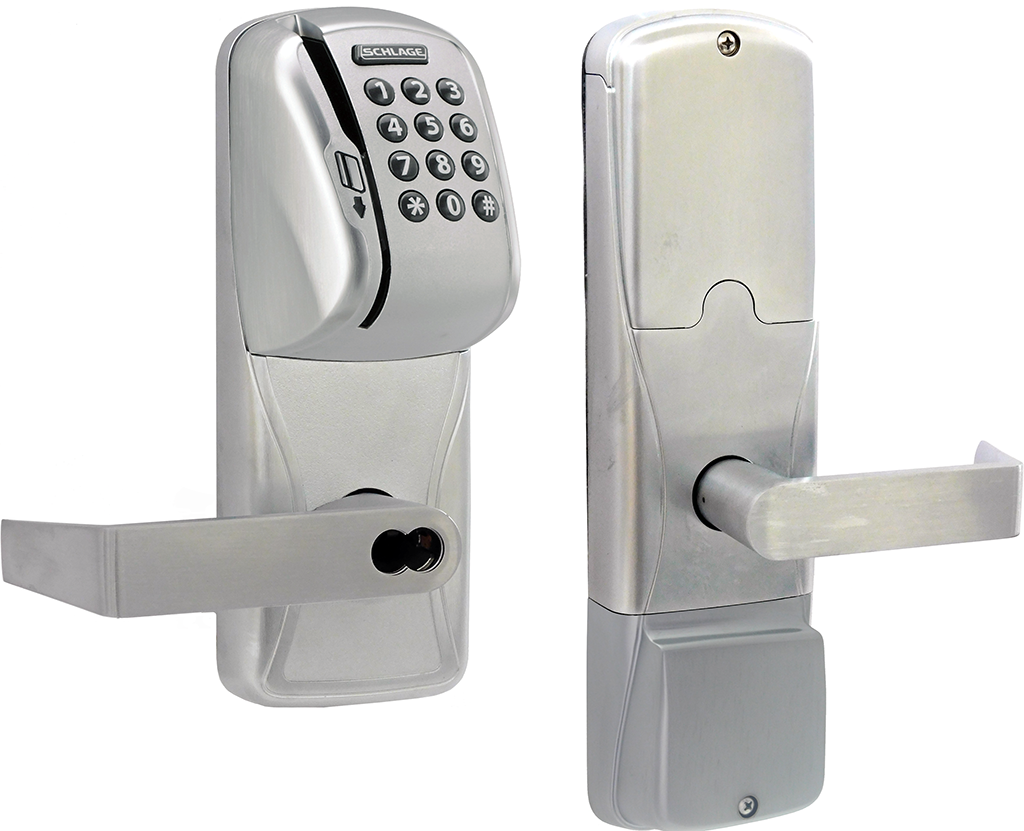

Schlage Electronic Security AD200-CY70MSK-RHO626-BD-8B KIT offers a modern approach to access control with its magnetic stripe and keypad functionality, perfect for classroom and storeroom applications. This cylindrical lock features the elegant Rhodes lever and is designed to be both robust and user-friendly, boasting Grade 1 security certification and a satin chrome finish. The AD200's modular design allows for customization to meet your specific needs, with options for credential readers, locking functions, and power sources. It can accommodate up to 5,000 users and offers detailed audit trail reports to track usage and events effectively. The lock's intuitive keypad enables easy updates to user access rights, ensuring security remains adaptable as requirements change. Powered by an 8AA battery kit, the AD200 is engineered for longevity, with a battery life of up to two years. It can operate in extreme temperatures, from -31°F to 151°F, making it suitable for various environments. Additionally, its field-reversible handing and compatibility with major master key systems enhance its versatility. With features like request-to-exit sensors and an optional network upgrade capability, the Schlage AD200 is a forward-thinking solution for those seeking convenience and security in one dependable package.

KIT - Magnetic Stripe (Swipe Card) and Keypad Stand Alone Classroom/Storeroom, Cylindrical Lock, Rhodes Lever, SFIC (Small Format IC), Less Core, 8AA Battery Kit, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features:

• Security that's more intelligent and convenient than traditional mechanical locking devices
• Audit trail reports that allow you to track usage and events
• Update users and access rights at the lock using the keypad or handheld device
• The ability to upgrade to a networked solution without removing the lock from the door
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems and exit devices
• Hardwired remote push button release capability
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 Electronic Lock Specifications:

• Users: Up to 5000
• Audits: Up to 5000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
• System interface: Handheld device (HHD)
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior -31° to 151°F (-35° to 66°C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
• Accessories: Handheld device (HHD)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8".
• Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 626 - Satin chrome
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial
