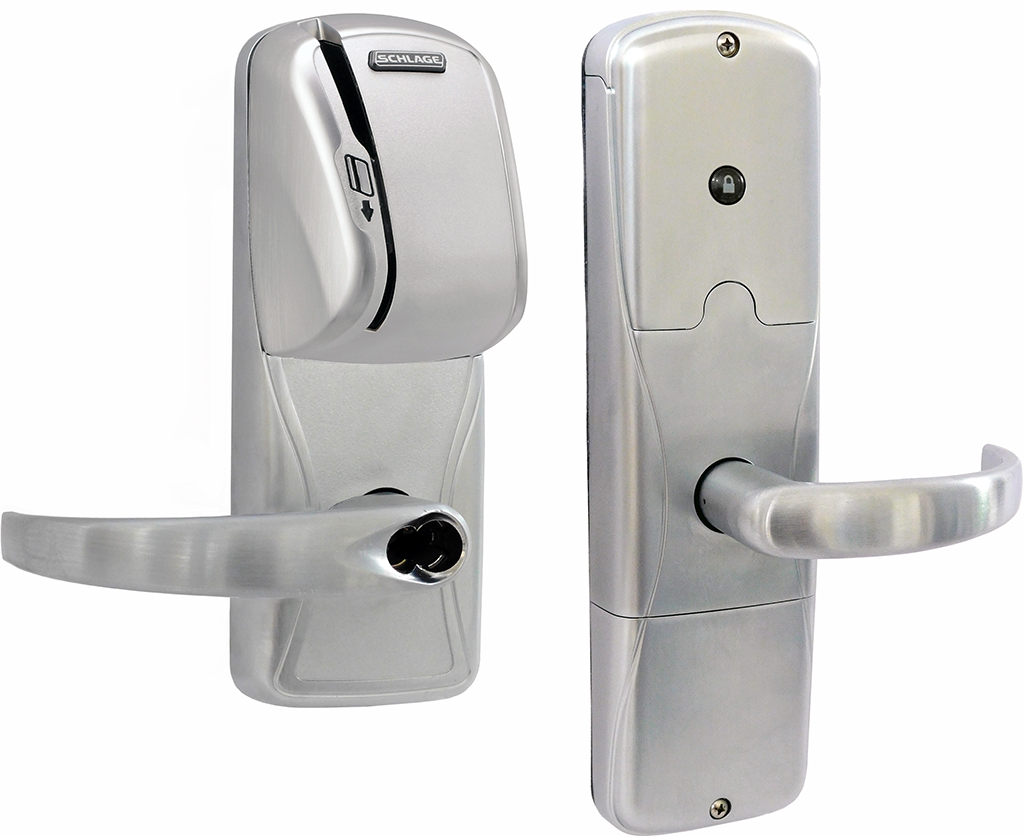

Schlage Electronic Security AD300-CY60MS-SPA626-RD C KIT offers a robust solution for access control in apartment settings, integrating seamlessly with existing security systems. This cylindrical lock features a patented modular design, allowing for future customization without the need to remove it from the door. The lock is hardwired and supports magnetic stripe swipe cards, ensuring quick and efficient access with a credential verification time of less than one second. Constructed with a satin chrome finish (626), this Grade 1 lock combines durability and modern aesthetics. It includes a Schlage Full Size IC core, making it compatible with major master key systems. The lock is equipped with a range of features, including real-time communication with access control systems and support for various credential technologies such as MiFare and NFC mobile. Installation is simplified with an integrated design that includes all necessary components for a complete access control system. The AD300 is field-configurable, allowing for fail-safe or fail-secure options, and supports various door thicknesses from 1-3/8" to 2-3/4". With its UL and ANSI certifications, this lock ensures the highest standards of security and reliability for commercial applications.

KIT - Magnetic Stripe (Swipe Card) Network Hardwired Apartment, Cylindrical Lock, Sparta Lever, FSIC (Schlage Full Size IC), Core Included, C Keyway (1-Bitted Brushed Chrome Cylinder 626), 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

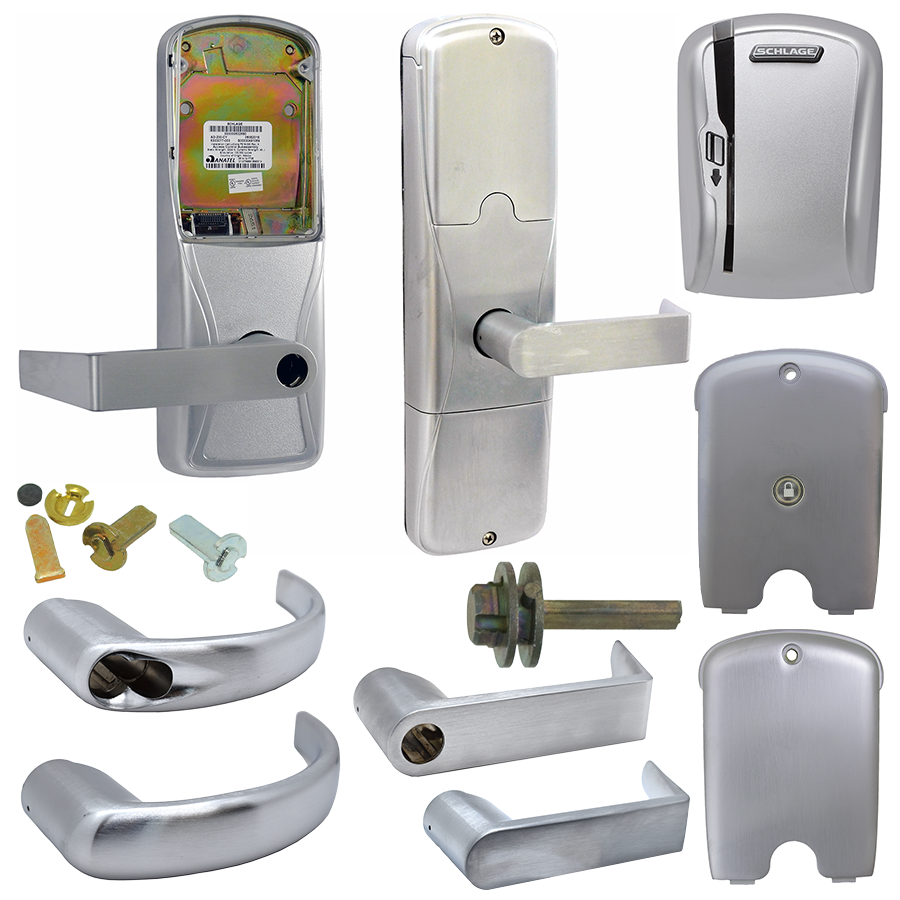

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and changed to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, network configurations, locking functions, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. To simplify installation, the AD series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit and request-to-enter sensors, door position switch, tamper switch and more. The AD-300 has a number of features built-in that are configurable in the field and a long list of items that can be monitored by access control software.

Features:

• Open architecture platform - integrated into most popular physical access control systems through our PACS Alliance program
• Multi-technology credential compatibility includes MiFare, NFC mobile, and proximity
• Optional support for HID smart and NFC mobile credentials
• Panel interface options ensure seamless communication with the access control system
• Real-time communication between access control system and lock
• Field configurable fail safe/fail secure and other capabilities per code
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems
• A wide selection of credential readers and networking options to choose from
• Compatible with NFC mobile credentials on iOS and Android platforms

AD-300 Electronic Lock Specifications:

• Credential verification time: < 1 second
• Data rate: RS-485 : 9.6 kbps
• Visual/audible communications: Tri-colored LED's and audible indicators (field configurable)
• System interface: Wiegand or Clock & Data via PIB300 or RS-485 directly
• Power supply: 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Cable specifications for power: 18AWG, 2 conductor (Belden 8760 or equivalent)
• Cable distance for power: AD-300 to power supply: up to 1000 ft (303 m)
• Cable specifications for data: 24AWG, 2 or 4 conductor shielded (Belden 9841, 9842 or equivalent)
• Cabling distance for data: AD-300 to PIB300 or ACP, RS-485: up to 4000 ft (1219 m)
• Operating temperature: -31° to 151°F (-35° to 66°C)
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
• Accessories: Panel interface board (PIB300), handheld device (HHD), dry contact relay board (RLBD) may be required for supervised inputs (Wiegand systems)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8"
• Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.

Functions:

• 70: Storeroom
• 50: Office/classroom
• 40: Privacy
• 60: Apartment

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• FMK: FIPS 201-1 compliant multi-technology + keypad (125 kHz and 13.56 MHz)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial
