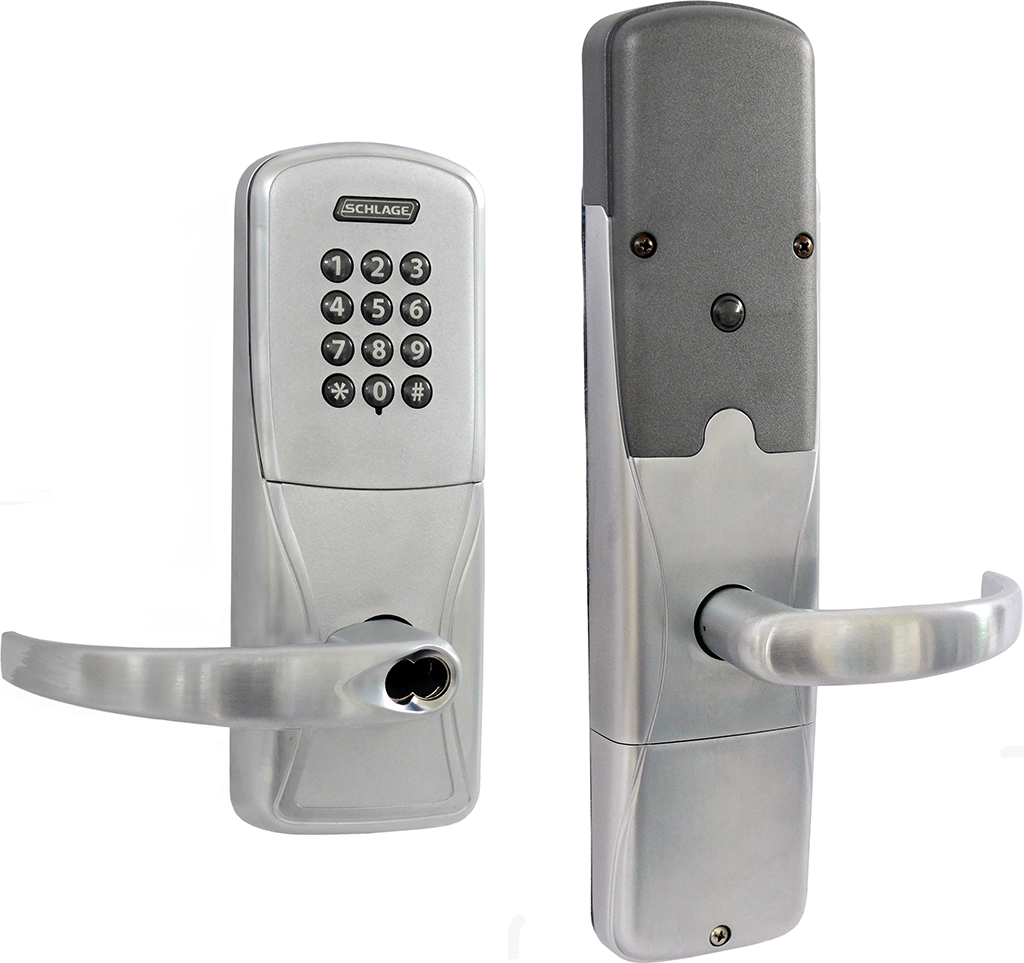

Schlage Electronic Security AD400-CY70KP-SPA626-BD KIT is a state-of-the-art wireless classroom and storeroom lock designed for maximum security and convenience. This cylindrical lock features a Sparta lever and is equipped with a Small Format Interchangeable Core (SFIC) to enhance flexibility and adaptability for various applications. With a 2-3/4 inch backset and a durable satin chrome finish, this Grade 1 lock ensures reliable performance and longevity. The AD400 series is engineered for modularity, allowing easy customization to fit current and future access control needs. It integrates essential hardware including a credential reader, sensors, and a tamper switch, streamlining installation and functionality. The wireless capability means you can secure hard-to-wire areas without compromising on security-ideal for historical buildings and sensitive environments. Offering compatibility with multiple credential technologies such as Schlage MiFare, NFC mobile, and proximity, this lock supports an open architecture platform for integration with popular access control systems. Key features include secure encrypted data transmission, a quick credential verification time of less than one second, and a battery life of up to two years. Experience cutting-edge security with the Schlage AD400 electronic lock, designed to meet the evolving demands of modern facilities.

KIT - Keypad Networked Wireless Classroom/Storeroom, Cylindrical Lock, Sparta Lever, SFIC (Small Format IC), Less Core, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock, and more compatibility with existing access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and changed to meet future needs without removing it from the door. To simplify installation, the AD series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit, and request-to-enter sensors, door position switch, tamper switch, and more. The AD-400 wireless networked lock gives you many of the key benefits of a hardwired access control system—without the wires. This allows you to secure doors that were traditionally difficult to run wires to in the past and increase the security throughout your facility.

Features:

• Open architecture platform - integrated into most popular physical access control systems through our PACS Alliance program
• Multi-technology credential compatibility includes Schlage MiFare, NFC mobile, and proximity
• Optional support for HID smart and NFC mobile credentials
• Panel interface options ensure seamless communication with the access control system
• Secure encrypted data transmission
• Unique communication protocols won’t interfere with other wireless networks
• ‘Wake up on Radio’ feature enables centralized lockdown in less than 10 seconds while still optimizing battery life up to 2 years
• Non-invasive wireless installation for historic buildings and sensitive areas
• Wireless accessories available for remote, gate, elevator, and portable or temporary (mustering) applications

AD-400 Electronic Lock Specifications:

• Modulation: 900 MHz spread spectrum, direct sequence, 10 channels
• Frequency range: 902-928 MHz
• Transmission/encryption: AES-128 bit key
• Credential verification time: < 1 second
• Wake-Up on Radio: Responds to lock/unlock command from host in less than 10 seconds in battery powered applications (per field configuration)
• Communication range: Up to 200 ft with obstructions (normal building construction), up to 1000 ft clear line of sight
• RF interference avoidance: Configurable dynamic channel switching
• Data rate: RF: 40 kbps
• Visual/audible communications: Tri-colored LED's and audible indicators (field configurable)
• System interface: RS-485, Wiegand, or Clock & Data via PIM400 to host
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior 31° to 151°F (-35° to 66&edg;C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 - 100% non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
• Accessories: Panel interface module (PIM400), handheld device (HHD), remote antennas for PIM400 to extend range, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door Thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Latch Bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8"
• Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• FMK: FIPS 201-1 compliant multi-technology + keypad (125 kHz and 13.56 MHz)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial

Resources

• Cut Sheet
