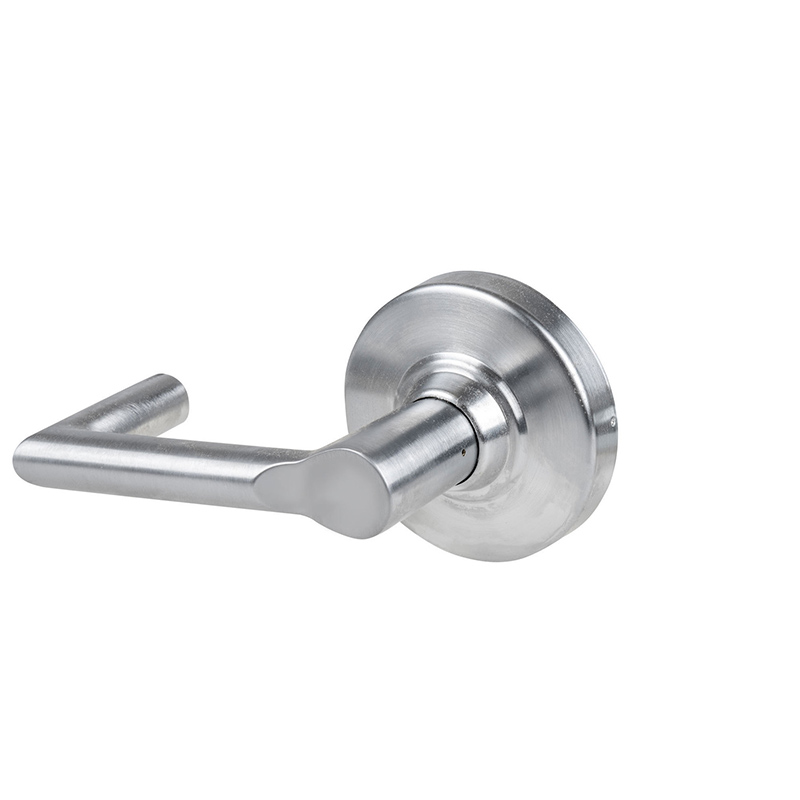

Schlage Commercial ALX170BRK626 ALX Series Grade 2 Single Dummy Boardwalk Lever Trim features a modern and stylish satin chrome finish that enhances the aesthetics of any door. Designed for mechanical commercial locksets, this lever trim is ideal for applications where a functional handle is needed without the locking mechanism. Its Boardwalk lever design not only offers a sleek look but also ensures a comfortable grip for easy operation. Measuring 4-15/16 inches in length with a projection of 3-1/16 inches and a rose size of 3-7/16 inches, this product is suitable for door thickness ranging from 1-3/8 inches to 1-3/4 inches, making it versatile for various installations. The reversible handing allows for flexible mounting options, accommodating different door configurations effortlessly. Constructed from durable steel and zinc dichromated materials, the ALX170BRK626 is built to withstand daily wear and tear while providing long-lasting performance. Additionally, it is UL listed for 3-hour fire doors, ensuring safety compliance in commercial settings. With a 10-year limited warranty, you can trust the reliability of Schlage's craftsmanship. Enhance your space with this functional and elegant lever trim, perfect for both building professionals and discerning homeowners.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Boardwalk Lever
Dimension: 4-15/16" Lever with 3-1/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 170-Single Dummy Trim
Function Family: Dummy
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: BRK - Boardwalk
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Boardwalk
Leverknob Design: BRK - Boardwalk Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Function Description: No key; rigid plain lever outside; no hardware inside; no latchbolt
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-1/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: RHO - Rhodes
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Wood/Metal Screws
Series: ALX Series
Ship Weight: 5 lbs.
Structure Function: 170
Structure Outside Finish: 626
Structure Outside Trim: BRK
Structure Series: ALX
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
