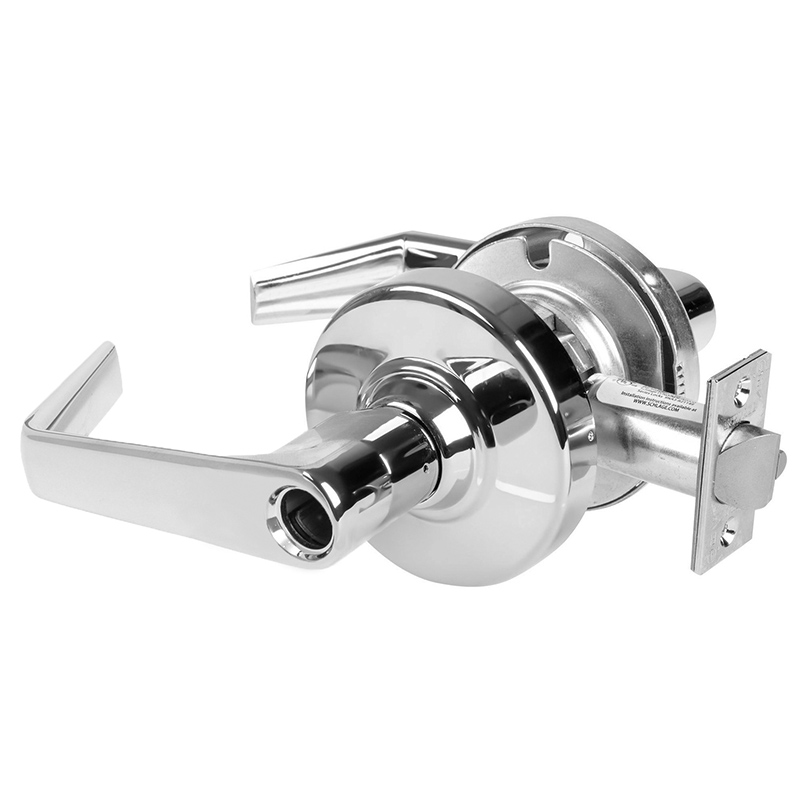

Schlage Commercial ALX70LSAT625 ALX Series Grade 2 Classroom Saturn Lever Lock Less Cylinder is engineered for robust performance in educational and commercial environments. This lock features a 2-3/4" backset and is constructed with durable steel and zinc dichromated materials, ensuring longevity and reliability. The bright chrome finish not only offers a sleek appearance but also provides added resistance to wear and corrosion. Designed for doors ranging from 1-3/8" to 1-3/4" thick, the ALX Series lever lock incorporates a 2-1/8" crossbore with two 5/16" post holes for easy installation. Its reversible handing allows for versatile application, accommodating various entry configurations. The classroom function enhances security while permitting free egress, making it ideal for schools and public buildings. The lock is UL Listed for 3-hour fire doors, ensuring compliance with safety regulations. The included ANSI strike features dimensions of 4-7/8" with a 1-1/4" lip, providing a secure fit. Backed by a 10-year limited warranty, the Schlage ALX70LSAT625 is a reliable choice for those seeking a blend of functionality and style in their door hardware solutions.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F84 - Classroom
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Design: Saturn Lever
Dimension: 4-7/16" Lever with 2-15/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" - 1-3/4"
Finish: Bright Chrome
Finish Code: 625
Finish Description: Bright Chrome
Finish Family: Polished Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: Classroom
Function Family: Classroom
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Saturn Lever
Lever Knob Design Name: Saturn
Leverknob Design: SAT - Saturn Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Classroom Lock
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541275
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 2-15/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: Rhodes Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
