Schlage B250J 605 Grade 2 Single Cylinder DeadlatchSchlage B250J 605 Grade 2 Single Cyl Deadlatch offers robust security and reliability for various commercial applications. Designed with a Grade 2 rating, this single cylinder deadlatch is particularly well-suited for storage cupboards, utility panels, and pool or apartment gates. Its bright brass finish not only enhances aesthetic appeal but also ensures durability in everyday use. The B250 Series features a 9/16" throw that effectively resists pry-in attacks and shimming attempts, making it a trusted choice for safety-conscious property owners. Precision-built with brass 6-pin cylinders and nickel silver pins, it guarantees smooth operation and longevity. The thumbturn "holdback" feature is an added convenience, allowing users to keep the deadlatch retracted when necessary. This deadlatch accepts a variety of high-security and interchangeable core cylinders, making it versatile for different locking needs. Its exclusive concealed wood frame reinforcer protects against kick-in attacks, while the reinforced cylinder collar adds an extra layer of security against wrenching and prying. Suitable for door thicknesses between 1-1/2" and 2-1/8", the Schlage B250J is a reliable solution for enhancing security in both commercial and residential settings.
Grade 2 Single Cyl Deadlatch

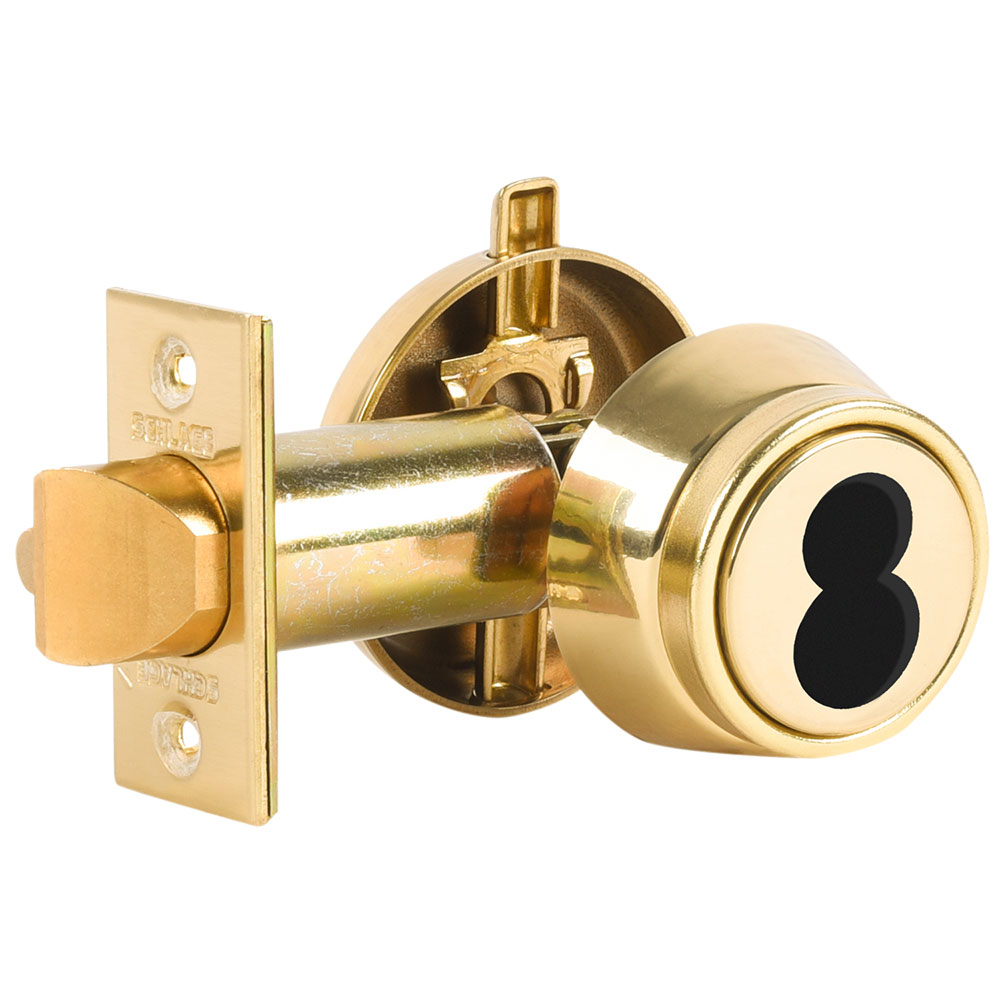

Grade 2 Single Cylinder Deadlatch, Schlage FSIC Less Core, 2-3/8" Backset, Bright Brass Finish
The B250 Series is a range of deadlatches designed for commercial applications. The B250 Series is ideally suited for storage cupboards and non-fire rated service ducts. The B250 is suitable for fire rated duct doors when fitted with a B160 Rose & Turn.
Ideal for pool, apartment and condominium gates, utility panels and pipe chases.
Tough and reliable, the Schlage B250 Series has been considered the industry standard for tubular deadlatches for decades. Accepts Primus XP access control cylinder, Primus UL437 Listed high security cylinder, full size interchangeable core cylinder and Primus interchangeable core cylinder.
- 9⁄16" (14 mm) throw deadlatch resists pry-in attacks and “shimming” of the latch
- Precision-built brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
- Tough nickel silver keys for smooth, long-lasting operation
- Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
- Cylinder collar reinforced with security inserts to resist wrenching and prying
- Thumbturn "holdback" feature retains the deadlatch in a retracted position when desired
Attributes
Ansi Function: E0122 - Single Cylinder Deadlatch
Bolt Projection: 1/2" Latch
Commercial Residential: Commercial
Cylinder Type: Schlage FSIC Less Core
Door Thickness: 1-1/2" - 2-1/8"
Dust Box: Plastic
Finish: 605/US3
Finish Family: Polished Brass
Function: 250-Single Cylinder Deadlatch
Grade: Grade 2
Installation: Commercial
Limited Warranty: 10 Years
Lock Face Size: 2-1/4" x 1-1/8"
Pack Height: 3"
Pack Length: 5.75"
Pack Qty: 1
Pack Width: 4.5"
Pbs Options: 220322760
Series: B250 Series Deadbolts
Ship Weight: 2 lbs.
Std Latch Backset Dim: 2-3/8"
Std Latch Number: 12-100
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 2-3/4"
Std Strike Number: 10-001
Std Strike Type: T-Square Corner
Std Strike Width: 1-1/8"
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
