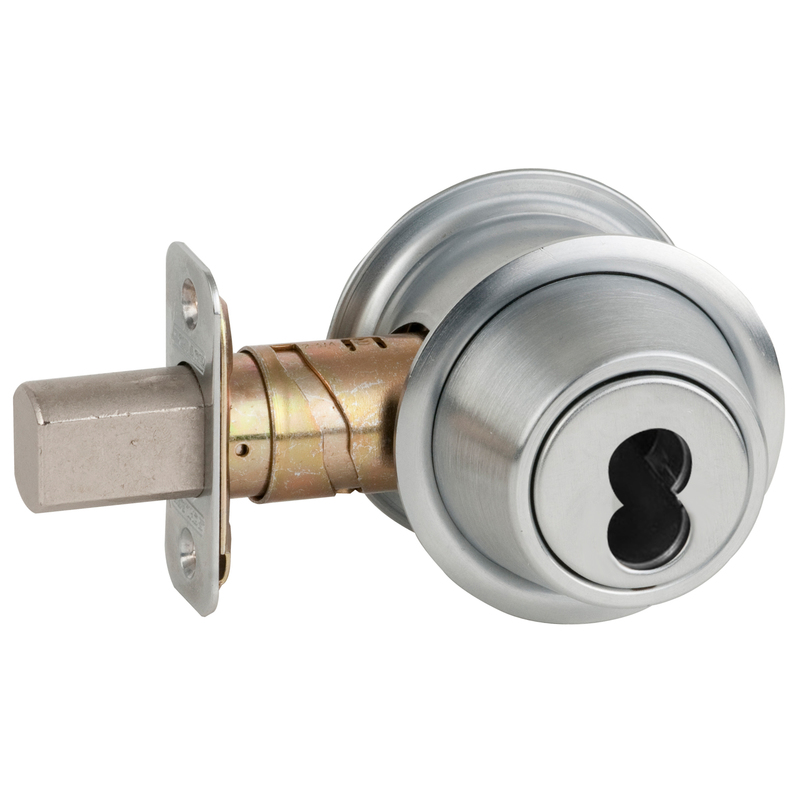

Schlage B560FJ 626 Single Cylinder DeadboltSchlage B560FJ 626 Single Cylinder Deadbolt offers a robust solution for enhancing security in commercial settings. This Grade 2 fire-rated deadbolt is designed for durability and reliability, featuring a Schlage FSIC less core that allows for customizable keying options. With an adjustable backset of 2-3/8" and 2-3/4", it fits nearly every door you service, making it an ideal choice for locksmiths and building professionals alike. This revolutionary deadbolt not only secures your entry points but also enhances lock strength on the jamb side, ensuring improved resistance against forced entry. The integrated anti-pry shield protects the latch, while thicker metal security strikes with a third screw provide deeper anchoring for added peace of mind. A seamless steel latch construction and a 10% larger diameter deadbolt further bolster its security features. Designed with user accessibility in mind, the large, ADA-compliant thumbturn makes operation effortless. Additionally, it meets UL 10B and UL 10C requirements, confirming its reliability in fire-rated applications. With its sleek satin chrome finish, the Schlage B560FJ is as stylish as it is secure, making it a perfect fit for any commercial environment.
Single Cylinder Deadbolt
Grade 2 Fire Rated Single Cylinder Deadbolt, Schlage FSIC Less Core, Adjustable 2-3/8" and 2-3/4" Backset, Satin Chrome Finish
The B500 Series deadbolt accepts every Schlage cylinder on the market, fits virtually every door you service, and enhances lock strength on the jamb side of the door.
A revolutionary new deadbolt that delivers higher security and tougher performance.
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
- Adjustable backset with lock-in-place helix design
- Integrated anti-pry shield protects latch
- Thicker metal security strike back-up on jamb side
- Security strike on jamb has third screw for stronger, deeper anchoring
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
- Tapered front housing that can’t be unscrewed
- Integrated trim piece for fewer pieces out of the box
- Large, easy-to-use, ADA compliant thumbturn
- Meets UL 10B andd UL 10C requirements
Attributes
Manufacturer surcharge: $ 0.0
Ansi Function: E0152 - Single Cylinder Deadbolt
Bolt Projection: 1 In.
Commercial Residential: Commercial
Cylinder Type: Schlage FSIC Less Core
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: 626/US26D
Fire Rated: Yes
Fire Rating: Yes
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Installation: Commercial
Lock Face Size: 2-1/4 In. x 1 In.
Pack Height: 3"
Pack Length: 5.75"
Pack Qty: 1
Pack Width: 4.5"
Pbs Options: '137454490,12260133
Series: B500 Series Deadbolts
Ship Weight: 2 lbs.
Std Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Std Latch Number: 12-294
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4 In.
Std Strike Number: 10-094
Std Strike Type: Flat
Std Strike Width: 1-1/8 In.
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
