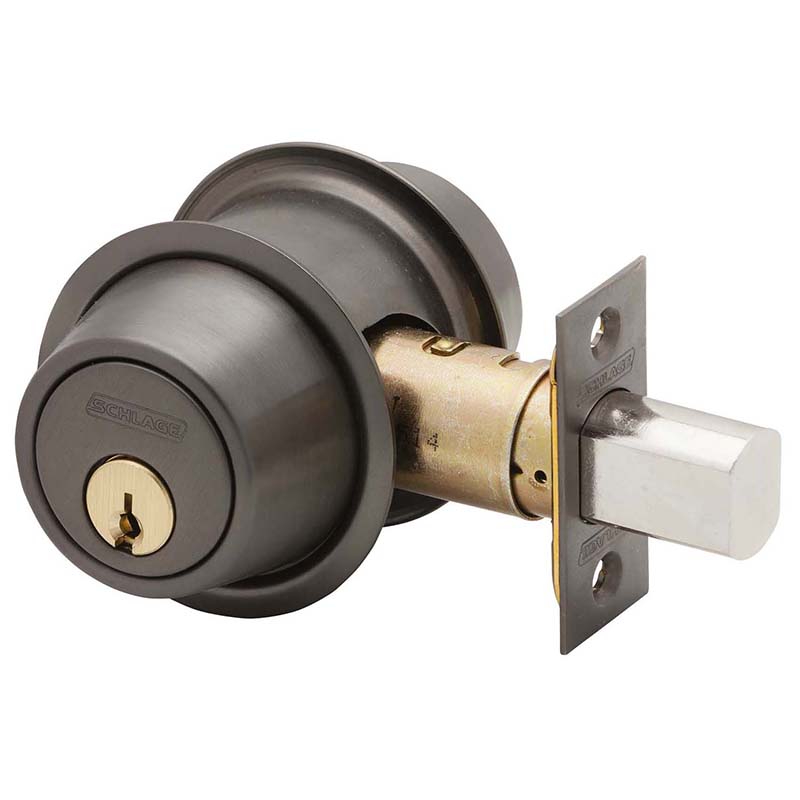

Schlage Commercial B563P613 Grade 2 Classroom Deadbolt with C Keyway offers superior security and functionality for educational and commercial environments. Designed for ease of use, this deadbolt can be thrown or retracted via a key from the outside, while the inside turn unit allows for simple retraction of the bolt. With an ANSI Certification of A156.36 and a UL listing for a 3-hour fire door, this lock ensures compliance with critical safety standards. Accommodating doors ranging from 1-3/8" to 1-7/8" thick, the B563P features an adjustable backset of either 2-3/8" or 2-3/4", making it versatile for various installations. The oil-rubbed bronze finish not only adds an aesthetic appeal but also enhances durability, ensuring long-lasting performance. This commercial-grade lockset includes a square corner deadbolt strike and a 6-pin cylinder for added security. With a limited 3-year mechanical warranty, you can trust in the quality and craftsmanship that Schlage has delivered for over 90 years. The B563P613 is the ideal choice for those seeking a reliable, robust locking solution for classrooms or business settings.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: 3.5%
Ansi: A156.36, 2010
Ansi Function: E0172 - Classroom Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Dust Box: None
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Function: 563-Classroom Deadbolt Lock
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Keying: Keyed 5
Keys: 5-pin, C section
Keyway: S123
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Classroom Thumbturn Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-12-04
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156132850
