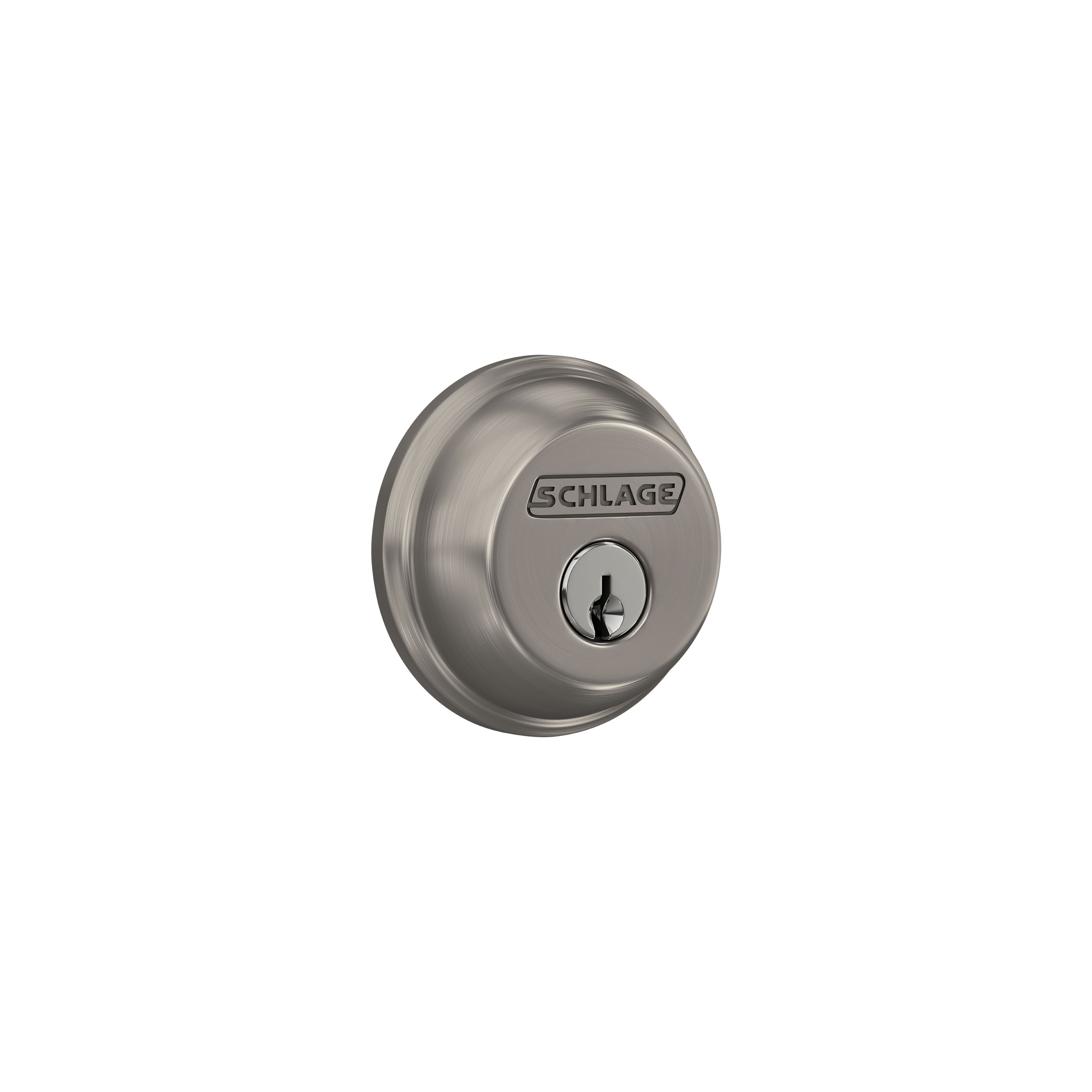

Schlage Residential B60F619 Fire Rated Single Cylinder Deadbolt C Keyway with 12397 Latch and 10116 Strike in Satin Nickel Finish combines robust security with elegant design. This mechanical lockset is ideal for residential applications, providing peace of mind with its 3-hour fire rating. The single cylinder function allows for easy operation from the exterior with a key, while the interior can be locked or unlocked with a turn of the thumb. Designed to fit doors ranging from 1-3/8" to 1-3/4" thick, the B60F619 features a round corner adjustable backset accommodating either 2-3/8" or 2-3/4" backsets, ensuring versatile installation options. Its 1-1/2" or 2-1/8" crossbore sizes make it compatible with various door configurations. The latch faceplate measures 1" x 2-1/4", while the round corner deadbolt strike measures 1-1/8" x 2-3/4", providing a seamless fit. Crafted from durable zinc and finished in satin nickel, this deadbolt not only enhances security but also complements modern home aesthetics. The Schlage C keyway and 5-pin cylinder offer advanced protection against unauthorized access. With a limited lifetime mechanical and finish warranty, the B60F619 is a reliable choice for homeowners seeking quality and safety in their entryways.
Fire Rated Single Cylinder Deadbolt C Keyway with 12397 Latch and 10116 Strike Satin Nickel Finish
Backset: Round Corner UL Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset
Category: Mechanical Residential Locksets
Crossbore Size: 1-1/2" or 2-1/8" Bore
Dimension: 2-1/2" Diameter; 1" Projection
Door Range: 1-3/8" to 1-3/4"
Finish: Satin Nickel
Finish Code: 619
Fire Rated: Yes
Function: Single Cylinder
Handing: Reversible
Hazardous Material: NO
Keyway: Schlage C Keyway
Latch Faceplate Dimension: 1" x 2-1/4"
Manufacturer Warranty: Limited Lifetime Mechanical & Finish Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Order_ Qty: 1
Rose Escutcheon Design: Round Rose
Series: B60 Series
Strike: Round Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Residential Deadbolts
Ul Listing Type: 3 Hour Fire Rated
