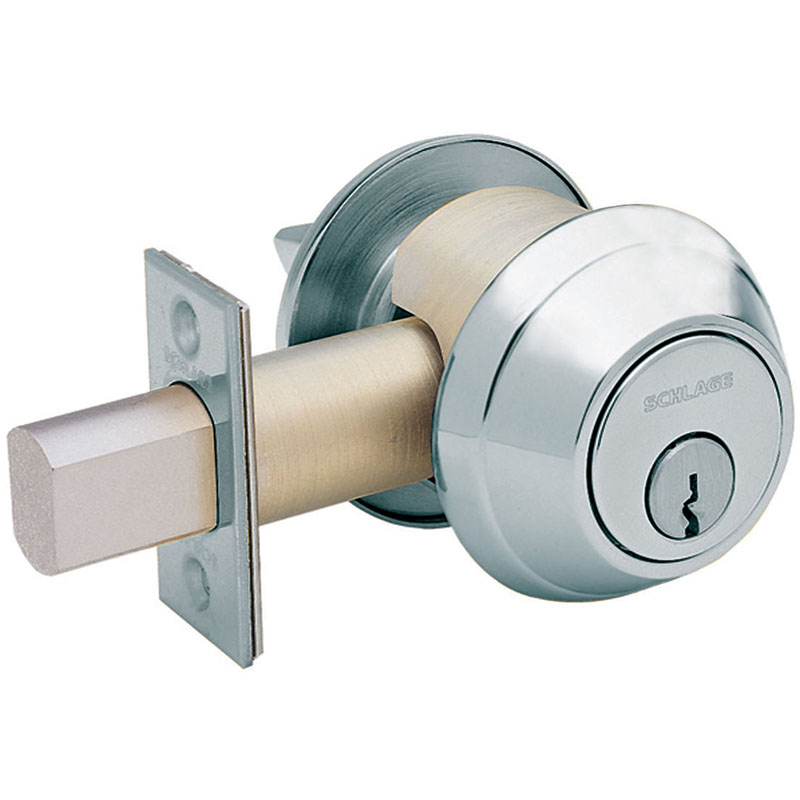

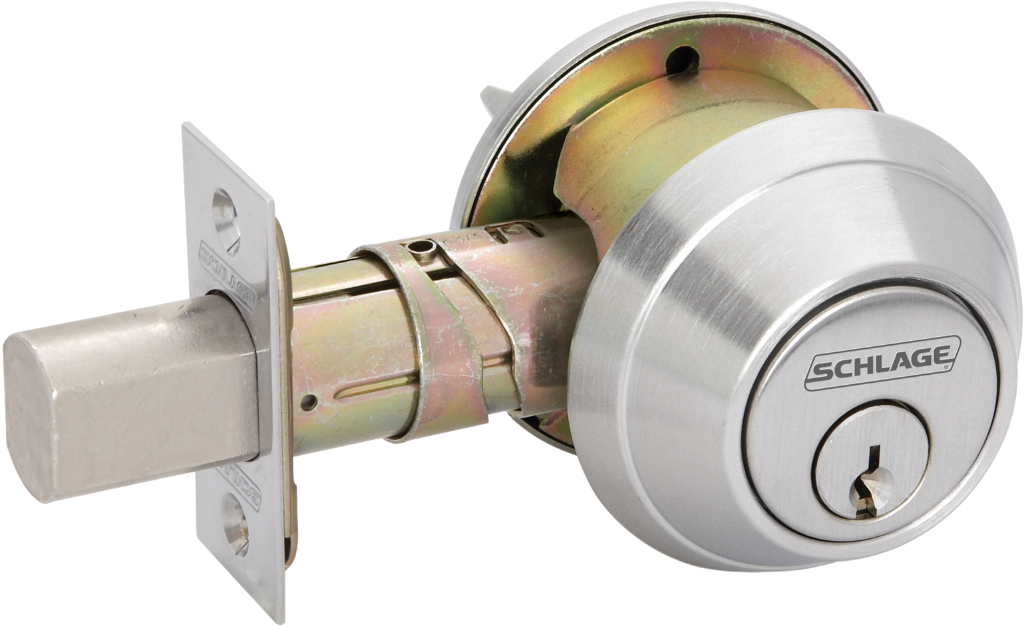

Schlage Commercial B663P626 Grade 1 Classroom Deadbolt offers superior security with an emphasis on durability and ease of use. Designed specifically for commercial environments, this deadbolt features a C keyway and an inside turn unit that retracts the bolt only, ensuring controlled access. With ANSI certification A156.36, it stands as a robust choice for any facility. This model accommodates doors ranging from 1-5/8" to 2" thick and includes an adjustable backset of 2-3/8" or 2-3/4", making it versatile for various installations. The deadbolt is UL Listed for 3-hour fire doors, providing peace of mind in emergency situations. Crafted from a zinc base material and finished in sleek satin chrome, it combines aesthetics with strength. Additionally, the square corner deadbolt strike measures 1-1/8" x 2-3/4", ensuring a secure fit. With a 6-pin cylinder and a limited 3-year mechanical warranty, Schlage stands behind the quality of this product. The B663P626 is a reliable solution for educational institutions, healthcare facilities, and commercial buildings, providing the security you need at critical moments. Experience the trusted performance synonymous with Schlage Commercial products.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 103738, 118464, B663P626
Ansi: ANSI A156.36-2010 Grade 1
Ansi Function: E0171 - Classroom Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 1"
Bolt Protection: 1 In.
Bolt Throw: 1"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder, Pinned 5
Dimension: 2-5/8" Diameter
Door Bore Size: 2-1/8"
Door Range: 1-5/8" to 2"
Door Thickness: 1-5/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-5/8"
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 663-Classroom Deadbolt Lock
Function Family: Classroom
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 2
Keyway: S123

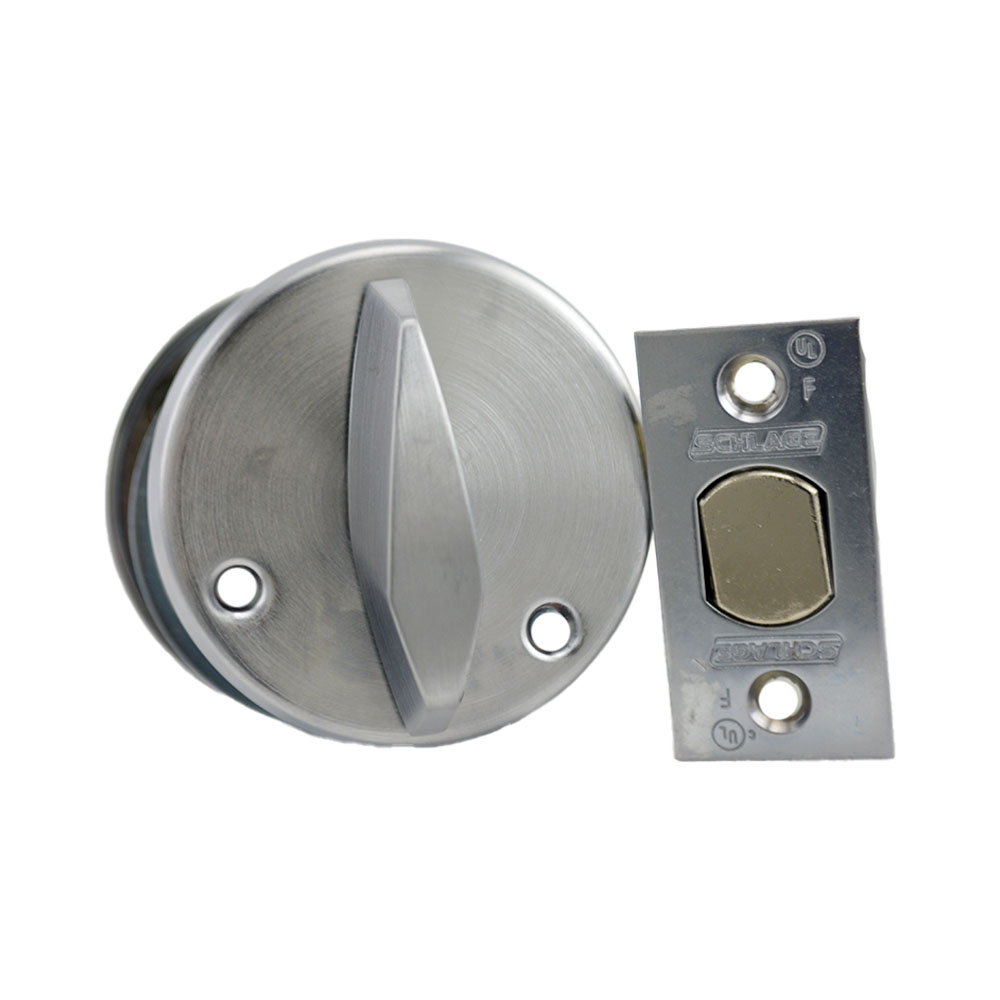

Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 12-631
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-10-17
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Screws: Combination
Series: B600 Series
Std Latch Backset Dim: 2-3/8" or 2-3/4"
Std Latch Number: 12-296
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Flat Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing: UL10B/10C Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 067853256817
