Schlage CO100-CY-40-KP-SPA-626-P-RH CO100-CY-40-KP-SPA-626-P-RH

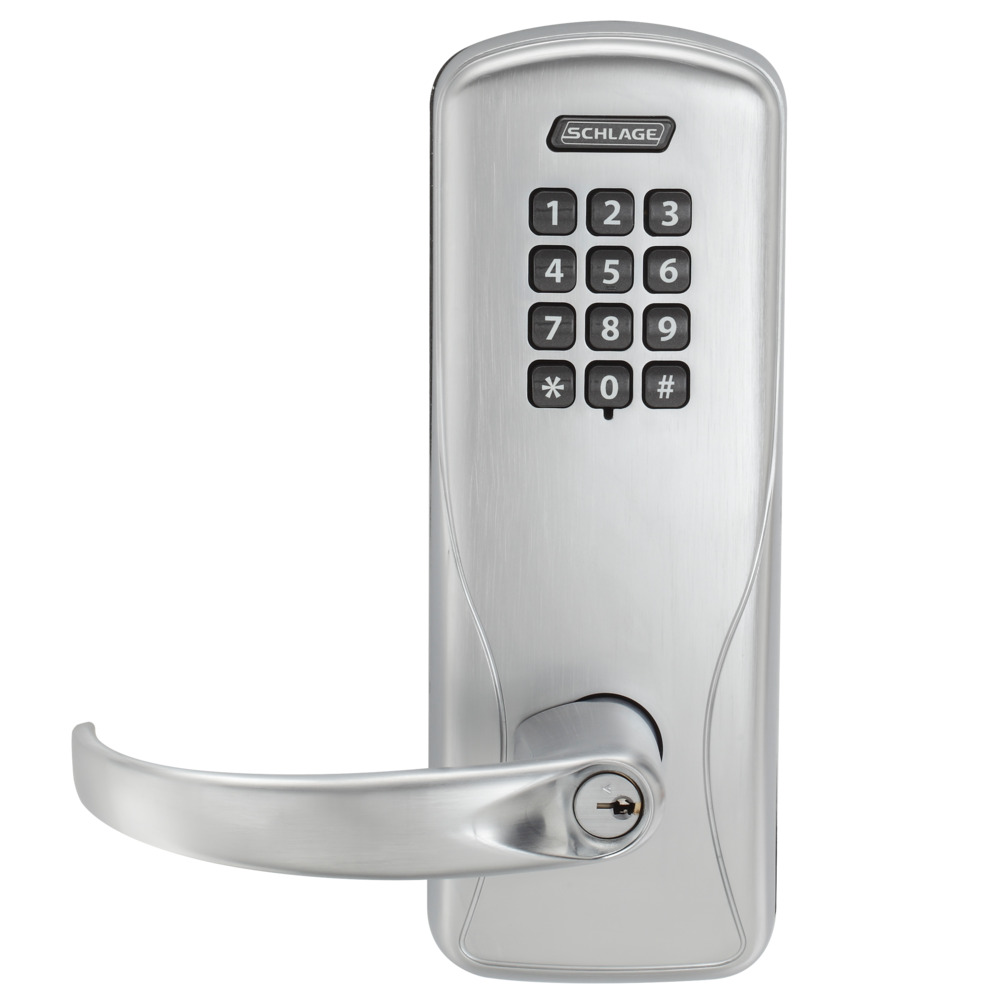

Images may not represent actual product and finish

Schlage CO100-CY-40-KP-SPA-626-P-RH CO100-CY-40-KP-SPA-626-P-RH

Your Price: $516.80
Retail Price:$1,292.0000
Your Savings:$775.20(60%)
Schlage CO100 Grade 1 Privacy Lock: Keypad access for 500 users, satin chrome finish, ideal for commercial applications.
Part Number : SCH_CO100CY40KPSPA626PRH
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
*
Schlage CO100-CY-40-KP-SPA-626-P-RH CO100-CY-40-KP-SPA-626-P-RH

Schlage Electronics CO100-CY-40-KP-SPA-626-P-RH is a Grade 1 privacy cylindrical lock that combines security and convenience in a sleek design. This keypad lock accommodates up to 500 users, allowing for easy management of individual access through unique PIN codes. The CO-100 operates as a standalone lock, eliminating the need for a complex network system while still offering robust security features. The conventional cylinder and dead latch mechanism provide reliable operation, complemented by the stylish Sparta lever in a satin chrome finish. Not only does this lock enhance the aesthetic of commercial spaces, but it also meets ADA compliance for accessibility. Designed for doors with a thickness of 1-3/4", the CO100 ensures a secure fit with a bolt projection and throw of 1/2". With a battery life of up to two years powered by four AA batteries, this lock is both efficient and dependable. Its fire rating of 3 hours underscores its safety features, making it suitable for various applications. The CO100 is easy to install and is an excellent choice for those seeking a versatile, high-quality locking solution that doesn't compromise on security or style.

CO100-CY-40-KP-SPA-626-P-RH

Grade 1 Privacy Cylindrical Lock, Keypad, 500 Users, Conventional Cylinder, Sparta Lever, Dead Latch, Satin Chrome Finish, Right-Handed

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.


Attributes

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 250 mA

Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1

Base Material: Brass or Bronze

Battery Life: 2 Years

Bolt Projection: 1/2"

Bolt Throw: 1/2"

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Conventional Cylinder

Design A: SPA - Sparta Lever

Door Thickness: 1-3/4"

Dust Box: No

Finish: 626/US26D

Finish Description: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 40-Privacy

Function Family: Privacy

Grade: Grade 1

Handing: Right-Handed

Installation: Commercial

Keying: Keyed Different

Keypad Type: Pushbutton

Keys: Cut

Latch Backset Dim: 2-3/4"

Latch Backset Dimension: 2-3/4"

Leverknob Design: SPA - Sparta Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 2 Years

Lock Platform: Cylindrical Lock with Keypad

Of Keys: 2

Operating Voltage: 4 to 7 VDC

Origin: Mexico

Pack Qty: 1

Pins: 6

Power: 4 AA Batteries

Projection: 3-1/2"

Reader Technology: Keypad Reader

Rose Number: 03-042 RHO 626

Roseescutcheon Design: RHO - Rhodes

Roseescutcheon Dimensions: 3-7/16" Diameter

Screws: Combination

Series: CO Series Standalone Electronic Locks

Software Included: No

Std Keyway: Schlage C

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 13-247 626

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 1-1/4"

Std Strike Number: 10-025 626

Std Strike Type: ANSI Strike

Std Strike Width: 4-7/8"

Strike Dimensions: 4-7/8" x 1-1/4"

Subtype: Cylindrical Locks with Keypad Trim

Type: Integrated and Pushbutton

Ul Listing: UL 294, ULC S319, UL 10C Listed

Unit of Measure: Each

Users: 500
