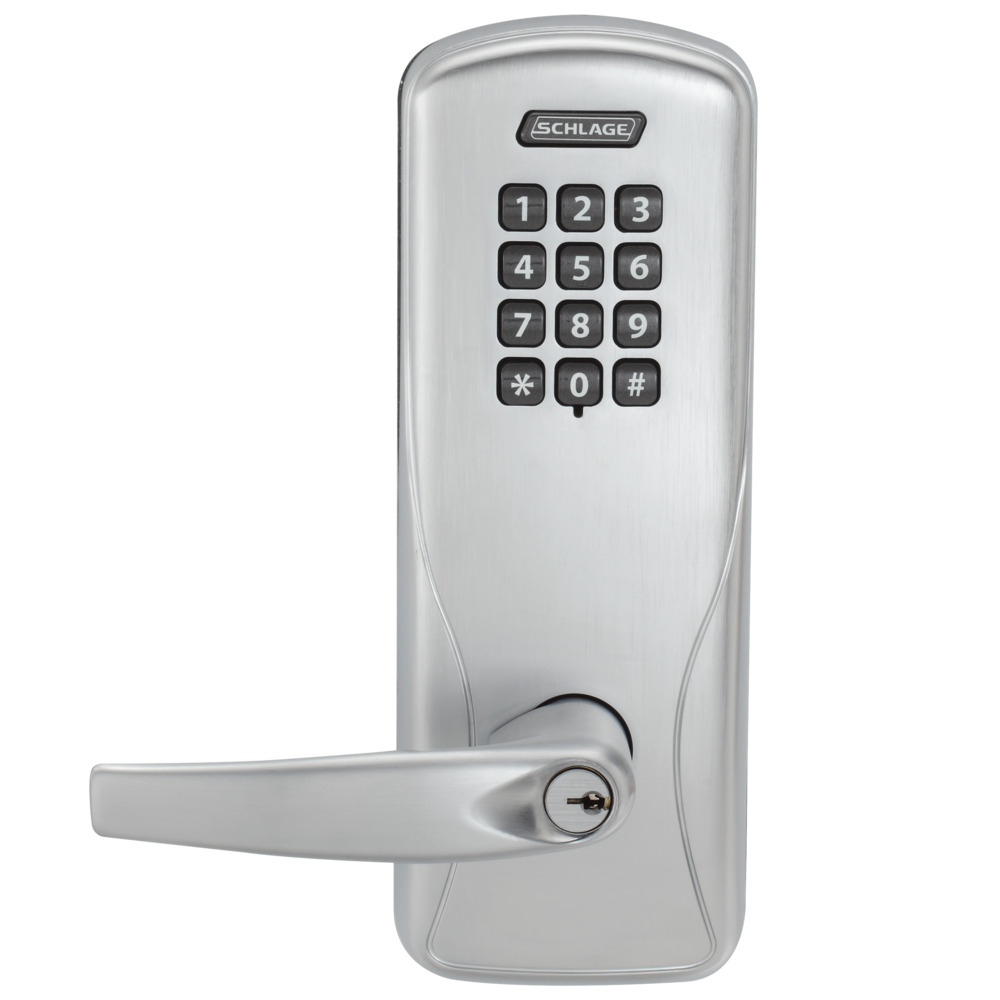

Schlage CO100-CY-50-KP-ATH-626-P-RH CO100-CY-50-KP-ATH-626-P-RH
Images may not represent actual product and finish

Schlage CO100-CY-50-KP-ATH-626-P-RH CO100-CY-50-KP-ATH-626-P-RH

Your Price: $516.80
Retail Price:$1,292.0000
Your Savings:$775.20(60%)
Schlage CO100 Grade 1 keypad lock offers secure access for up to 500 users with a sleek satin chrome finish.
Part Number : SCH_CO100CY50KPATH626PRH
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
*
Schlage CO100-CY-50-KP-ATH-626-P-RH CO100-CY-50-KP-ATH-626-P-RH

Schlage Electronics CO100-CY-50-KP-ATH-626-P-RH is a Grade 1 Entrance/Office Cylindrical Lock designed for both security and convenience. This standalone electronic lock features a user-friendly keypad that accommodates up to 500 unique PIN codes, allowing for easy management of access without the hassle of traditional keys. With its sleek Satin Chrome finish and Athens Lever design, it not only enhances security but also adds a modern touch to any commercial entry point. The CO-100 is manually programmable, enabling you to add or delete PIN codes directly at the door, ensuring that your key system remains secure and adaptable. Built with a dead latch and conventional cylinder, this lock is both robust and reliable. It is fire rated for up to 3 hours, making it suitable for various commercial applications. Other specifications include a 1/2" bolt projection, compatibility with doors 1-3/4" thick, and an operational voltage of 4 to 7 VDC. Powered by four AA batteries, the lock boasts a battery life of approximately two years. Additionally, it meets ANSI/BHMA A156.25 standards, ensuring high-quality performance and durability. Upgrade your entryway with Schlage Electronics CO100-CY-50-KP-ATH-626-P-RH for peace of mind in security.

CO100-CY-50-KP-ATH-626-P-RH

Grade 1 Entrance/Office Cylindrical Lock, Keypad, 500 Users, Conventional Cylinder, Athens Lever, Dead Latch, Satin Chrome Finish, Right-Handed

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.


Attributes

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 250 mA

Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1

Base Material: Brass or Bronze

Battery Life: 2 Years

Bolt Projection: 1/2"

Bolt Throw: 1/2"

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Conventional Cylinder

Design A: ATH - Athens Lever

Door Thickness: 1-3/4"

Dust Box: No

Finish: 626/US26D

Finish Description: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 50-Entrance/Office

Function Family: Entrance/Office

Grade: Grade 1

Handing: Right-Handed

Installation: Commercial

Keying: Keyed Different

Keypad Type: Pushbutton

Keys: Cut

Latch Backset Dim: 2-3/4"

Latch Backset Dimension: 2-3/4"

Leverknob Design: ATH - Athens Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 2 Years

Lock Platform: Cylindrical Lock with Keypad

Of Keys: 2

Operating Voltage: 4 to 7 VDC

Origin: Mexico

Pack Qty: 1

Pins: 6

Power: 4 AA Batteries

Projection: 3-5/16"

Reader Technology: Keypad Reader

Rose Number: 03-042 RHO 626

Roseescutcheon Design: RHO - Rhodes

Roseescutcheon Dimensions: 3-7/16" Diameter

Screws: Combination

Series: CO Series Standalone Electronic Locks

Software Included: No

Std Keyway: Schlage C

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 13-247 626

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 1-1/4"

Std Strike Number: 10-025 626

Std Strike Type: ANSI Strike

Std Strike Width: 4-7/8"

Strike Dimensions: 4-7/8" x 1-1/4"

Subtype: Cylindrical Locks with Keypad Trim

Type: Integrated and Pushbutton

Ul Listing: UL 294, ULC S319, UL 10C Listed

Unit of Measure: Each

Users: 500
