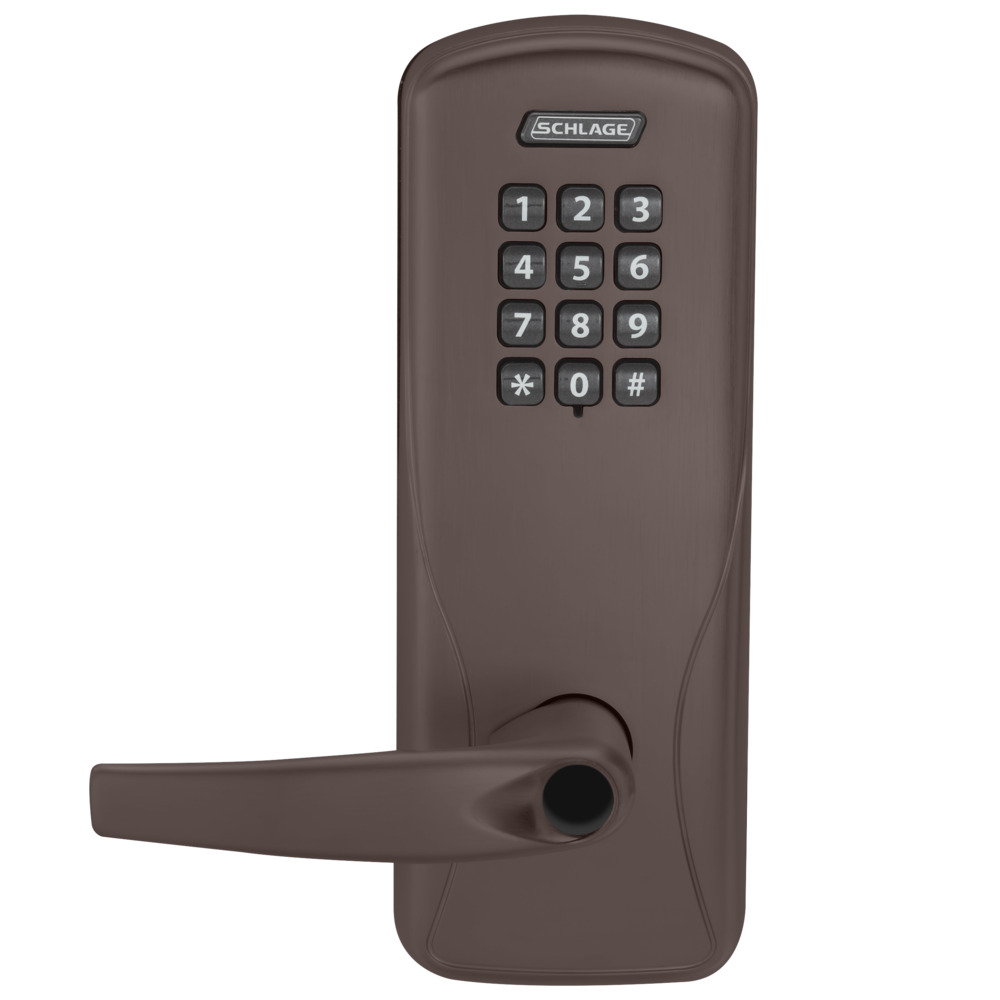

Schlage Electronics CO100-CY-50-KP-ATH-643E-L-RH is a Grade 1 Entrance/Office Cylindrical Lock designed for maximum security and convenience. Featuring a keypad for entry, this lock accommodates up to 500 unique users, making it perfect for high-traffic areas. The CO-100 operates without the complexity of a fully networked system, as it allows manual programming and stores user rights directly on the lock. Each user can be assigned a unique PIN code, significantly reducing the need for mechanical keys and enhancing the integrity of your key system. Constructed from durable steel and finished in an elegant Aged Bronze, this right-handed lock comes with a dead latch and an Athens Lever design, ensuring both style and functionality. With a fire rating of up to 3 hours, it meets stringent safety standards and is UL listed, providing peace of mind. The lock operates on 4 AA batteries, boasting a battery life of up to 2 years. Designed for commercial use, the CO100 is ADA compliant, making it accessible for all users. Installation is straightforward, and with a sleek design featuring a curved lever, it complements any architectural style. Choose Schlage Electronics CO100 for robust security that seamlessly integrates into your environment.
Grade 1 Entrance/Office Cylindrical Lock, Keypad, 500 Users, Less Conventional Cylinder, Athens Lever, Dead Latch, Aged Bronze Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Steel
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Design A: ATH - Athens Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 643E/US11E
Finish Description: 643E/US11E
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 50-Entrance/Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-5/16"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 643E
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 643E
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 643E
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
