Schlage CO100-CY-50-KP-RHO-606-P-RH CO100-CY-50-KP-RHO-606-P-RH

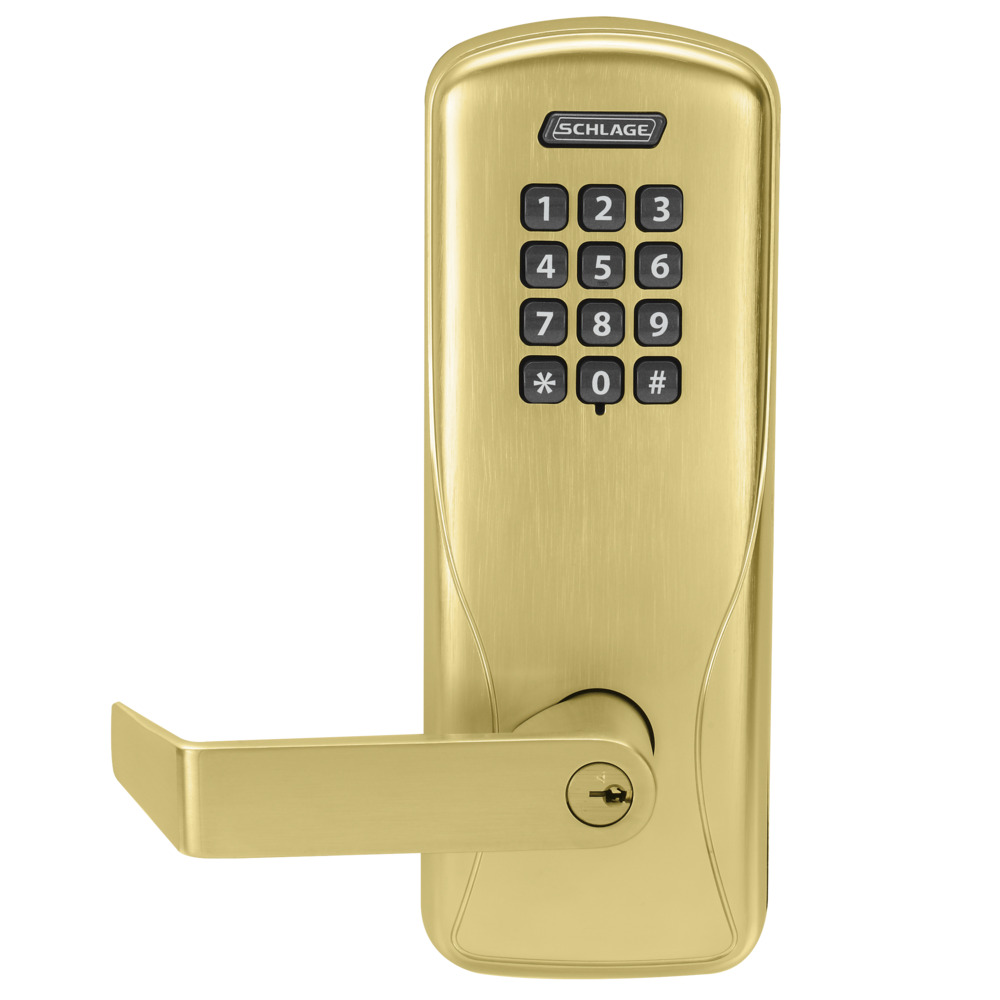

Images may not represent actual product and finish

Schlage CO100-CY-50-KP-RHO-606-P-RH CO100-CY-50-KP-RHO-606-P-RH

Your Price: $592.40
Retail Price:$1,481.0000
Your Savings:$888.60(60%)
Schlage CO100 Grade 1 keypad lock offers secure access for up to 500 users with a sleek satin brass finish.
Part Number : SCH_CO100CY50KPRHO606PRH
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
*
Schlage CO100-CY-50-KP-RHO-606-P-RH CO100-CY-50-KP-RHO-606-P-RH

Schlage Electronics CO100-CY-50-KP-RHO-606-P-RH is a Grade 1 entrance and office cylindrical lock designed for optimal security and convenience. This keypad lock supports up to 500 unique users, allowing for easy management of access rights without the complexity of a fully networked system. With its conventional cylinder and robust Rhodes lever design, this lock is both functional and stylish, finished in a sleek satin brass that complements various architectural styles. The CO100 features a dead latch mechanism for enhanced security and is easily programmable on-site, enabling you to add or delete PIN codes at any time. This minimizes the reliance on mechanical keys, protecting the integrity of your key system. The lock operates on four AA batteries with an impressive two-year battery life, ensuring reliability for high-traffic commercial environments. Designed for right-handed installations, the CO100 is ADA compliant and fire-rated for three hours, making it a safe choice for any building. Its durability meets ANSI/BHMA A156.25 and A156.2 Series 4000 Grade 1 standards, confirming its strength and reliability. Choose the Schlage Electronics CO100 for an efficient, secure access solution tailored to your commercial needs.

CO100-CY-50-KP-RHO-606-P-RH

Grade 1 Entrance/Office Cylindrical Lock, Keypad, 500 Users, Conventional Cylinder, Rhodes Lever, Dead Latch, Satin Brass Finish, Right-Handed

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.


Attributes

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 250 mA

Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1

Base Material: Brass

Battery Life: 2 Years

Bolt Projection: 1/2"

Bolt Throw: 1/2"

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Conventional Cylinder

Design A: RHO - Rhodes Lever

Door Thickness: 1-3/4"

Dust Box: No

Finish: 606/US4

Finish Description: 606/US4

Finish Family: Matte Brass

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 50-Entrance/Office

Function Family: Entrance/Office

Grade: Grade 1

Handing: Right-Handed

Installation: Commercial

Keying: Keyed Different

Keypad Type: Pushbutton

Keys: Cut

Latch Backset Dim: 2-3/4"

Latch Backset Dimension: 2-3/4"

Leverknob Design: RHO - Rhodes Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 2 Years

Lock Platform: Cylindrical Lock with Keypad

Of Keys: 2

Operating Voltage: 4 to 7 VDC

Origin: Mexico

Pack Qty: 1

Pins: 6

Power: 4 AA Batteries

Projection: 2-15/16"

Reader Technology: Keypad Reader

Rose Number: 03-042 RHO 606

Roseescutcheon Design: RHO - Rhodes

Roseescutcheon Dimensions: 3-7/16" Diameter

Screws: Combination

Series: CO Series Standalone Electronic Locks

Software Included: No

Std Keyway: Schlage C

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 13-247 606

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 1-1/4"

Std Strike Number: 10-025 606

Std Strike Type: ANSI Strike

Std Strike Width: 4-7/8"

Strike Dimensions: 4-7/8" x 1-1/4"

Subtype: Cylindrical Locks with Keypad Trim

Type: Integrated and Pushbutton

Ul Listing: UL 294, ULC S319, UL 10C Listed

Unit of Measure: Each

Users: 500
