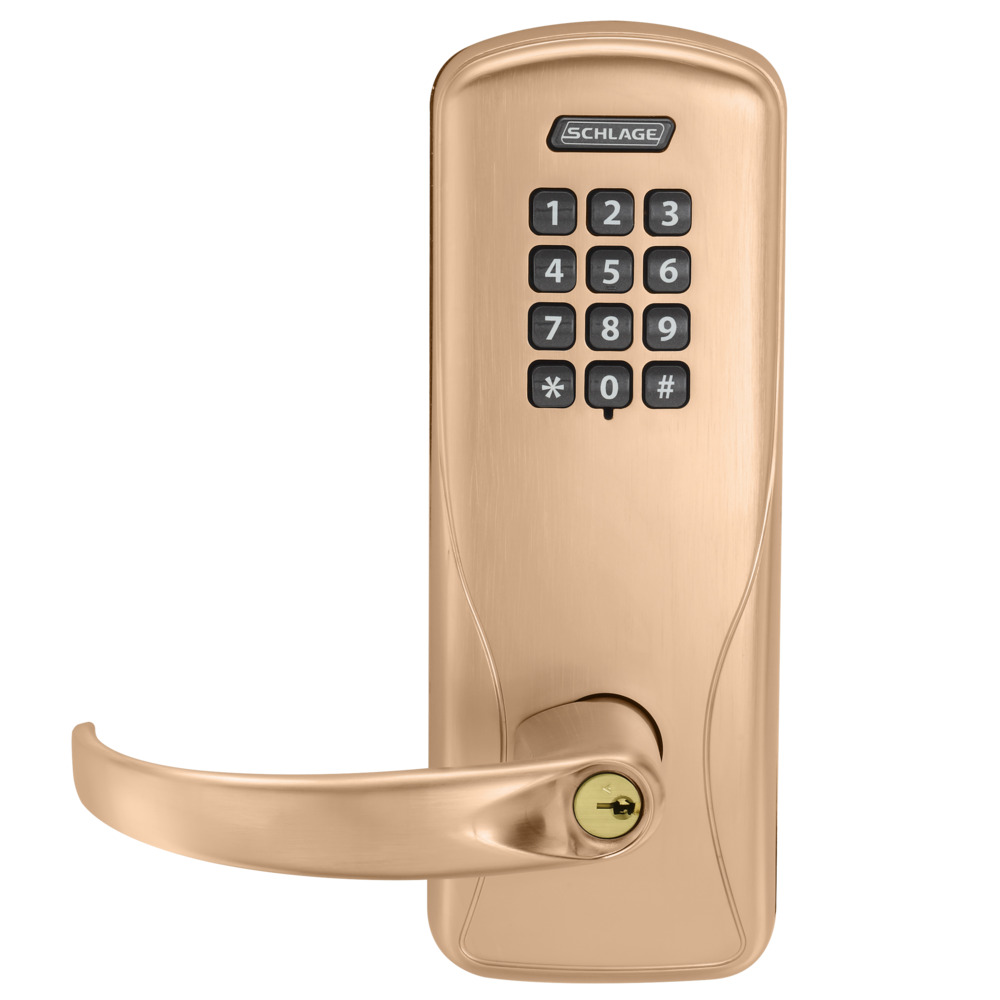

Schlage Electronics CO100-CY-50-KP-SPA-612-P-RH is a Grade 1 Entrance/Office Cylindrical Lock that combines robust security with user-friendly access control. Designed for commercial applications, this lock features a keypad that can accommodate up to 500 unique users, significantly reducing the reliance on traditional mechanical keys. The CO100 is a standalone unit, allowing for convenient manual programming right at the door. Users can easily add or delete PIN codes, enhancing security and simplifying key management. The lock boasts a durable satin bronze clear-coated finish that complements various architectural styles while ensuring longevity. Its right-handed design and compatibility with 1-3/4" thick doors make it versatile for different installations. Featuring a conventional cylinder, the lock includes a dead latch for added security, and it is fire-rated for up to 3 hours, making it suitable for safe exit in emergencies. With a battery life of 2 years powered by 4 AA batteries and an operating voltage of 4 to 7 VDC, this lock is built for reliability. ADA compliance ensures accessibility, making the CO100 an excellent choice for both building professionals and homeowners seeking peace of mind and convenience in their security solutions.
Grade 1 Entrance/Office Cylindrical Lock, Keypad, 500 Users, Conventional Cylinder, Sparta Lever, Dead Latch, Satin Bronze Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Bronze
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design A: SPA - Sparta Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 612/US10
Finish Description: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 50-Entrance/Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keying: Keyed Different
Keypad Type: Pushbutton
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Of Keys: 2
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-1/2"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 612
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 612
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 612
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
