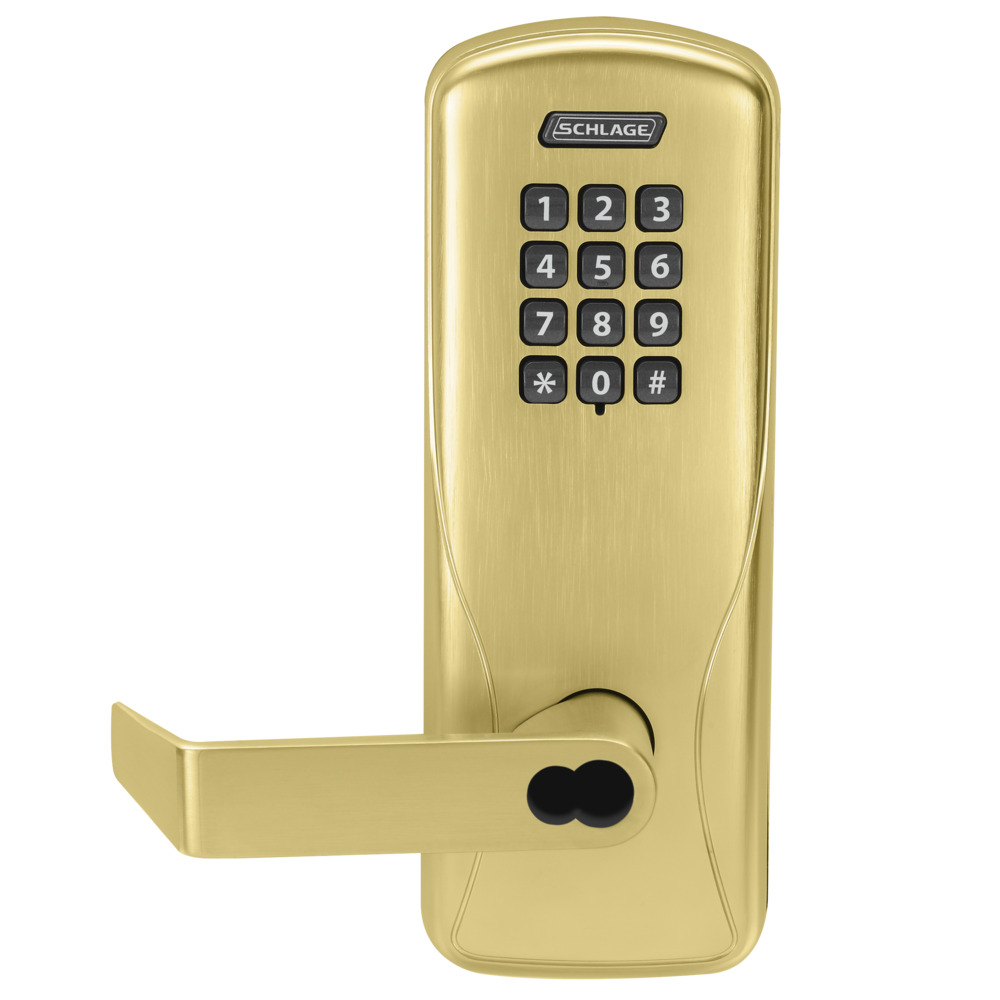

Schlage Electronics CO100-CY-70-KP-RHO-606-B-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock that combines robust security with user-friendly access control. Designed for commercial applications, this standalone electronic lock allows for manual programming, supporting up to 500 users with unique PIN codes. The CO-100 minimizes the issuance of mechanical keys, enhancing the integrity of your key system while enabling easy addition or deletion of PIN codes on-site. Featuring a sleek satin brass finish and the elegant Rhodes lever design, this right-handed lock is both functional and aesthetically pleasing. The CO100 is compatible with SFIC prep less core cylinders and is equipped with a dead latch for added security. Installation is straightforward, and the lock is ADA compliant, ensuring accessibility for all users. With a battery life of up to two years and an operating voltage of 4 to 7 VDC, the CO100 is designed for durability and longevity. Its fire rating of three hours adds an extra layer of safety, making it a reliable choice for various settings. Whether you’re upgrading security in a school, office, or storeroom, the Schlage CO100-CY-70-KP-RHO-606-B-RH delivers the perfect blend of convenience and advanced security features.
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, SFIC Prep Less Core, Rhodes Lever, Dead Latch, Satin Brass Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Brass
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Design A: RHO - Rhodes Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 606/US4
Finish Description: 606/US4
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 7
Power: 4 AA Batteries
Projection: 2-15/16"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 606
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 606
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 606
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
