Schlage CO100-CY-70-KP-RHO-619-J-RH CO100-CY-70-KP-RHO-619-J-RH
Images may not represent actual product and finish

Schlage CO100-CY-70-KP-RHO-619-J-RH CO100-CY-70-KP-RHO-619-J-RH

Your Price: $562.80
Retail Price:$1,407.0000
Your Savings:$844.20(60%)
Schlage CO100-CY-70-KP-RHO-619-J-RH: Grade 1 electronic cylindrical lock with keypad, supports 500 users, satin nickel finish.
Part Number : SCH_CO100CY70KPRHO619JRH
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
Schlage CO100-CY-70-KP-RHO-619-J-RH CO100-CY-70-KP-RHO-619-J-RH

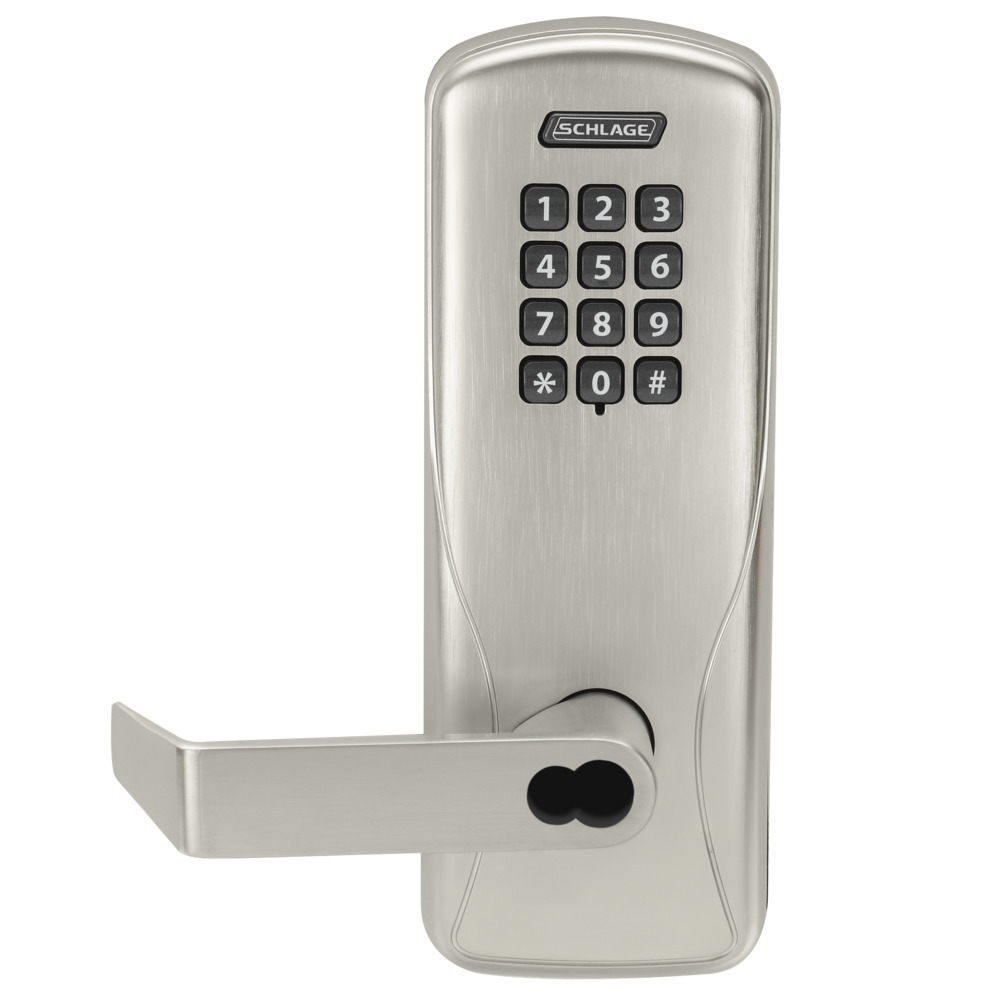

Schlage Electronics CO100-CY-70-KP-RHO-619-J-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock designed for enhanced security and user convenience. This keypad lock accommodates up to 500 users, each with unique PIN codes that can be easily added or removed at the door, significantly reducing the reliance on mechanical keys and enhancing your key system's integrity. The CO-100 is a standalone electronic lock that offers a simple, manual programming interface, making it an ideal choice for those who seek effective electronic access control without the complexities of a fully networked system. Featuring a satin nickel plated clear-coated finish, the lock's Rhodes lever design adds a stylish touch to any commercial setting. With a durable construction and a fire rating of up to three hours, this lock ensures both safety and reliability. The dead latch mechanism, along with a bolt projection of ½ inch, provides robust security. Designed for right-handed doors, it fits door thicknesses of 1-3/4 inches and operates on four AA batteries with a two-year battery life. Elevate your building's security with the Schlage Electronics CO100-CY-70-KP-RHO-619-J-RH, an excellent choice for commercial applications that demand both efficiency and style.

CO100-CY-70-KP-RHO-619-J-RH

Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, Schlage FSIC Prep Less Core, Rhodes Lever, Dead Latch, Satin Nickel Plated Clear Coated Finish, Right-Handed

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.


Attributes

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 250 mA

Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1

Base Material: Brass or Bronze

Battery Life: 2 Years

Bolt Projection: 1/2"

Bolt Throw: 1/2"

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Schlage FSIC Prep Less Core

Design A: RHO - Rhodes Lever

Door Thickness: 1-3/4"

Dust Box: No

Finish: 619/US15

Finish Description: 619/US15

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 70-Classroom/Storeroom

Function Family: Storeroom

Grade: Grade 1

Handing: Right-Handed

Installation: Commercial

Keypad Type: Pushbutton

Latch Backset Dim: 2-3/4"

Latch Backset Dimension: 2-3/4"

Leverknob Design: RHO - Rhodes Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 2 Years

Lock Platform: Cylindrical Lock with Keypad

Operating Voltage: 4 to 7 VDC

Origin: Mexico

Pack Qty: 1

Pins: 6

Power: 4 AA Batteries

Projection: 2-15/16"

Reader Technology: Keypad Reader

Rose Number: 03-042 RHO 619

Roseescutcheon Design: RHO - Rhodes

Roseescutcheon Dimensions: 3-7/16" Diameter

Screws: Combination

Series: CO Series Standalone Electronic Locks

Software Included: No

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 13-247 619

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 1-1/4"

Std Strike Number: 10-025 619

Std Strike Type: ANSI Strike

Std Strike Width: 4-7/8"

Strike Dimensions: 4-7/8" x 1-1/4"

Subtype: Cylindrical Locks with Keypad Trim

Type: Integrated and Pushbutton

Ul Listing: UL 294, ULC S319, UL 10C Listed

Unit of Measure: Each

Users: 500
