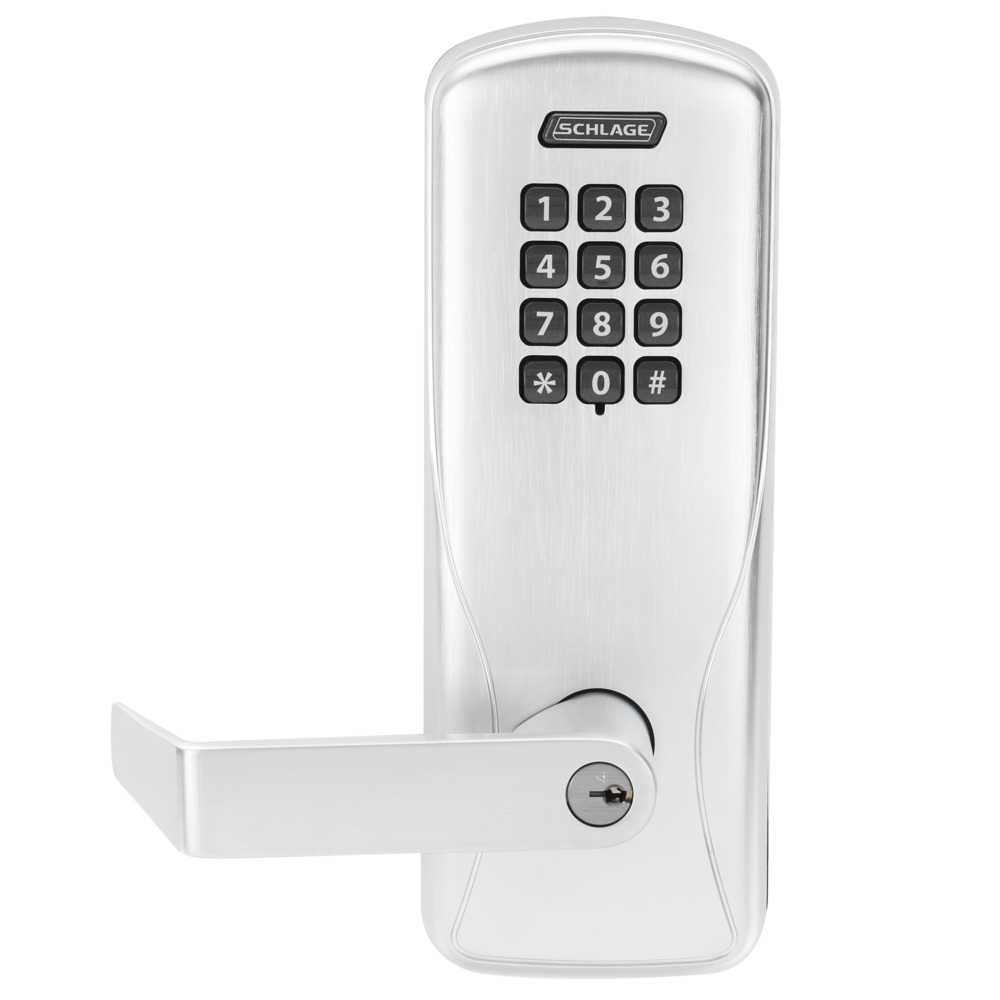

Schlage Electronics CO100-CY-70-KP-RHO-625-P-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock designed for enhanced security and ease of access. This keypad-operated lock accommodates up to 500 users, allowing you to assign unique PIN codes to each individual, thereby minimizing the reliance on mechanical keys. Its conventional cylinder and dead latch mechanism provide robust protection, while the Rhodes lever design adds a touch of elegance to your door hardware. This standalone electronic lock is ideal for commercial applications, offering the advantages of electronic access control without the complexity of a fully networked system. The CO-100 allows for easy programming and PIN code management directly at the door, making it user-friendly for building professionals and knowledgeable homeowners alike. The lock is finished in a bright chrome that enhances durability and aesthetics. Key features include ANSI/BHMA A156.25 certification for outdoor use, a fire rating of 3 hours, and a battery life of up to 2 years with 4 AA batteries. With an ADA-compliant design and easy installation for right-handed doors, the Schlage CO100-CY-70-KP-RHO-625-P-RH is a practical solution for securing classrooms and storerooms while ensuring ease of access for authorized users.
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, Conventional Cylinder, Rhodes Lever, Dead Latch, Bright Chrome Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Brass or Bronze
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design A: RHO - Rhodes Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 625/US26
Finish Description: 625/US26
Finish Family: Polished Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keying: Keyed Different
Keypad Type: Pushbutton
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Of Keys: 2
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 2-15/16"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 625
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 625
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 625
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
