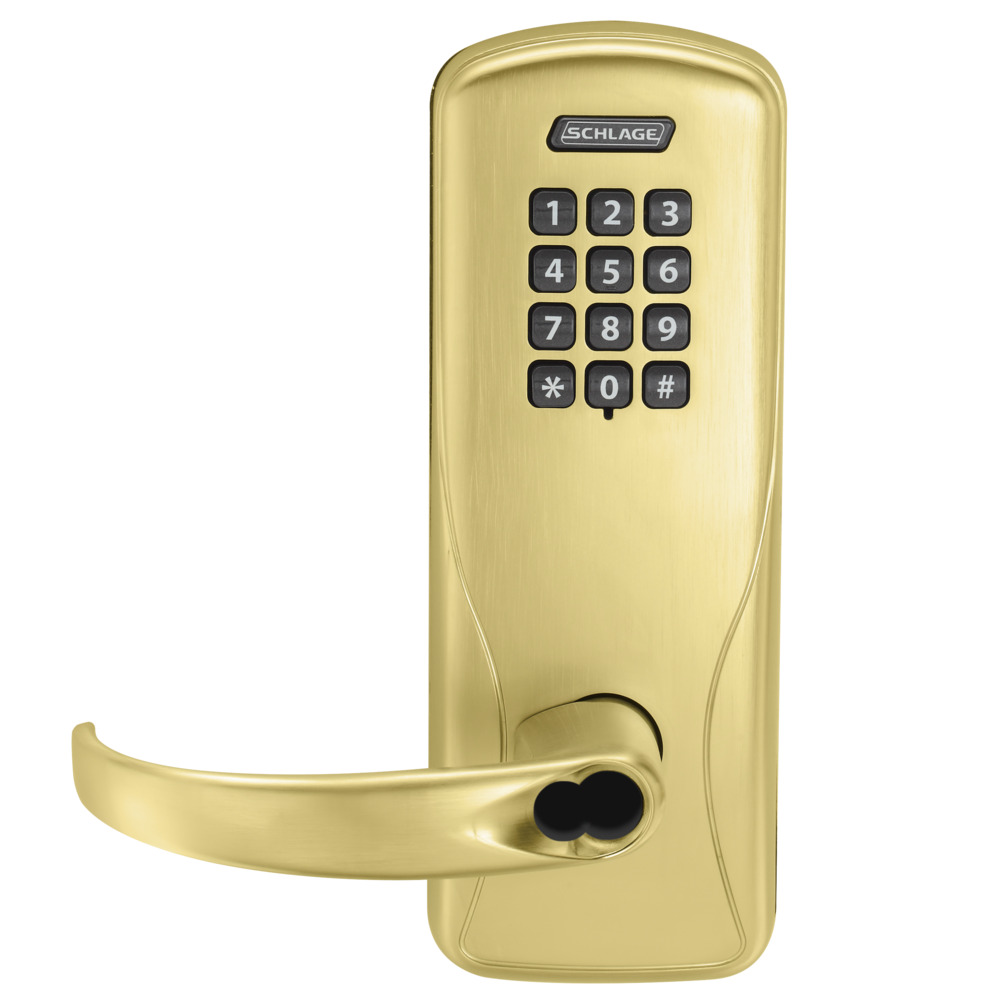

Schlage Electronics CO100-CY-70-KP-SPA-606-B-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock, designed for security-conscious environments that require reliable access control. This robust lock features a keypad that can accommodate up to 500 unique users, allowing for easy management of access rights while minimizing the need for mechanical keys. The CO-100 operates as a standalone unit, making it an excellent choice for those seeking electronic access control without the complexities of a fully networked system. Constructed with a satin brass finish and a stylish Sparta lever, this right-handed lock is not only aesthetically pleasing but also built to withstand the rigors of commercial use. The dead latch mechanism ensures added security, and the lock is ADA compliant for accessibility. With a battery life of up to two years on four AA batteries, maintenance is straightforward. Designed for doors with a thickness of 1-3/4 inches, the CO100 features ANSI/BHMA A156.25 and A156.2 Series 4000 Grade 1 certifications, ensuring superior durability and longevity. Fire-rated for up to three hours, this lock also includes a dead latch type for enhanced protection. With its user-friendly programming and reliable performance, the Schlage Electronics CO100-CY-70-KP-SPA-606-B-RH is the ideal choice for commercial applications where security and convenience are paramount.
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, SFIC Prep Less Core, Sparta Lever, Dead Latch, Satin Brass Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Brass
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Design A: SPA - Sparta Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 606/US4
Finish Description: 606/US4
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 7
Power: 4 AA Batteries
Projection: 3-1/2"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 606
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 606
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 606
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
