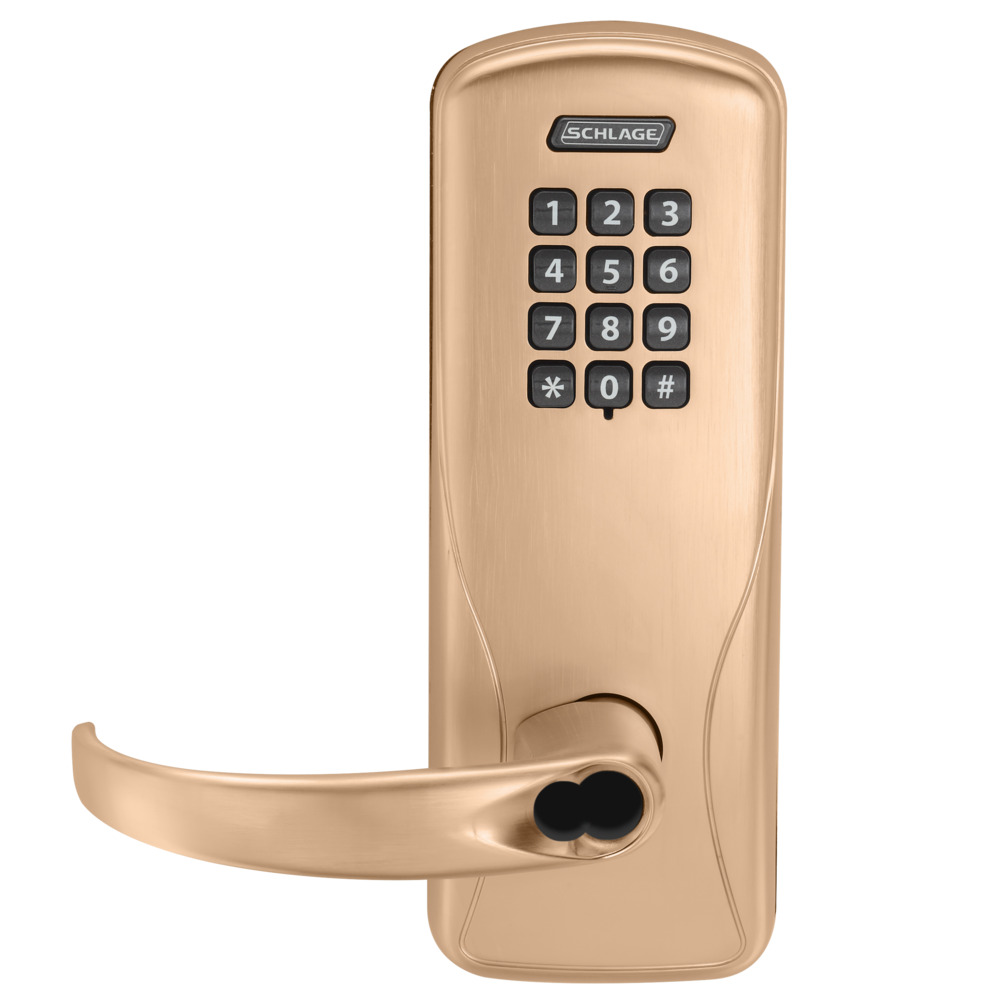

Schlage Electronics CO100-CY-70-KP-SPA-612-B-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock designed to provide superior security with the convenience of electronic access control. This standalone lock accommodates up to 500 users and is manually programmable, making it easy to manage user rights directly at the door. With unique PIN codes assigned to each user, you can significantly reduce the number of mechanical keys issued and enhance the integrity of your key system. Featuring a robust satin bronze clear coated finish and a right-handed Sparta lever design, the CO100 is both aesthetically pleasing and durable. Built for commercial applications, it supports ANSI/BHMA A156.25 certification and offers a fire rating of up to 3 hours. The dead latch mechanism ensures reliable performance, while the integrated keypad reader allows for quick, secure access. Powered by four AA batteries, the lock has a battery life of approximately two years, ensuring minimal maintenance. With its ADA compliance and accessible design, the CO100 is suitable for a wide range of environments. This lock not only meets high security standards but also provides the flexibility needed for modern access control solutions. Choose Schlage for a reliable and efficient locking system that meets your needs with confidence.
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, SFIC Prep Less Core, Sparta Lever, Dead Latch, Satin Bronze Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Bronze
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Design A: SPA - Sparta Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 612/US10
Finish Description: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 7
Power: 4 AA Batteries
Projection: 3-1/2"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 612
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 612
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 612
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
