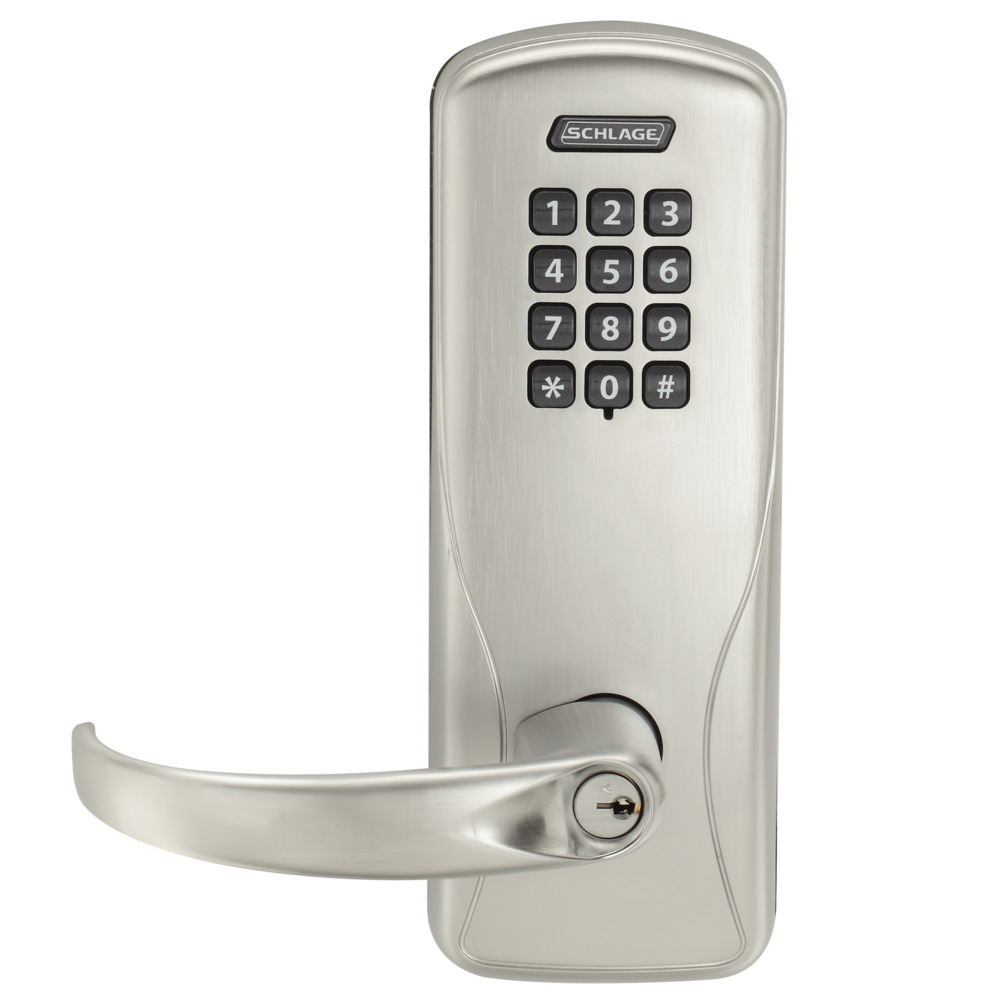

Schlage Electronics CO100-CY-70-KP-SPA-619-P-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock that seamlessly combines security with user-friendly access control. Designed for commercial applications, this electronic lock features a keypad that allows for up to 500 unique users, making it an excellent choice for environments where access needs to be closely monitored. The conventional cylinder and satin nickel plated clear-coated finish ensure both durability and style, while the Sparta lever design adds a modern touch. This standalone lock is manually programmable, enabling administrators to easily add or delete PIN codes at the door, thereby minimizing the issuance of mechanical keys and enhancing the integrity of your key system. With a dead latch mechanism and a fire rating of 3 hours, it not only provides robust security but also peace of mind in the event of an emergency. The CO100 operates on 4 AA batteries with a battery life of up to 2 years, ensuring minimal maintenance. Its right-handed installation and compatibility with 1-3/4" thick doors make it versatile for various applications. Backed by a 2-year limited warranty, this lock is a reliable solution for securing your commercial spaces while adhering to ADA compliance standards.
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, Conventional Cylinder, Sparta Lever, Dead Latch, Satin Nickel Plated Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Brass or Bronze
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design A: SPA - Sparta Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 619/US15
Finish Description: 619/US15
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keying: Keyed Different
Keypad Type: Pushbutton
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Of Keys: 2
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-1/2"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 619
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 619
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 619
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
