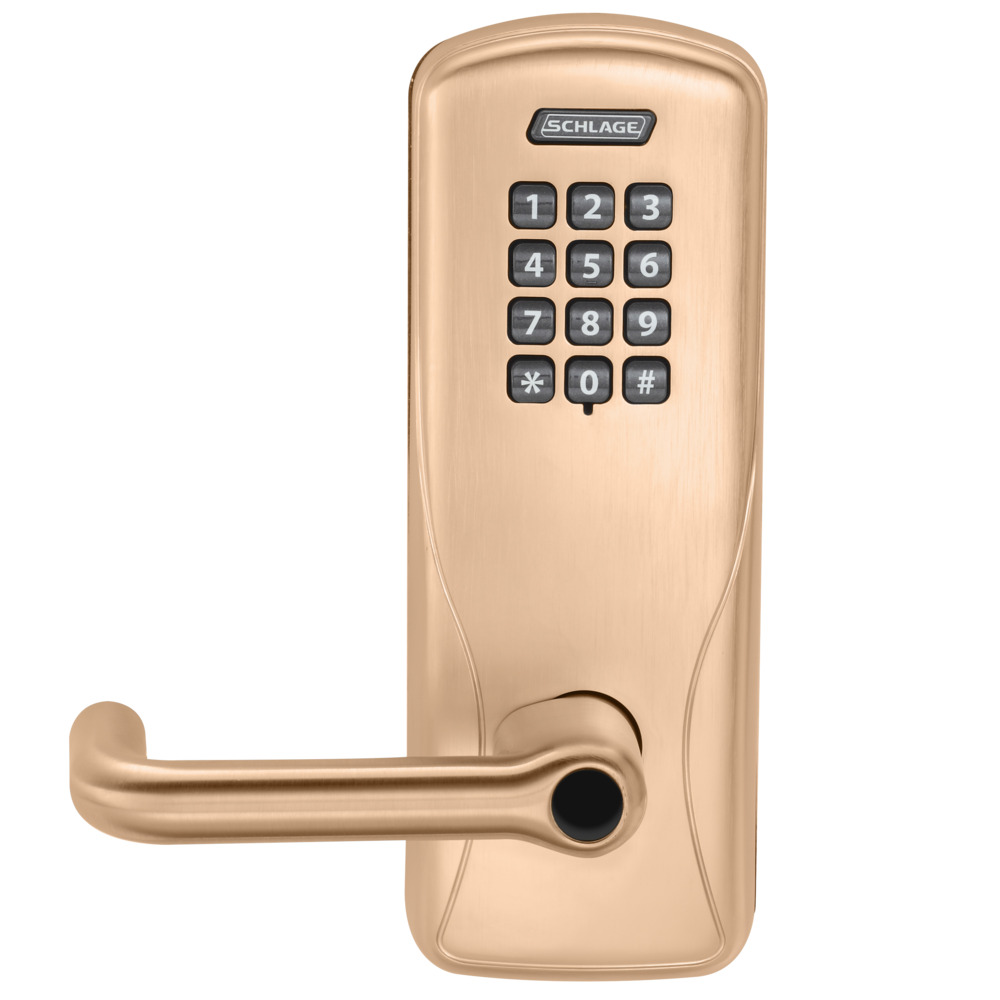

Schlage Electronics CO100-CY-70-KP-TLR-612-L-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock designed for superior security and convenience. With a keypad interface accommodating up to 500 users, this standalone lock eliminates the need for a complex networked system while still providing robust electronic access control. Its unique PIN code system allows for easy assignment and deletion of access rights, enhancing the security of your key system by minimizing the issuance of mechanical keys. Featuring a durable satin bronze clear-coated finish, the CO100 is not only aesthetically pleasing but also built to endure rigorous use. The lock is right-handed and includes a tubular lever design, fitting doors with a thickness of 1-3/4". It operates on 4 AA batteries, offering a 2-year battery life, and is compliant with ADA standards, ensuring accessibility. With a fire rating of 3 hours and ANSI/BHMA A156.25 certification for full outdoor use, this lock provides peace of mind in commercial settings. The dead latch mechanism ensures reliable security, while the keypad reader technology simplifies user access. Choose the Schlage CO100 for a blend of style, functionality, and security in your entryways.
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, Less Conventional Cylinder, Tubular Lever, Dead Latch, Satin Bronze Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Bronze
Battery Life: 2 Years
Bolt Projection: 1/2"
Bolt Throw: 1/2"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Design A: TLR - Tubular Lever
Door Thickness: 1-3/4"
Dust Box: No
Finish: 612/US10
Finish Description: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: TLR - Tubular Lever
Leverknob Design Family: Tubular Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 612
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247 612
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-025 612
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike Dimensions: 4-7/8" x 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
