Schlage CO100-CY-70-KP-TLR-626-L-RH CO100-CY-70-KP-TLR-626-L-RH
Images may not represent actual product and finish

Schlage CO100-CY-70-KP-TLR-626-L-RH CO100-CY-70-KP-TLR-626-L-RH

Your Price: $470.000
Retail Price:$1,175.0000
Your Savings:$705.000(60%)

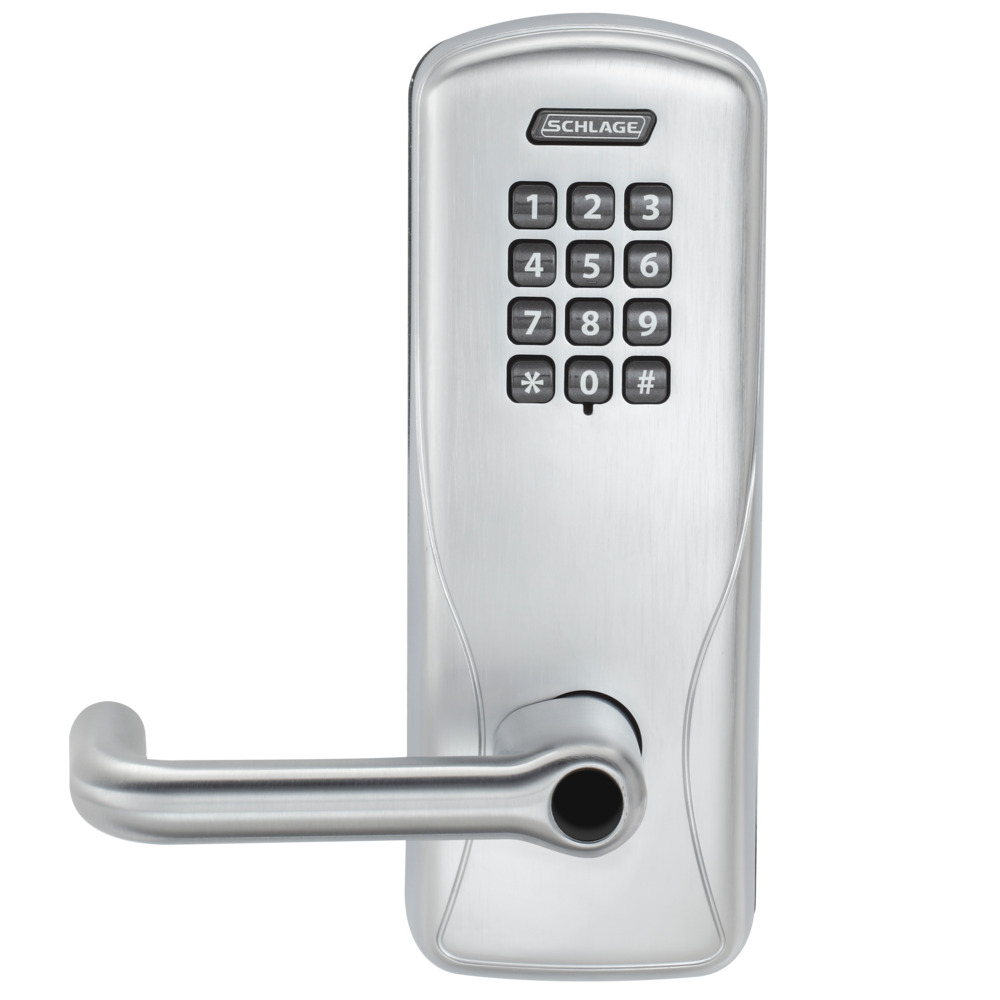

Schlage CO100-CY-70-KP-TLR-626-L-RH: Grade 1 electronic classroom lock with keypad, supports 500 users, satin chrome finish.
Part Number : SCH_CO100CY70KPTLR626LRH
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
Schlage CO100-CY-70-KP-TLR-626-L-RH CO100-CY-70-KP-TLR-626-L-RH

Schlage Electronics CO100-CY-70-KP-TLR-626-L-RH is a Grade 1 Classroom/Storeroom Cylindrical Lock designed for durability and security. This electronic lock features a user-friendly keypad and can accommodate up to 500 unique PIN codes, allowing for easy access management without the need for mechanical keys. The CO-100 operates as a standalone unit, making it an excellent choice for customers who want the convenience of electronic access without the complexity of a fully networked system. Constructed with a satin chrome finish, this right-handed lock blends seamlessly into various commercial environments. It includes a dead latch for added security and is compatible with doors 1-3/4 inches thick. The lock's robust design meets ANSI/BHMA A156.25 standards for full outdoor use and is fire-rated for up to 3 hours, ensuring safety and peace of mind. Powered by four AA batteries, the CO100 boasts a battery life of approximately two years, allowing for minimal maintenance. Its tubular lever design provides both accessibility and ease of use, complying with ADA standards. Perfect for storerooms and classrooms, this lock combines functionality with advanced security features, making it a reliable choice for any professional setting.

CO100-CY-70-KP-TLR-626-L-RH

Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, Less Conventional Cylinder, Tubular Lever, Dead Latch, Satin Chrome Finish, Right-Handed

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.


Attributes

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 250 mA

Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1

Base Material: Brass or Bronze

Battery Life: 2 Years

Bolt Projection: 1/2"

Bolt Throw: 1/2"

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Less Conventional Cylinder

Design A: TLR - Tubular Lever

Door Thickness: 1-3/4"

Dust Box: No

Finish: 626/US26D

Finish Description: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 70-Classroom/Storeroom

Function Family: Storeroom

Grade: Grade 1

Handing: Right-Handed

Installation: Commercial

Keypad Type: Pushbutton

Latch Backset Dim: 2-3/4"

Latch Backset Dimension: 2-3/4"

Leverknob Design: TLR - Tubular Lever

Leverknob Design Family: Tubular Return Lever

Limited Warranty: 2 Years

Lock Platform: Cylindrical Lock with Keypad

Operating Voltage: 4 to 7 VDC

Origin: Mexico

Pack Qty: 1

Pins: 6

Power: 4 AA Batteries

Projection: 3"

Reader Technology: Keypad Reader

Rose Number: 03-042 RHO 626

Roseescutcheon Design: RHO - Rhodes

Roseescutcheon Dimensions: 3-7/16" Diameter

Screws: Combination

Series: CO Series Standalone Electronic Locks

Software Included: No

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 13-247 626

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 1-1/4"

Std Strike Number: 10-025 626

Std Strike Type: ANSI Strike

Std Strike Width: 4-7/8"

Strike Dimensions: 4-7/8" x 1-1/4"

Subtype: Cylindrical Locks with Keypad Trim

Type: Integrated and Pushbutton

Ul Listing: UL 294, ULC S319, UL 10C Listed

Unit of Measure: Each

Users: 500
