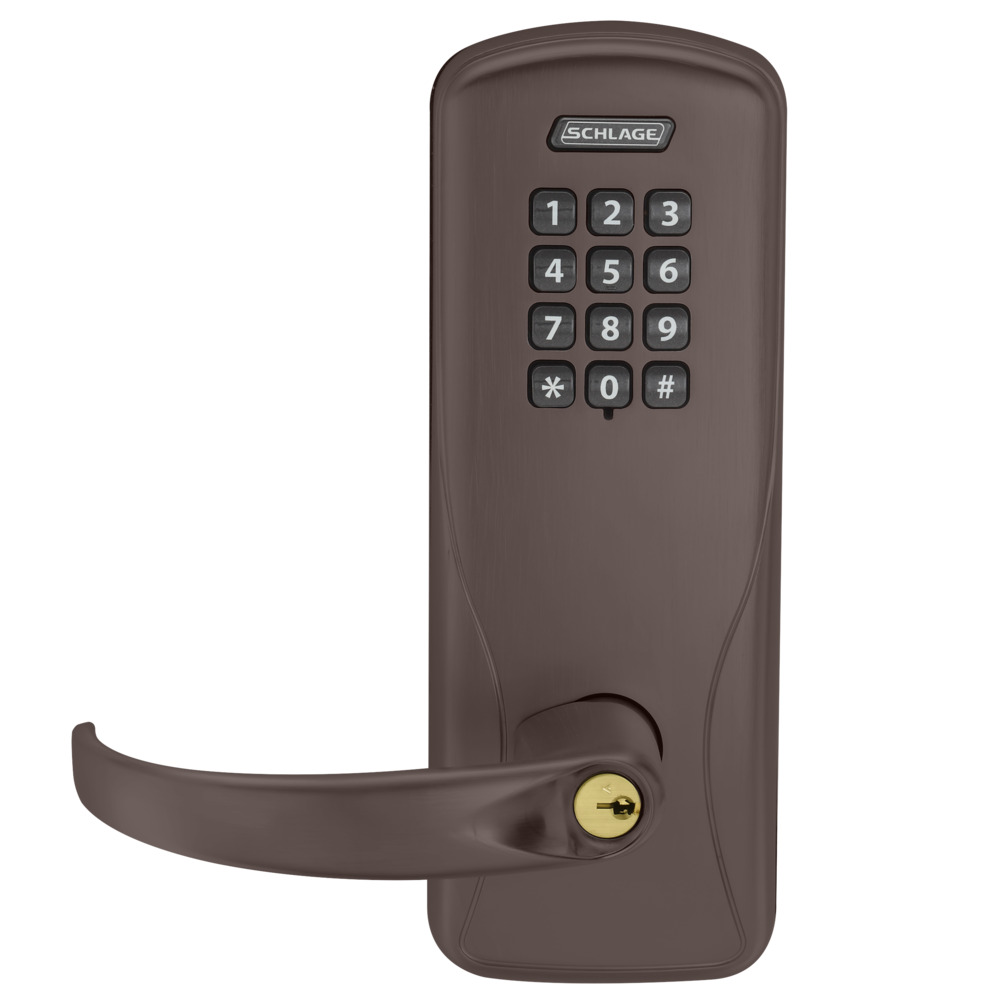

Schlage Electronics CO100-MS-50-KP-SPA-643E-P-RH is a Grade 1 entrance/office mortise lock designed for both security and convenience. This standalone lock features a keypad that supports up to 500 unique users, allowing for tailored access control without the need for a complex network system. The CO-100 is manually programmable, enabling easy addition or deletion of user PIN codes directly at the door, significantly minimizing the reliance on mechanical keys and enhancing your key system's integrity. Crafted from durable steel with an aged bronze finish, this right-handed lock ensures robust performance and aesthetic appeal. The lock is equipped with a spring latch and meets ANSI/BHMA A156.25 standards, making it suitable for commercial applications. Its design accommodates a door thickness of 1-3/4", while the 3/4" bolt throw ensures reliable security. Additionally, the CO100 has a fire rating of 3 hours and is ADA compliant, making it a sensible choice for varied building needs. With a battery life of up to 2 years and powered by 4 AA batteries, this lock is engineered for longevity and ease of use. Choose the Schlage CO100 for an effective blend of modern technology and traditional security.
Grade 1 Entrance/Office Mortise Lock, Keypad, 500 Users, Conventional Cylinder, Sparta Lever, Spring Latch, Aged Bronze Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Steel
Battery Life: 2 Years
Bolt Projection: 3/4"
Bolt Throw: 3/4"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design A: SPA - Sparta Lever
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 643E/US11E
Finish Description: 643E/US11E
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 50-Entrance/Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keying: Keyed Different
Keypad Type: Pushbutton
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Of Keys: 2
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-1/2"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 643E
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 14-049 643E
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-072 643E
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8"
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
