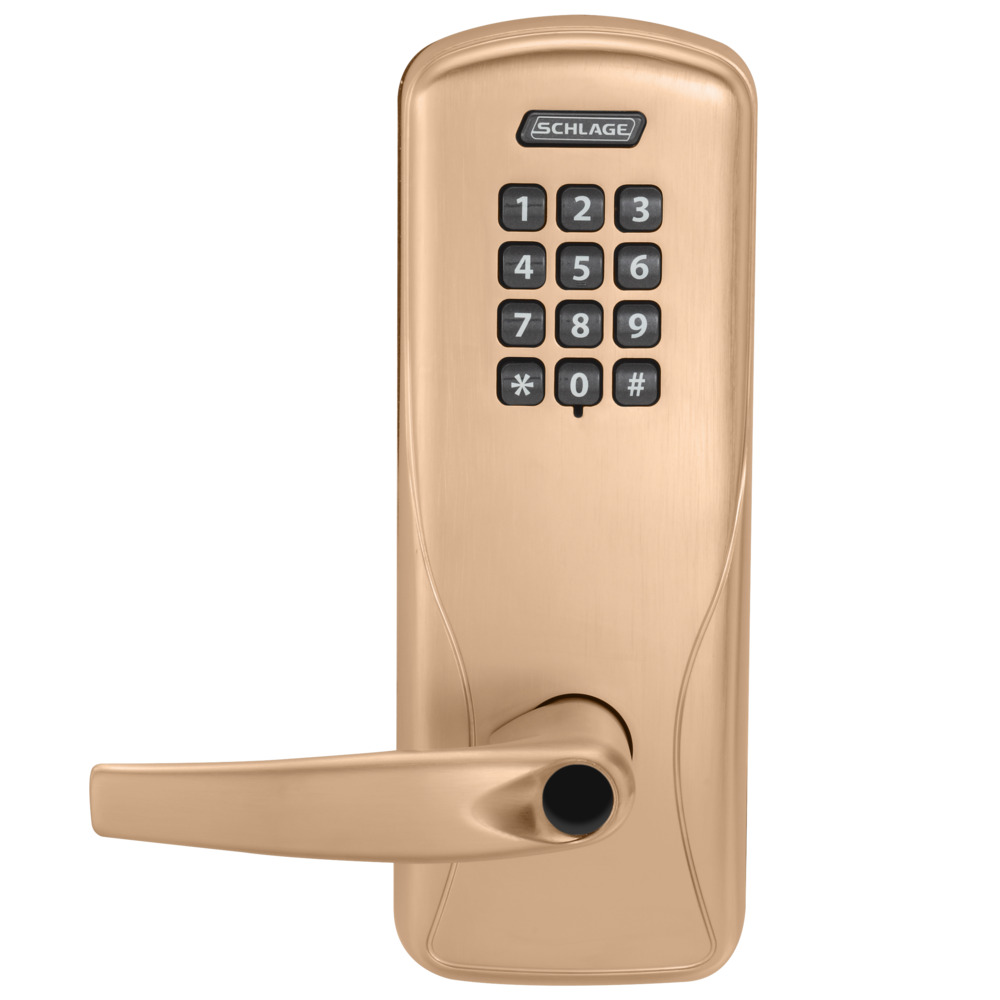

Schlage Electronics CO100-MS-70-KP-ATH-612-L-RH is a Grade 1 classroom and storeroom mortise lock that combines security with convenience. Featuring a keypad capable of accommodating up to 500 unique users, this standalone lock eliminates the complexities of a fully networked system while still providing robust electronic access control. Designed for right-handed doors, it sports the elegant Athens lever and comes in a satin bronze clear-coated finish, ensuring both durability and aesthetic appeal. The CO100 lock is manually programmable, allowing for easy addition or deletion of PIN codes directly at the door, which minimizes the reliance on mechanical keys and enhances the integrity of your key system. With a battery life of up to two years powered by four AA batteries, maintenance is straightforward. This lock is compliant with ADA standards and features a fire rating of up to three hours, making it suitable for commercial applications. It is built to ANSI/BHMA A156.25 standards, ensuring its reliability in demanding environments. The CO100 is designed for doors with a thickness of 1-3/4 inches and has a bolt projection of 3/4 inch. With its combination of advanced features and user-friendly design, the Schlage CO100 is an ideal choice for securing various spaces.
Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, Less Conventional Cylinder, Athens Lever, Spring Latch, Satin Bronze Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Bronze
Battery Life: 2 Years
Bolt Projection: 3/4"
Bolt Throw: 3/4"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Design A: ATH - Athens Lever
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 612/US10
Finish Description: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-5/16"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 612
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 14-049 612
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-072 612
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8"
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
