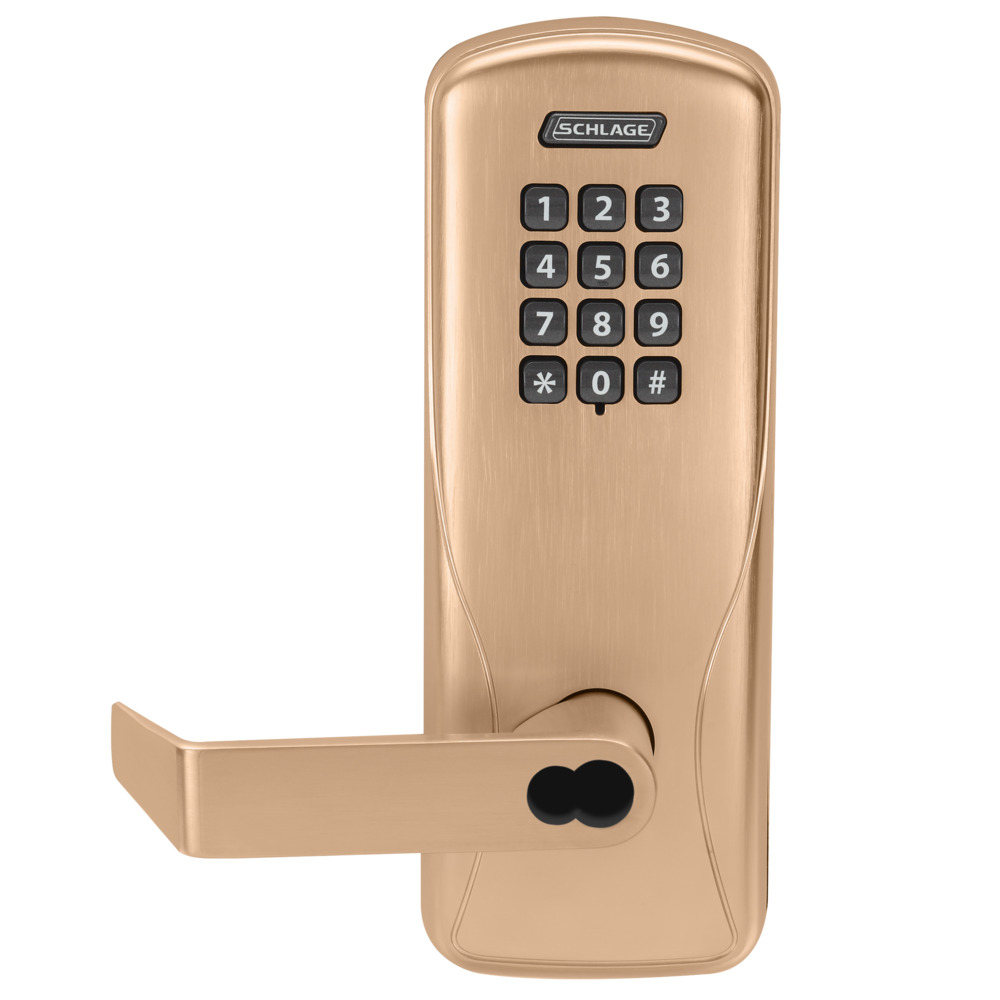

Schlage Electronics CO100-MS-70-KP-RHO-612-B-RH is a Grade 1 Classroom/Storeroom Mortise Lock designed for enhanced security and ease of access. This standalone electronic lock accommodates up to 500 users, allowing you to assign unique PIN codes for each individual, thereby minimizing the need for mechanical keys and protecting the integrity of your key system. With a satin bronze clear coated finish, it seamlessly integrates into various architectural styles while providing a robust solution for both commercial environments and residential applications. The CO-100 features a user-friendly pushbutton keypad that allows for straightforward programming right at the door. This lock is suitable for right-handed installations and is built to withstand demanding conditions, boasting a fire rating of 3 hours. It operates on 4 AA batteries, offering a substantial battery life of up to 2 years, ensuring reliability without frequent maintenance. Constructed with a spring latch and an ANSI/BHMA Grade 1 rating, this lock is designed for durability and security. The CO100 also meets ADA compliance, promoting accessibility for all users. Experience peace of mind with Schlage's CO100-MS-70-KP, a perfect blend of technology and traditional lock security.
Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, SFIC Prep Less Core, Rhodes Lever, Spring Latch, Satin Bronze Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Bronze
Battery Life: 2 Years
Bolt Projection: 3/4"
Bolt Throw: 3/4"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Design A: RHO - Rhodes Lever
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 612/US10
Finish Description: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 7
Power: 4 AA Batteries
Projection: 2-15/16"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 612
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 14-049 612
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-072 612
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8"
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
