Schlage Electronics CO100-MS-70-KP-SPA-605-P-RH offers a robust Grade 1 Classroom/Storeroom Mortise Lock designed for those who prioritize security without the complications of a fully networked system. This standalone lock features a user-friendly keypad that accommodates up to 500 individual users, allowing for unique PIN codes to be assigned to each. This capability minimizes the distribution of mechanical keys, enhancing the integrity of your access control system. User rights are easily programmable and can be updated directly at the door, making it an efficient solution for busy environments. Crafted with a bright brass finish and a stylish Sparta lever, the CO100 is both functional and aesthetically pleasing. It is ADA compliant and features a 3-hour fire rating, ensuring safety and accessibility. With a durable brass base material and a spring latch mechanism, this lock offers reliable performance. The CO100 operates on 4 AA batteries, providing a battery life of up to two years for hassle-free maintenance. Designed for commercial use, it fits doors with a thickness of 1-3/4 inches and includes a conventional cylinder for added security. With its combination of strength, convenience, and elegant design, the Schlage CO100 is an ideal choice for any professional setting.

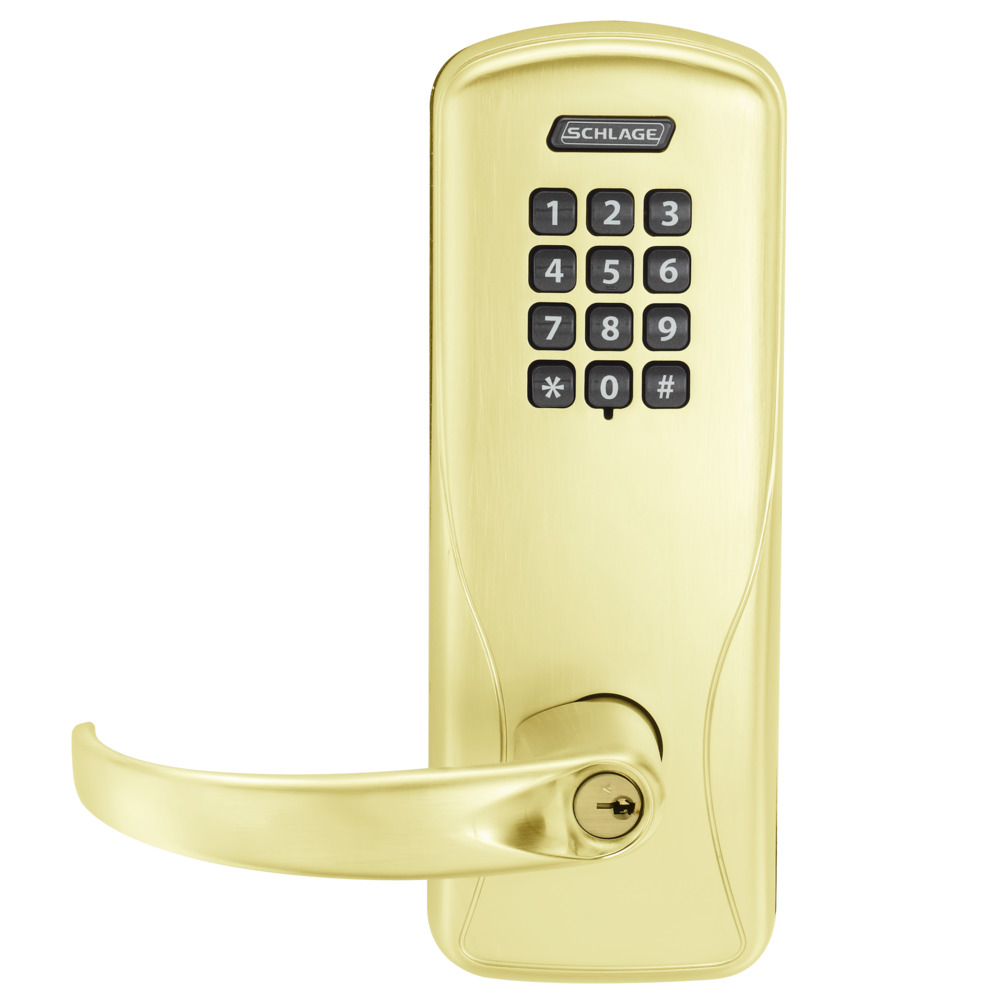

Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, Conventional Cylinder, Sparta Lever, Spring Latch, Bright Brass Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Brass
Battery Life: 2 Years
Bolt Projection: 3/4"
Bolt Throw: 3/4"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design A: SPA - Sparta Lever
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 605/US3
Finish Description: 605/US3
Finish Family: Polished Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keying: Keyed Different
Keypad Type: Pushbutton
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Of Keys: 2
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-1/2"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 605
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 14-049 605
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-072 605
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8"
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
