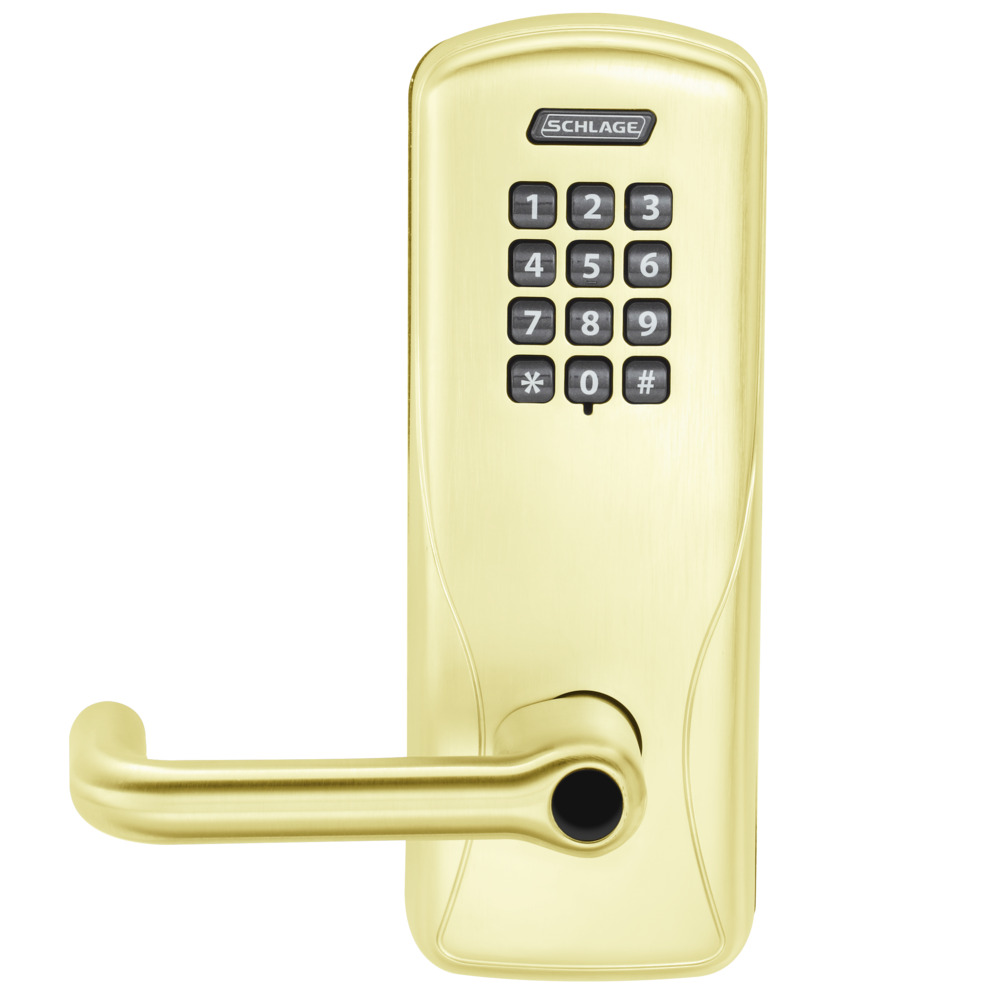

Schlage Electronics CO100-MS-70-KP-TLR-605-L-RH is a Grade 1 Classroom/Storeroom Mortise Lock that seamlessly combines security and convenience with its advanced keypad functionality. Designed for commercial applications, this lock supports up to 500 unique users, allowing easy management of access rights through manually programmable PIN codes. This feature minimizes the need for mechanical keys, significantly enhancing the security of your key system. The CO-100 is constructed with a spring latch and a polished brass finish, providing durability and aesthetic appeal. Its right-handed design ensures a perfect fit for compatible doors, while the mortise lock platform guarantees robust security. This electronic lock operates on 4 AA batteries, boasting a battery life of up to two years, making it a reliable choice for high-traffic areas. With a fire rating of three hours and ADA compliance, the CO100-MS-70-KP-TLR-605-L-RH is designed for safety and accessibility. Its user-friendly keypad allows for easy code management right at the door, making it an ideal solution for educational institutions, offices, and storerooms. Trust Schlage Electronics to deliver a secure and efficient locking solution tailored to your needs.
Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, Less Conventional Cylinder, Tubular Lever, Spring Latch, Bright Brass Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Brass
Battery Life: 2 Years
Bolt Projection: 3/4"
Bolt Throw: 3/4"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Design A: TLR - Tubular Lever
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 605/US3
Finish Description: 605/US3
Finish Family: Polished Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: TLR - Tubular Lever
Leverknob Design Family: Tubular Return Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 605
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 14-049 605
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-072 605
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8"
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
