Schlage CO100-MS-70-KP-TLR-643E-L-RH CO100-MS-70-KP-TLR-643E-L-RHSchlage Electronics CO100-MS-70-KP-TLR-643E-L-RH delivers a robust security solution with its Grade 1 Classroom/Storeroom Mortise Lock. Designed for commercial applications, this electronic lock features a user-friendly keypad that supports up to 500 unique PIN codes, allowing for easy management of access rights without the burden of conventional keys. The lock's durable construction includes a steel base material and an aged bronze finish, ensuring both longevity and aesthetic appeal. The CO-100 is a standalone system, simplifying installation and operation while enhancing security. Users can effortlessly add or delete PIN codes directly at the door, minimizing the risk associated with lost or stolen keys. Its spring latch mechanism, combined with a tubular lever design, offers smooth functionality and ease of use. Designed with accessibility in mind, the lock complies with ADA standards and features a right-handed handing suitable for various door configurations. With a fire rating of up to 3 hours, it meets rigorous safety standards, making it ideal for educational and storeroom settings. Powered by four AA batteries, it boasts a battery life of up to two years, ensuring reliable performance. The Schlage Electronics CO100-MS-70-KP-TLR-643E-L-RH is the perfect choice for those seeking a blend of security, convenience, and style.
CO100-MS-70-KP-TLR-643E-L-RH

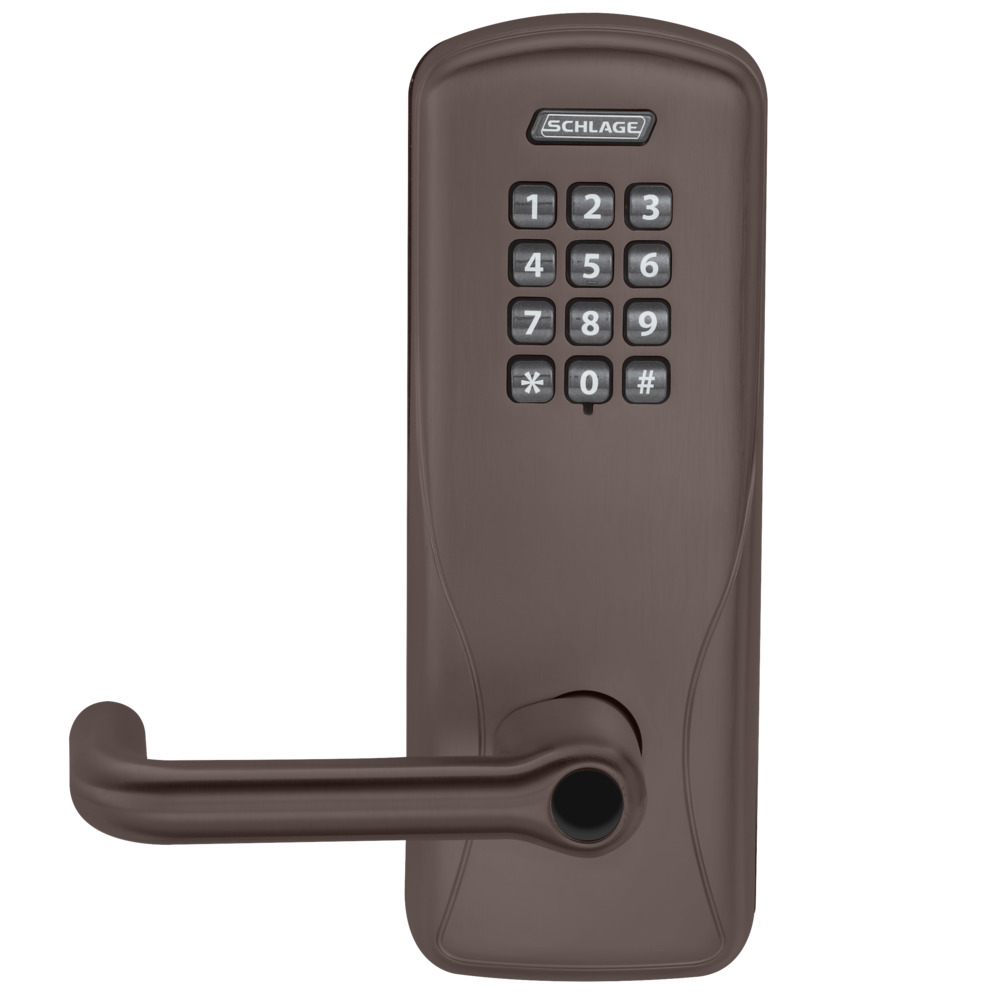

Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, Less Conventional Cylinder, Tubular Lever, Spring Latch, Aged Bronze Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Attributes
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Steel
Battery Life: 2 Years
Bolt Projection: 3/4"
Bolt Throw: 3/4"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Design A: TLR - Tubular Lever
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 643E/US11E
Finish Description: 643E/US11E
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Leverknob Design: TLR - Tubular Lever
Leverknob Design Family: Tubular Return Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3"
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 643E
Roseescutcheon Design: RHO - Rhodes
Roseescutcheon Dimensions: 3-7/16" Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 14-049 643E
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4"
Std Strike Number: 10-072 643E
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8"
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
