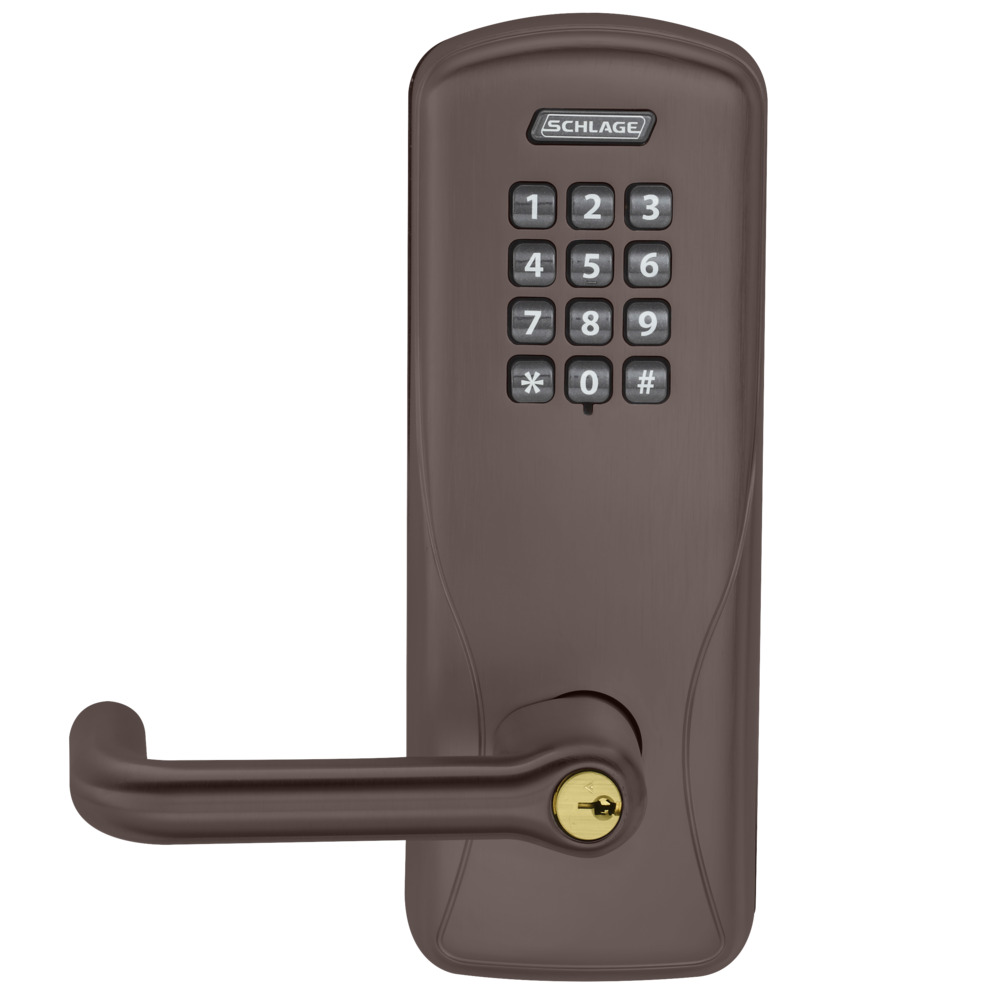

Schlage CO100-MS-70-KP-TLR-643E-P-RH CO100-MS-70-KP-TLR-643E-P-RH
Images may not represent actual product and finish

Schlage CO100-MS-70-KP-TLR-643E-P-RH CO100-MS-70-KP-TLR-643E-P-RH

Your Price: $686.000
Retail Price:$1,715.0000
Your Savings:$1,029.0000(60%)
Schlage CO100-MS-70-KP-TLR is a Grade 1 electronic mortise lock with keypad access for up to 500 users.
Part Number : SCH_CO100MS70KPTLR643EPRH
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
*
Schlage CO100-MS-70-KP-TLR-643E-P-RH CO100-MS-70-KP-TLR-643E-P-RH

Schlage Electronics CO100-MS-70-KP-TLR-643E-P-RH is a Grade 1 Classroom/Storeroom Mortise Lock designed to enhance security while providing convenient access control. With a capacity for 500 users, this keypad lock allows for unique PIN codes to be assigned, minimizing the reliance on mechanical keys and ensuring the integrity of your key system. The CO-100 is a standalone lock, manually programmable, making it a cost-effective solution without the complexity of networked systems. Constructed from durable steel and finished in an elegant aged bronze, this lock not only meets ANSI/BHMA A156.25 standards for full outdoor use but also boasts a 3-hour fire rating, enhancing safety. The tubular lever design ensures ease of operation, and its right-handed configuration makes it suitable for a variety of commercial applications. Battery-operated with a lifespan of up to 2 years, the lock utilizes 4 AA batteries, making maintenance straightforward. Installation is compatible with doors 1-3/4" thick, and with features like ADA compliance and an accessible design, the CO100 is ideal for both professionals and homeowners seeking reliability and security in their premises.

CO100-MS-70-KP-TLR-643E-P-RH

Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, Conventional Cylinder, Tubular Lever, Spring Latch, Aged Bronze Finish, Right-Handed

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.


Attributes

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 250 mA

Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1

Base Material: Steel

Battery Life: 2 Years

Bolt Projection: 3/4"

Bolt Throw: 3/4"

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Conventional Cylinder

Design A: TLR - Tubular Lever

Door Thickness: 1-3/4"

Dust Box: Plastic

Finish: 643E/US11E

Finish Description: 643E/US11E

Finish Family: Dark Bronze

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 70-Classroom/Storeroom

Function Family: Storeroom

Grade: Grade 1

Handing: Right-Handed

Installation: Commercial

Keying: Keyed Different

Keypad Type: Pushbutton

Keys: Cut

Latch Backset Dim: 2-3/4"

Latch Backset Dimension: 2-3/4"

Leverknob Design: TLR - Tubular Lever

Leverknob Design Family: Tubular Return Lever

Limited Warranty: 2 Years

Lock Platform: Mortise Lock with Keypad

Of Keys: 2

Operating Voltage: 4 to 7 VDC

Origin: Mexico

Pack Qty: 1

Pins: 6

Power: 4 AA Batteries

Projection: 3"

Reader Technology: Keypad Reader

Rose Number: 03-042 RHO 643E

Roseescutcheon Design: RHO - Rhodes

Roseescutcheon Dimensions: 3-7/16" Diameter

Screws: Combination

Series: CO Series Standalone Electronic Locks

Software Included: No

Std Keyway: Schlage C

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 14-049 643E

Std Latch Type: Spring Latch (Unguarded)

Std Strike Height: 1-1/4"

Std Strike Number: 10-072 643E

Std Strike Type: Mortise Strike

Std Strike Width: 4-7/8"

Subtype: Mortise Locks with Keypad Trim

Type: Integrated and Pushbutton

Ul Listing: UL 294, ULC S319, UL 10C Listed

Unit of Measure: Each

Users: 500
