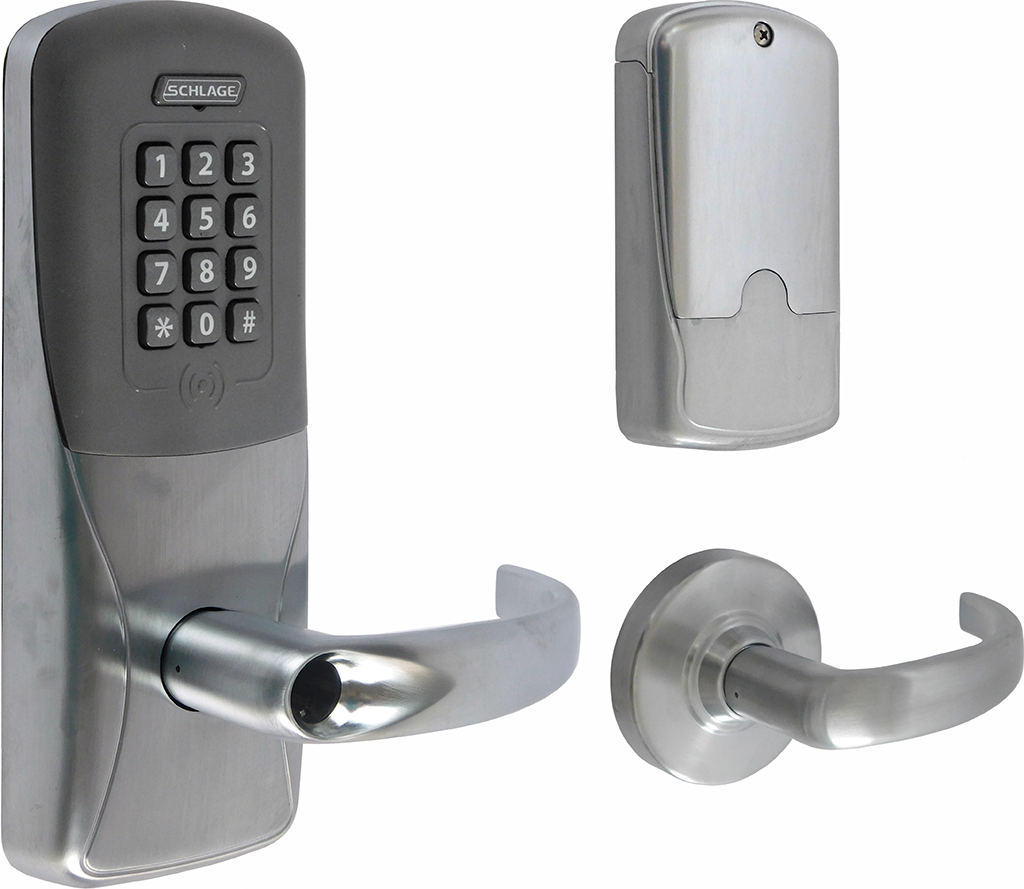

Schlage Electronic Security CO200-CY70PRK-SPA626 LD Standalone Proximity and Keypad Classroom/Storeroom Cylindrical Lock offers a robust blend of security and convenience tailored for modern facilities. This Grade 1 lock features a Sparta lever design and is specifically engineered for classroom and storeroom applications, ensuring reliable access control without the intricacy of a fully networked system. With the ability to support up to 2,000 users and maintain a comprehensive audit trail of up to 2,000 records, this lock allows for efficient user management. Users can easily add or delete access rights directly at the lock, streamlining operations. The CO200 can be programmed via computer or manually, and it operates on standard 4 AA batteries, providing an impressive battery life of up to two years. The lock is designed with ANSI strike compatibility and offers field-reversible handing, making it adaptable to various door configurations. It also features tri-colored LED indicators and audible prompts for clear communication of lock status. With its durable satin chrome finish and advanced security features, the Schlage CO200 is the perfect choice for institutions looking to enhance their security measures while maintaining ease of use.

Standalone Proximity and Keypad Classroom/Storeroom Cylindrical Lock, Computer or Manually Programmed, Users Rights Stored on Lock, Sparta Lever, Less Cylinder, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

The CO series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-200 is computer or manually programmable with users rights stored on the lock. The Schlage utility software (SUS) mobile app on compatible Android devices is used in conjunction with your access control software and allows you to easily add or delete users and retrieve audits. By issuing electronic credentials you can minimize the number of mechanical keys issued which protects the integrity of your key system. A variety of credential readers are also available including keypad only, magnetic stripe, and proximity. The magnetic stripe and proximity readers are also available with keypad for the added security of dual authentication. Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types. The CO series is also compatible with many popular brands and types of exit devices. The CO series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO series is ANSI/BHMA A156.25, ANSI/BHMA grade 1 certified and UL 294 listed.

Features:

• Computer programmable with audit trail
• Up to 2,000 users and up to 2,000 audits. Depending on access control software.
• Up to 32 holidays and 16 time zones. Depending on access control software.
• User rights stored on the lock
• The ability to add and delete users at the lock
• Available in cylindrical, mortise, mortise deadbolt, and exit trim
• Compatible with major brands of key systems and exit devices
• Classroom/storeroom, office, and privacy functions available
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after February 2019 with firmware version CO.A.30 or higher.
• LED indicator visually communicates lock status

Electronic Lock Specifications:

• Users: Up to 2,000
• Audits: Up to 2,000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LED’s and audible indicators
• Power supply: 4 AA batteries (standard off the shelf: included)
• Voltage range: 4 VDC to 7 VDC
• Battery life: Up to 2 yrs with 4AA batteries
• Operating temperature: Exterior: -31° to 151°F (-35° to 66°C)
• Operating temperature: Interior: 32° to 120°F (0° to 49°C) due to batteries
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25; ANSI/BHMA grade 1; UL 294; ULC S319; UL 10C 3 hour; FCC Part 15; industry Canada (IC); ADA compliant

Mechanical Specifications:

• Handing: Handed to order, field reversible
• Door Thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Latch Bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8"
• Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 70: Storeroom

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Dummy exit trim

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial

Resources

• Cut Sheet
